ICEpower 100AS2 Class D Amplifier Module with Built-In Power Supply 2 x 100W

ICEpower
Part #326-262

ICEpower 100AS2 Class D Amplifier Module with Built-In Power Supply 2 x 100W

ICEpower
Part #326-262
Model: 100AS2

ICEpower's 100AS2 contains a fly back power supply with a 2 x 105W RMS class D amplifier. The 100AS2 is perfect for applications such as stereo hi-fi and home automation amplifiers, active speakers, studio monitors as well as 2-channel guitar or bass amplifiers without the need of a fan.

Key Features
  • AC plug-to-speaker amplification audio solution offering flexible 2 x 100W output all-in-one mini-PC board
  • Built-in circuits for shorts, over-current, and thermal protection
  • No noisy fan needed
  • High current output stages, designed to comfortably drive any speaker load from 3 ohms and up
  • Perfect size and wattage for active bookshelf, computer, or satellite home theater speakers
  • Power supply automatically adjusts from 85~264 VAC for worldwide versatility
Your Price: $139.98
+ FREE SHIPPING
Bulk Pricing
Order in the next 0 hr 13 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ICEpower 100AS2 Class D Amplifier Module with Built-In Power Supply 2 x 100W

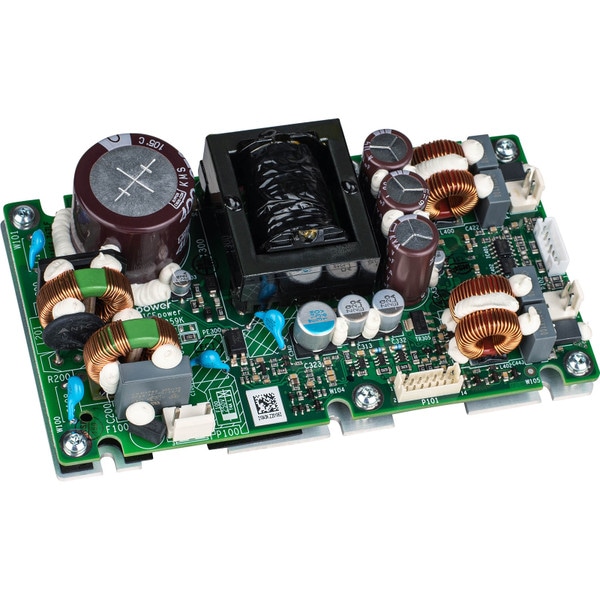

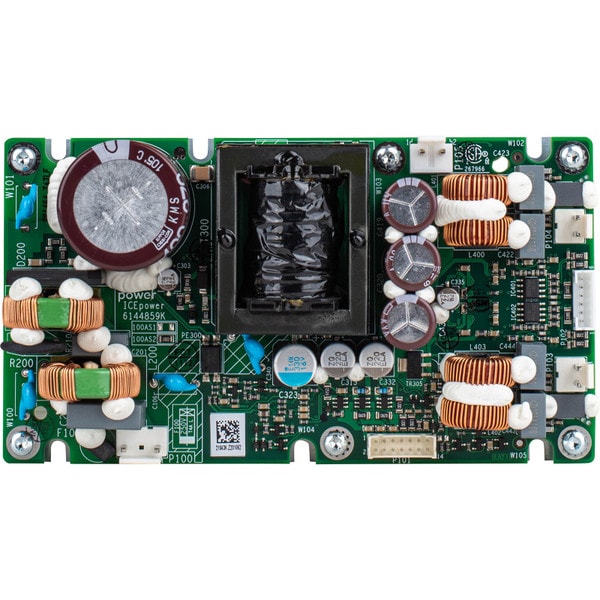

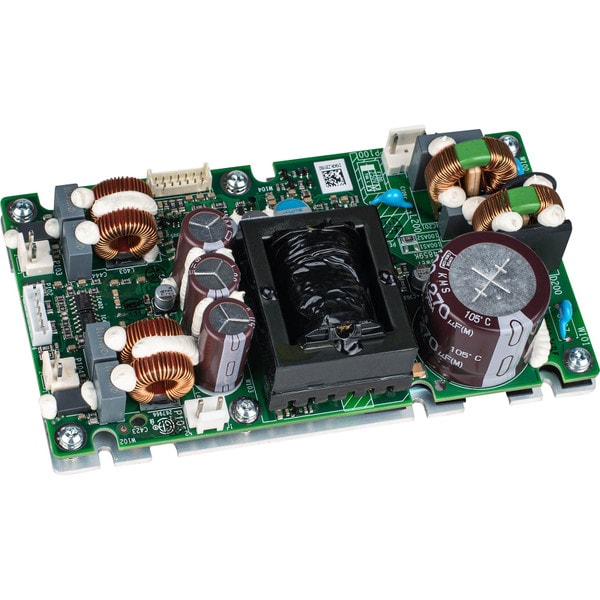

All-In-One Fanless AMP & Power Supply Board



The 100AS2 sets a new industry benchmark in audio performance, efficiency, and power density, made possible by adapting the very latest ICEpower technological advances. Its mini size foot print, 2 x 100W, and fanless design creates limitless possibilities for small active 2-way, or 2-channel speaker creations that pack-a-punch. With the optional wiring harness bundle, sold separately, create bass amplifiers, subwoofers, stereo home automation and hi-fi amplifiers as well as industrial applications. Add a Bluetooth receiver board (sold separately) for wireless audio projects. The rugged construction keeps the music playing for years even when moving from place-to-place. There are endless possibilities using this compact, combination power supply 2 x 100W amp board for your next audio project.

ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This makes it easier than ever to acquire ICEpower amp modules for your projects, and continental USA DIYs and OEMs save money by eliminating international shipping cost.

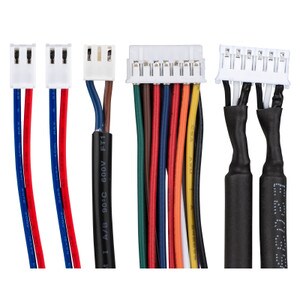

Note:Requires the 326-194 ICEpower Amplifier Module 100AS2 Wiring Harness Kitfor full stand-alone functionality (sold separately).

Specifications: • Power output: 2 x 100W RMS @ 4 ohms 1% THD+N, 20-20,000 Hz • Frequency response: 20-20,000 Hz • Dynamic range: 109 dBA • Total efficiency: 72% @ 100W, 4 ohm • Unregulated auxiliary power supply: +8 and +/- 17 VDC @ 200 mA • Input voltage: 100~240 VAC 50/60 Hz • Maximum output current limit: 12.5A • Dimensions: 5.51" W x 3.03" D x 1.44" H (140 x 77 x 36.5 mm).

Product Details

BrandICEpower
Model100AS2
Part Number326-262
UPC848864074375
Unit of MeasureEach
Weight1.7

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)51 - 100 Watts
