ICEPower 300AS1 Class D Amplifier Module with Built-In Power Supply 1 x 300W

ICEpower
Part #326-264

ICEPower 300AS1 Class D Amplifier Module with Built-In Power Supply 1 x 300W

ICEpower
Part #326-264
Model: 300AS1
The 300AS1 combines an efficient forward type power supply with a 1x 300W high quality class D amplifier.
Key Features
  • ICEpower's patented COM modulation and MECC control techniques ensure excellent audio performance
  • Power supply and amp board built into one small PC board
  • Integrated ICEpower supply with separate AUX and standby functionality makes for a compact, turnkey power solution
  • Plug-and-play JST connectors and optional 300A1 amp modules for a wide range of speaker and amplifier applications
  • 50 VDC and 12 VDC output for powering 300A1 and preamp boards
  • Quiet running fanless operation
  • High current output stages, designed to comfortably drive any speaker load from 2.5 ohms and up
Your Price: $149.98
+ FREE SHIPPING
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ICEPower 300AS1 Class D Amplifier Module with Built-In Power Supply 1 x 300W

All-In-One Fanless AMP & Power Supply Board

The 300AS1 combines an efficient forward type power supply with a 1x 300W high quality class D amplifier. It includes a DC hanger bus for powering up to two 300A1 hanger amplifiers. On its own it is therefore perfect for single channel applications such as subwoofers, bass and guitar amplifiers. Combined with 300A1 hanger amplifiers, it can be used for 2- and 3-way PA speakers, studio monitors, hi-fi, and home automation amplifiers.

ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This makes it easier than ever to acquire ICEpower amp modules for your projects, and continental USA DIYs and OEMs save money by eliminating international shipping cost.

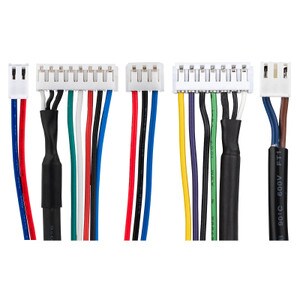

Note:Requires the 326-196 ICEpower Amplifier Module 300AS1 Wiring Harness Kitfor full stand-alone functionality (sold separately).

Specifications: • Wattage output: 1 x 300W RMS @ 4 ohms 1% THD+N, 20-20,000 Hz • Frequency response: 20-20,000 Hz all loads • Dynamic range: 113 dB • Total efficiency: 73% @ 300W 4 ohm 115 VAC • DC-Bus: 50 VDC @20A and +/-12 VDC @ 0.4A maximum • Input voltage: 100~240 VAC 50/60 Hz • Maximum output current limit: 20A • Dimensions: 5.91" W x 4.22" D x 1.6" H.

Product Details

BrandICEpower
Model300AS1
Part Number326-264
UPC848864074382
Unit of MeasureEach
Weight1.8

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)101 - 250 Watts

Specifications
