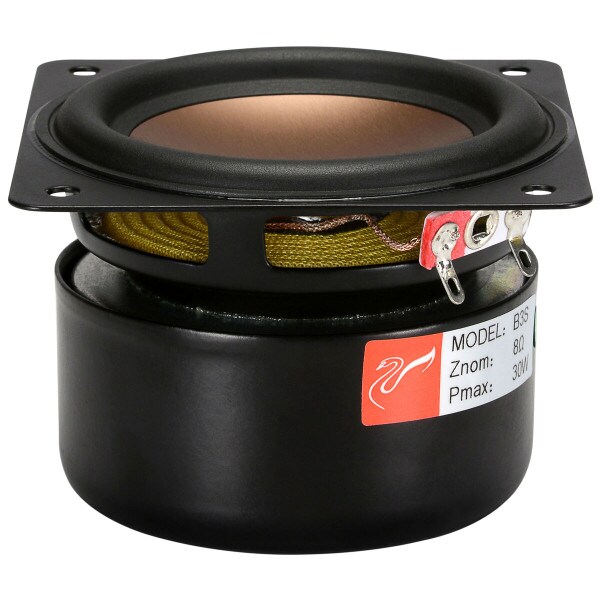

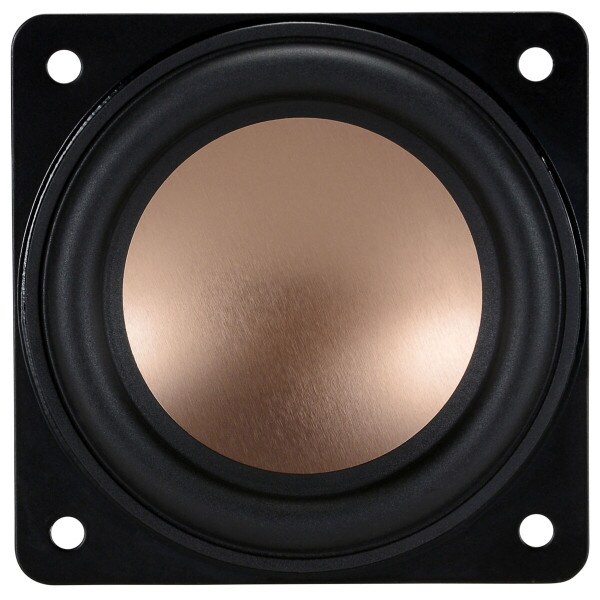

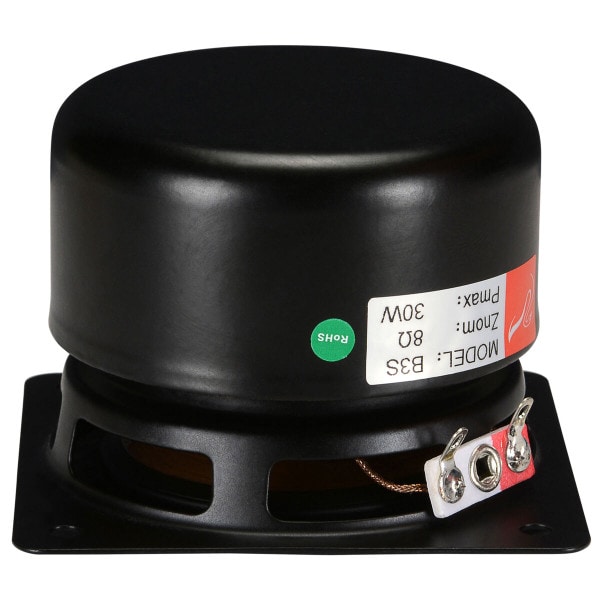

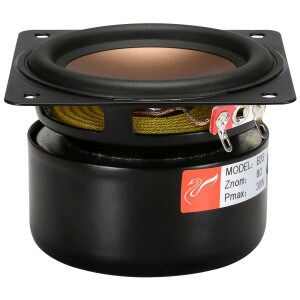

Magnesium/aluminum alloy concave cones and square frames are the distinguishing features of the BS series. The B3S 3" full-range speaker's magnetically shielded design allows use in center channel and other multimedia applications. HiVi's Symmetric Motor Drive (SMD) technology reduces the voice coil's inductance modulation and back EMF, thereby improving the speaker's controllabilty and achieving impressively low distortion. Stamped steel frame and rubber surround. These drivers are capable of covering a wide portion of the audio spectrum, and are easy to install without the need for cutting complicated driver recesses.
Product Details | |
|---|---|
| Brand | HiVi |
| Model | B3S |
| Part Number | 297-427 |
| UPC | 844632022999 |
| Unit of Measure | Each |
| Weight | 1.5 |
Product Specifications | |
|---|---|
| Nominal Diameter | 3" |
| Power Handling (RMS) | 15 Watts |
| Power Handling (MAX) | 30 Watts |
| Impedance | 8Ω |
| Frequency Response | 300 to 15,000Hz |
| Sensitivity | 82dB 2.83V/1m |
| Voice Coil Diameter | 0.75" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 100Hz |
| DC Resistance (Re) | 6.5Ω |
| Mechanical Q (Qms) | 3.75 |
| Electromagnetic Q (Qes) | 1.15 |
| Total Q (Qts) | 0.88 |
| Compliance Equivalent Volume (Vas) | 0.04ft³ |
| Mechanical Compliance of Suspension (Cms) | 0.99mm/N |
| BL Product (BL) | 3.06T·m |
| Diaphragm Mass Inc. Airload (Mms) | 2.6g |
| Maximum Linear Excursion (Xmax) | 3mm |
| Surface Area of Cone (Sd) | 30cm² |
Materials of Construction | |
|---|---|
| Cone Material | Aluminum / Magnesium |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Kapton® / Polyimide |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 3" |
| Baffle Cutout Diameter | 2.75" |
| Depth | 2.13" |
| # Mounting Holes | 4 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.1ft³ |
| Sealed F3 | 98.4Hz |
| Vented Volume | 0.2ft³ |
| Vented F3 | 74Hz |
