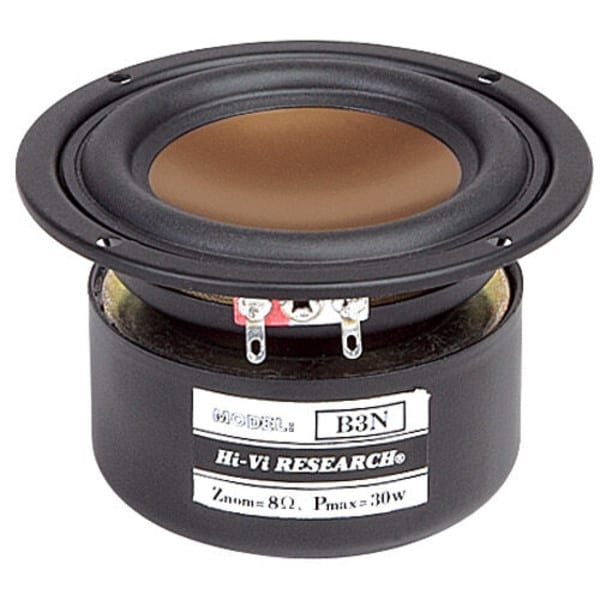

Bronze/aluminum alloy cones, rubber surrounds, cosmetic steel frames, and shielded motor structures are the distinguishing features of the HiVi B Series full-range speakers. These drivers are capable of covering a wide portion of the audio spectrum, and the magnetically shielded design allows use in center channel and other multimedia applications.
Product Details | |
|---|---|
| Brand | HiVi |
| Model | B3N |
| Part Number | 297-428 |
| UPC | 844632024962 |
| Unit of Measure | Each |
| Weight | 1.2 |
Product Specifications | |
|---|---|
| Nominal Diameter | 3" |
| Power Handling (RMS) | 10 Watts |
| Power Handling (MAX) | 30 Watts |
| Impedance | 8Ω |
| Frequency Response | 80 to 12,000Hz |
| Sensitivity | 81dB 2.83V/1m |
| Voice Coil Diameter | 0.75" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 77Hz |
| DC Resistance (Re) | 6.5Ω |
| Mechanical Q (Qms) | 4.48 |
| Electromagnetic Q (Qes) | 1.07 |
| Total Q (Qts) | 0.86 |
| Compliance Equivalent Volume (Vas) | 0.06ft³ |
| Mechanical Compliance of Suspension (Cms) | 1.32mm/N |
| BL Product (BL) | 3.1T·m |
| Diaphragm Mass Inc. Airload (Mms) | 3.2g |
| Maximum Linear Excursion (Xmax) | 3mm |
| Surface Area of Cone (Sd) | 30cm² |
Materials of Construction | |
|---|---|
| Cone Material | Aluminum |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Kapton® / Polyimide |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 3.5" |
| Baffle Cutout Diameter | 2.875" |
| Depth | 2.125" |
| # Mounting Holes | 4 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.13ft³ |
| Sealed F3 | 77.6Hz |
| Vented Volume | 0.26ft³ |
| Vented F3 | 57.2Hz |
