CLEARANCE HDMI 2.0 4K 60 Hz Super Slim 4x4 Matrix Switch with RS-232 and Ethernet

Parts Express
Part #180-1134

CLEARANCE HDMI 2.0 4K 60 Hz Super Slim 4x4 Matrix Switch with RS-232 and Ethernet

Parts Express
Part #180-1134

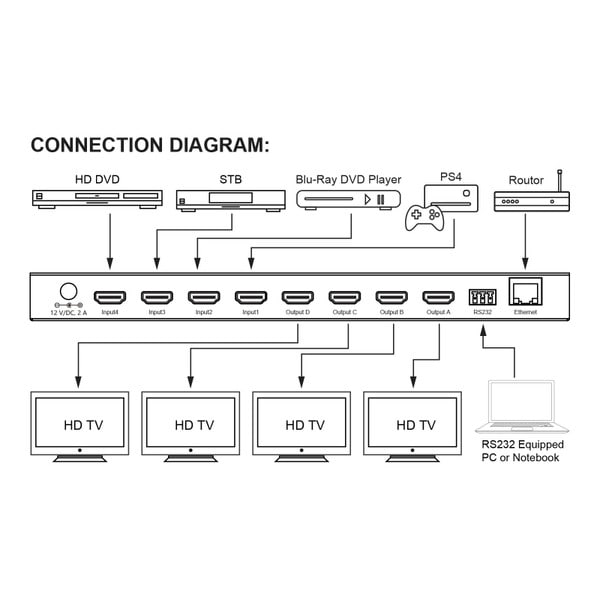

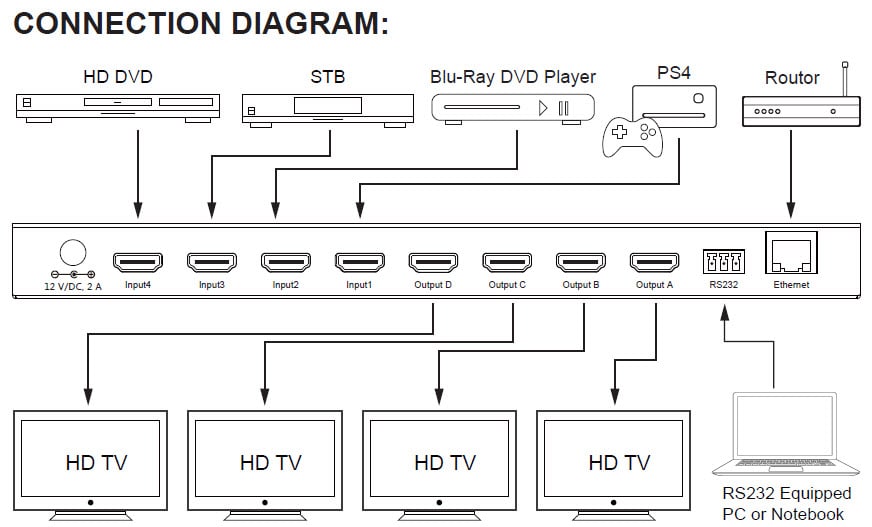

This 4x4 UHD A/V matrix switcher connects four devices to four TVs and provides a high level of audio and video performance with support for resolutions up to 4K @ 60 Hz. It includes an Ethernet port and RS-232 connection for extra remote control options.
Key Features
  • HDMI inputs and outputs with 18 Gbps 4K UHD support
  • WebGUI interface supports storing and recalling up to four routing presets for extra control options
  • Supports resolution up to 4K2K @ 60 Hz (YUV 4:4:4, 8-bit) and 48-bit Deep Color for best picture quality
  • Fast Switching prevents long pauses between source selections
  • Passes-through LPCM 7.1, bitstream and HD bitstream audio formats over HDMI

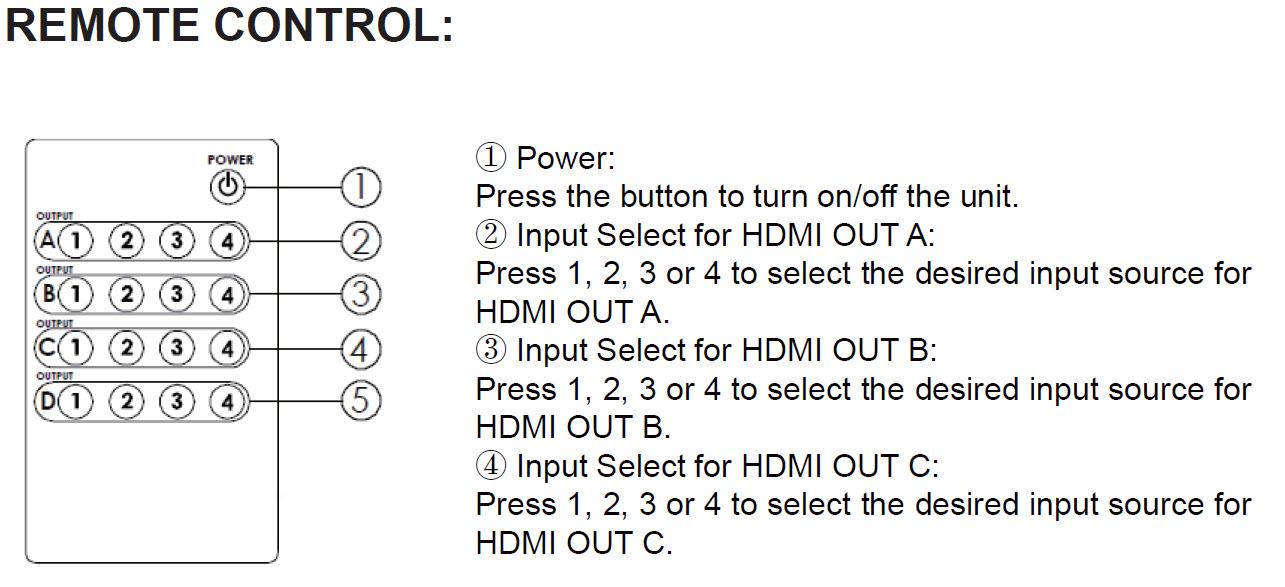

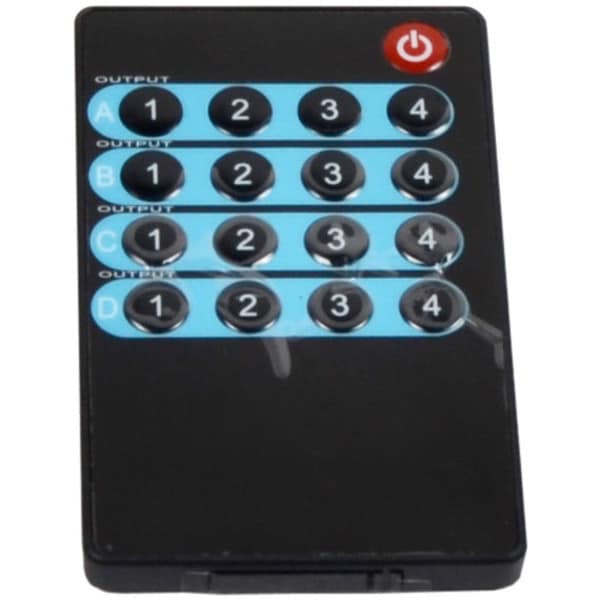

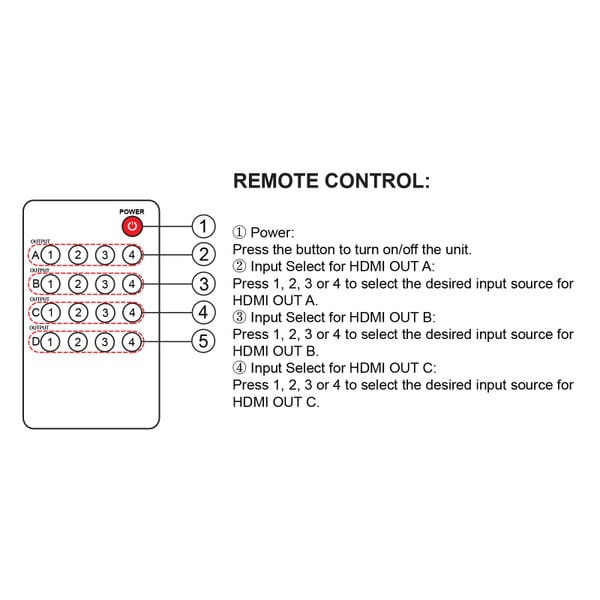

  • Includes IR remote control for quick wireless source selection
  • Each output selects which source it wants to connect to so all the outputs don't have to watch/listen to the same source.
CLEARANCE $199.97
+ FREE SHIPPING
MSRP: $350.99
Save $151.02 (43%)
Bulk Pricing
Ships next business day. Details

12In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

HDMI 2.0 4K 60 Hz Super Slim 4x4 Matrix Switch with RS-232 and Ethernet

Ultimate control over multiple HDMI 2.0 sources and displays

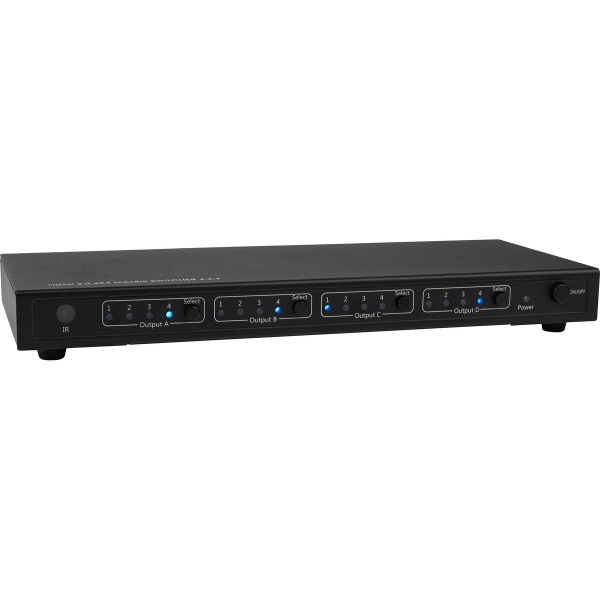

Enjoy the quality picture, sound, and ease of use switching between sources and watching/listening to your selection on up to four different displays or HDMI audio receivers. This HDMI 2.0 matrix switcher produces the same quality picture output as the input source delivers up to 4K2K @ 60 Hz. It also passes-through LPCM 7.1, bitstream and HD bitstream audio formats over all four output ports. The front panel has LEDs for each source identifying which source each output is watching/listening to. This enables each output to choose its own source. Easily switch between sources via included IR remote, RS-232, telnet, WebGUI, or front-panel buttons. WebGUI enables you to store and recall up to four routing presets.

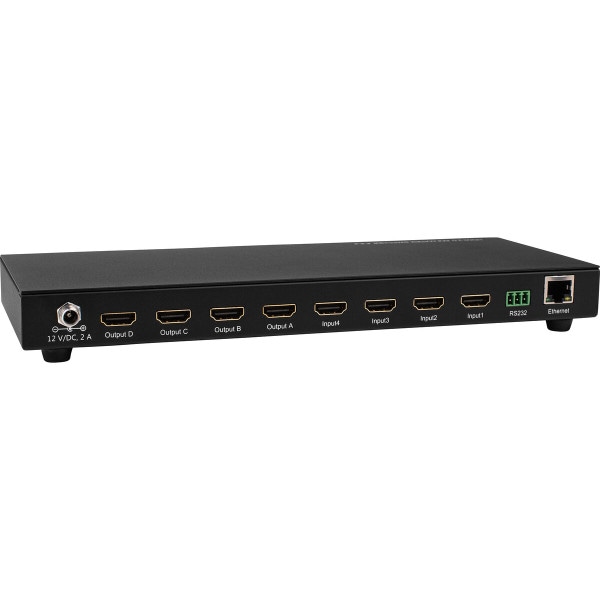

A slim profile and black finish makes this matrix box almost unnoticeable in your home theater setup. Its body is only 1" high and includes a 12 VDC 2A power supply that has a thin black 4 ft. cord with a locking 2.1 x 5.5 mm plug to prevent accidental power loss. The body's depth is 4-1/2" and its width is 10-3/4".

Product Details

BrandParts Express
Part Number180-1134
UPC848864059136
Unit of MeasureEach
Weight2.4

Product Specifications

Audio Input/OutputHDMI
Video Input/OutputHDMI
