  • Goldwood GW-S650/8 6-1/2" Poly Cone Woofer 8 Ohm

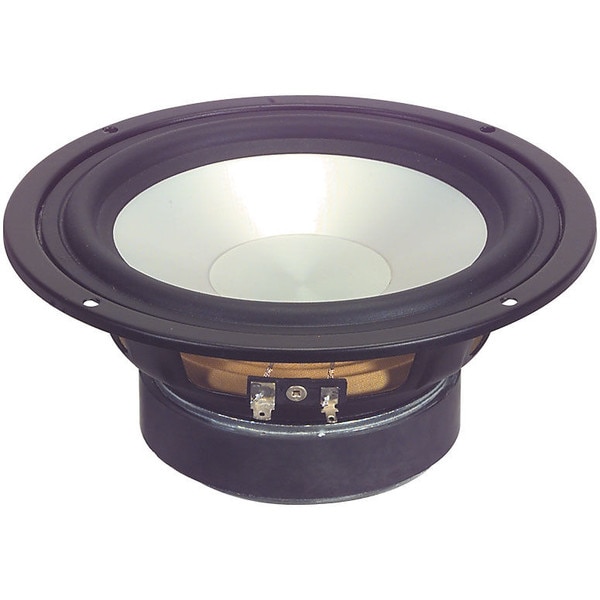

Goldwood GW-S650/8 6-1/2" Poly Cone Woofer 8 Ohm

Goldwood
Part #290-309

Goldwood GW-S650/8 6-1/2" Poly Cone Woofer 8 Ohm

Goldwood
Part #290-309
Model: GW-S650/8
These silver polymer cone woofers feature a cosmetic stamped steel frame, vented and bumped back plate, and high-quality rubber surround. The relatively shallow profile, polymer construction, and T/S parameters make them great for sealed, free air, or in wall use.
Key Features
  • Modern looking silver colored polypropylene cone
  • Vented pole piece keeps voice coil cool
  • Ample mechanical excursion with a raised spider and bumped back plate
  • Moisture resistant poly cone and rubber surround
Your Price: $25.98
MSRP: $33.99
Save $8.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $25.98/ea
Quantity:Qty: 4-9 $24.68/ea
Quantity:Qty: 10+$23.38/ea
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Goldwood GW-S650/8 6-1/2" Poly Cone Woofer 8 Ohm

These silver polymer cone woofers feature a cosmetic stamped steel frame, vented and bumped back plate, and high-quality rubber surround. The relatively shallow profile, polymer construction, and T/S parameters make them great for sealed, free air, or in wall use.

Product Details

BrandGoldwood
ModelGW-S650/8
Part Number290-309
UPC643420100525
Unit of MeasureEach
Weight2.9

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)85 Watts
Power Handling (MAX)170 Watts
Impedance
Frequency Response35 to 5,000Hz
Sensitivity85.7dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)56.2Hz
DC Resistance (Re)
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)3.49
Electromagnetic Q (Qes)1.09
Total Q (Qts)0.83
Compliance Equivalent Volume (Vas)0.46ft³
Mechanical Compliance of Suspension (Cms)0.48mm/N
BL Product (BL)6.17T·m
Diaphragm Mass Inc. Airload (Mms)16.8g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)139.7cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7"
Baffle Cutout Diameter5.875"
Depth2.875"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.65ft³
Sealed F359.9Hz
Vented Volume1.25ft³
Vented F341.6Hz
