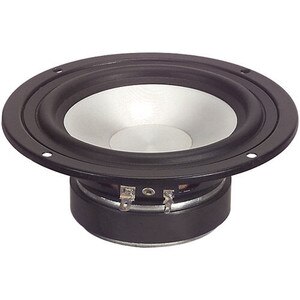

Goldwood GW-S525/8 5-1/4" Poly Cone Woofer 8 Ohm

Goldwood
Part #290-302

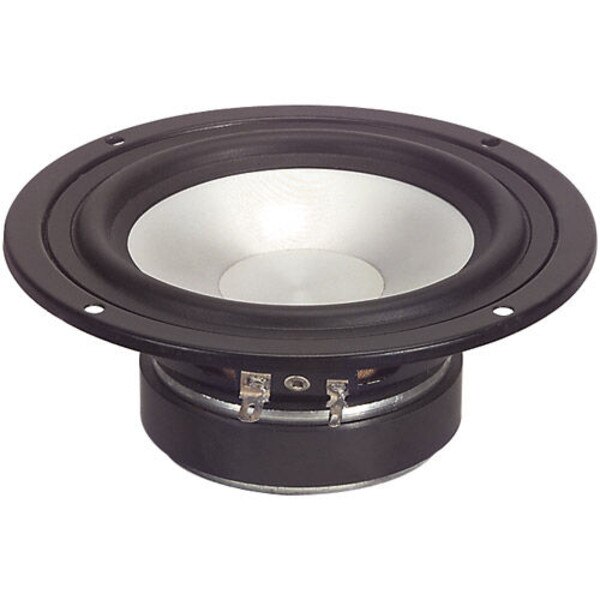

Goldwood GW-S525/8 5-1/4" Poly Cone Woofer 8 Ohm

Goldwood
Part #290-302
Model: GW-S525/8
These silver polymer cone woofers feature a cosmetic stamped steel frame, vented and bumped back plate, and high-quality rubber surround. The relatively shallow profile, polymer construction, and T/S parameters make them great for sealed, free air, or in wall use.
Key Features
  • Poly cone and rubber surround is ideal for harsh environments
  • Vented pole piece improves power handling
  • Cosmetic frame looks good without countersinking
  • Bumped back plate increases mechanical excursion
Similar items that may interest you:
Your Price: $18.98
MSRP: $24.99
Save $6.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $18.98/ea
Quantity:Qty: 4-9 $18.03/ea
Quantity:Qty: 10+$17.08/ea
Order in the next 11 hr 17 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Goldwood GW-S525/8 5-1/4" Poly Cone Woofer 8 Ohm

These silver polymer cone woofers feature a cosmetic stamped steel frame, vented and bumped back plate, and high-quality rubber surround. The relatively shallow profile, polymer construction, and T/S parameters make them great for sealed, free air, or in wall use.

Product Details

BrandGoldwood
ModelGW-S525/8
Part Number290-302
UPC643420100501
Unit of MeasureEach
Weight1.6

Product Specifications

Nominal Diameter5-1/2"
Power Handling (RMS)70 Watts
Power Handling (MAX)130 Watts
Impedance
Frequency Response50 to 5,500Hz
Sensitivity84.7dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)81.1Hz
DC Resistance (Re)
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)2.87
Electromagnetic Q (Qes)1.18
Total Q (Qts)0.84
Compliance Equivalent Volume (Vas)0.13ft³
Mechanical Compliance of Suspension (Cms)0.4mm/N
BL Product (BL)5.41T·m
Diaphragm Mass Inc. Airload (Mms)9.7g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)82.29cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.625"
Baffle Cutout Diameter4.56"
Depth2.5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F383.3Hz
Vented Volume0.5ft³
Vented F359.9Hz
