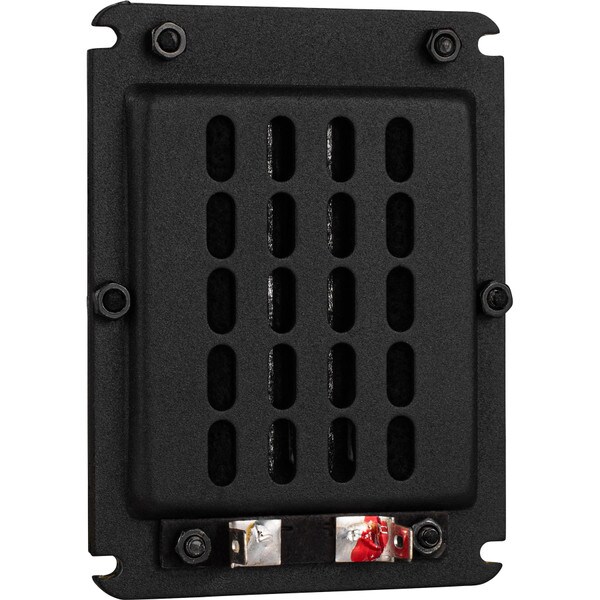

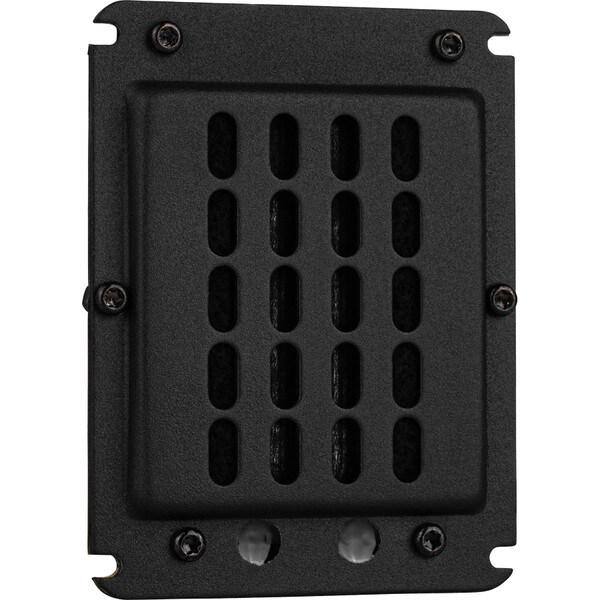

GRS PT2522-4 3-1/2" Planar Tweeter 4 Ohm

Name: GRS PT2522-4 3-1/2" Planar Tweeter 4 Ohm
Brand: GRS
SKU: 272-122
Price: 39.98 USD
Availability: InStock
Rating: 4.7 (12 reviews)

Read 12 Reviews | 13 Questions, 47 Answers or

GRS

Part #272-122

GRS PT2522-4 3-1/2" Planar Tweeter 4 Ohm

GRS

Part #272-122

Model: PT2522-4

Read 12 Reviews | 13 Questions, 47 Answers or

With a low mass diaphragm and powerful motor, the GRS PT2522-4 planar back tweeter delivers high efficiency output with excellent transient response. The open back construction produces true dipole radiation which is ideal for use in open baffle designs. Smooth frequency response and low distortion gives the PT2522-4 an incredibly natural but dynamic sound.

Key Features

Extremely low mass diaphragm provides excellent transient response and accuracy
Large diaphragm produces high efficiency and wide bandwidth
Remarkably flat response even at 30 degrees off axis
Open back delivers true dipole radiation for use in open baffle designs
Linear impedance simplifies crossover design
Shallow mounting depth for use in low profile designs
Custom mounting faceplate available

Frequently Bought Together

This Product: GRS PT2522-4 3-1/2" Planar Tweeter 4 Ohm	$39.98
GRS PT2522-FP Face Plate for PT2522-4 and PT2522C-4 Planar Tweeters	$11.98
Dayton Audio 4k-HPF-4 High Pass Speaker Crossover 4,000 Hz 12 dB/Octave	$9.98

Total Price: $61.94

This Product:GRS PT2522-4 3-1/2" Planar Tweeter 4 Ohm$39.98

GRS PT2522-FP Face Plate for PT2522-4 and PT2522C-4 Planar Tweeters$11.98

Dayton Audio 4k-HPF-4 High Pass Speaker Crossover 4,000 Hz 12 dB/Octave$9.98

3 ItemsTotal Price: $61.94

Overview

GRS PT2522-4 3-1/2" Planar Tweeter 4 Ohm

GRS PT2522-4 3-1/2" Planar Tweeter 4 Ohm

Designed to deliver high efficiency with extremely smooth response.

The PT2522-4 is a perfect choice for use as a drop-in replacement in existing systems or for use in new designs where low distortion and accurate response is needed. The open-back design gives this tweeter true dipole radiation making it the perfect choice for use in open baffle speaker designs.

Key Specs:

Tweeter Type: Planar Magnetic
Power Handling (RMS): 20 Watts
Power Handling (MAX): 40 Watts
Impedance: 4Ω
Frequency Response: 800 - 20,000 Hz
Sensitivity: 94dB 2.83V/1m
Diaphragm Material: Polyethylene Naphthalate

Full SpecificationsManual

Frequency Response & Impedance

Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm that is driven by 6 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and low distortion. The linear 3.4 ohm impedance makes crossover design simple and minimizes the number of components required to achieve your required roll off.

Optional Faceplate Available

Add the final touches to any build that uses the PT2522-4 with the optional faceplate! When the tweeter is attached to the faceplate, the resulting shape is easier to flush mount into your speaker baffle, creating a clean aesthetic and reducing diffraction.

Buy Now!

Shop all GRS Planar Tweeters and Faceplates

GRS Planar Tweeters provide great transients, and frequency response at the fantastic value you expect from GRS

GRS PT2522C-4

Nominal Impedance: 4ohm
Frequency Response: 800-20kHz
Buy Now

GRS PT6825-8

Nominal Impedance: 8ohm
Frequency Response: 250-20kHz
Buy Now

GRS PT6816-8

Nominal Impedance: 8ohm
Frequency Response: 320-20kHz
Buy Now

GRS PT5010-8

Nominal Impedance: 8ohm
Frequency Response: 200-8kHz
Buy Now

Product Details
Brand	GRS
Model	PT2522-4
Part Number	272-122
UPC	848864061214
Unit of Measure	Each
Weight	0.35

Product Specifications
Cutout Diameter	2.87" x 2.3
Tweeter Type	Planar
Power Handling (RMS)	20 Watts
Impedance	4Ω
Frequency Response	800 to 20,000Hz
Sensitivity	93dB 2.83V/1m

Thiele-Small Parameters
DC Resistance (Re)	3.4Ω
Voice Coil Inductance (Le)	0.01mH
Mechanical Q (Qms)	4.6
Total Q (Qts)	4.46

Mounting Information
Overall Outside Diameter	3.5" x 2.66"

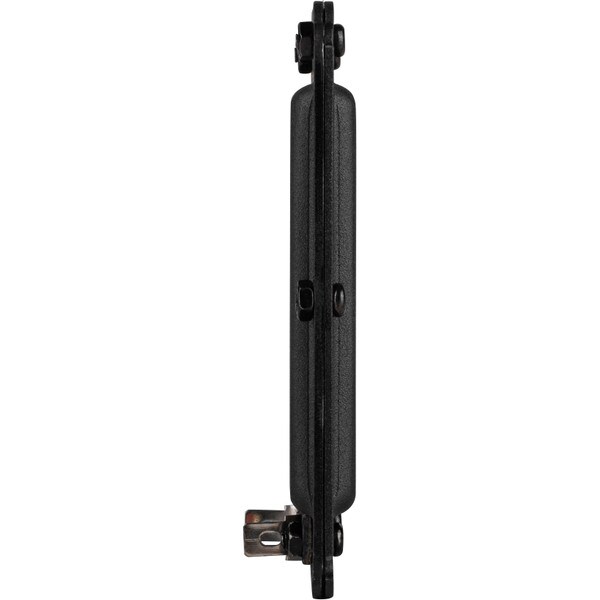

Depth	0.4"

Quantity:Qty: 1-3	$39.98/ea
Quantity:Qty: 4+	$35.98/ea
