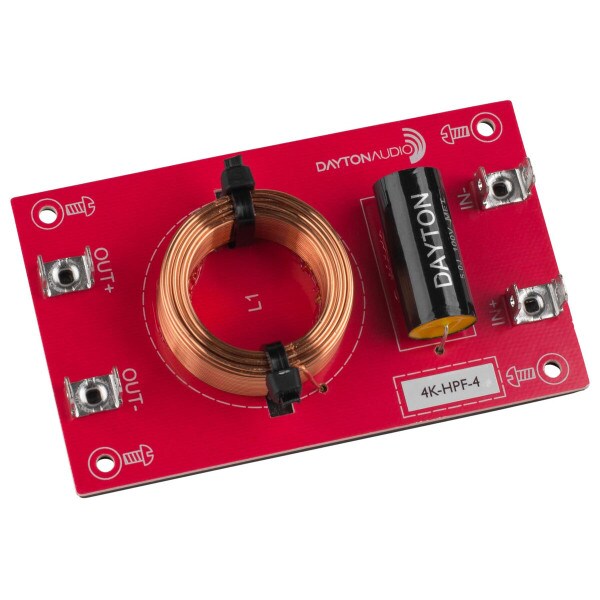

Dayton Audio 4k-HPF-4 High Pass Speaker Crossover 4,000 Hz 12 dB/Octave

Dayton Audio
Part #260-1898

Dayton Audio 4k-HPF-4 High Pass Speaker Crossover 4,000 Hz 12 dB/Octave

Dayton Audio
Part #260-1898
Model: 4k-HPF-4
This 2nd order (i.e. 12 dB per octave) high pass Linkwitz-Riley filter from Dayton Audio passes frequencies above 4,000 Hz and can easily be combined with other filters in this series to create 2-way or even 3-way crossover networks. Designed for use with 4 ohm drivers. Mounts to our 5" X 7" blank terminal plate (part # 260-110).
Key Features
  • High quality poly capacitor in series with the driver
  • High quality components are securely fastened to PCB
  • Frequencies can be staggered or overlapped for desired response
  • High quality red PC board with EVA backing to prevent shorts and vibration
  • Dual 0.205" terminals at each connection point for easy parallel wiring
Your Price: $9.98
MSRP: $19.99
Save $10.01 (50%)
Bulk Pricing
Quantity:Qty: 1-9 $9.98/ea
Quantity:Qty: 10+$8.98/ea
Order in the next 1 hr 41 min to ship today. Details

112In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio 4k-HPF-4 High Pass Speaker Crossover 4,000 Hz 12 dB/Octave

Dayton Audio's premium inline passive filters make it easy to limit a driver's frequency response to a specific desired bandwidth. By using combinations of these filters you can create complete 2-way or 3-way crossovers. The components used in each of these are the same high quality you have come to expect from Dayton Audio.

This 12dB/octave 4,000 Hz high pass filter can be combined with our 4,000 Hz low pass for a 2nd order Linkwitz-Riley crossover, which sums for flat transfer function across the crossover frequency. In addition, you can stagger or overlap filter frequencies to overcome peaks and dips in individual drivers' frequency response to create crossovers that acoustically sum flat across the crossover point.

Mounts to our 5" X 7" blank terminal plate (part # 260-110).

Specifications:
Type: High Pass Filter
Frequency: 4,000 Hz
Impedance: 4 ohms
Dimension: 3.93" x 2.36" (100 mm x 60 mm)
Power handling: 250 watts
Series capacitor value: 5 µF
Parallel inductor value: 0.32 mH

Product Details

BrandDayton Audio
Model4k-HPF-4
Part Number260-1898
UPC848791004377
Unit of MeasureEach
Weight0.25

Product Specifications

ConfigurationAssembled Board Only
Crossover TypeHigh Pass
