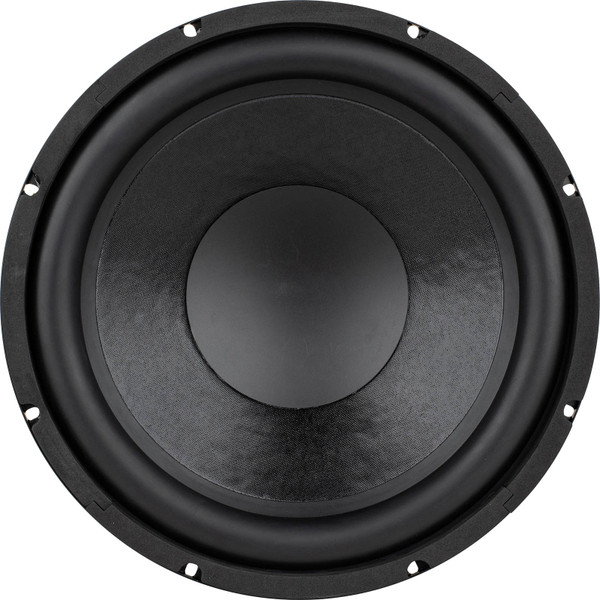

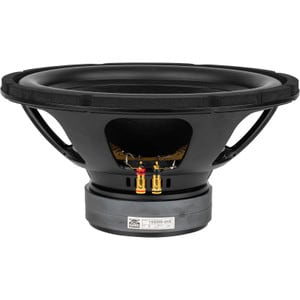

GRS 15SSW-4HE 15" High Excursion Super Subwoofer 4 Ohm

GRS
Part #292-822

GRS 15SSW-4HE 15" High Excursion Super Subwoofer 4 Ohm

GRS
Part #292-822
Model: 15SSW-4HE
The flagship woofer 15SSW-4HE 15” high excursion super-subwoofer from GRS, is designed to produce excellent low-frequency extension in a variety of designs. Suitable for sealed and vented enclosures, this driver is the ideal replacement or upgrade for your existing subwoofers with worn-out or blown drivers. Featuring extensive venting, dual spider design, a rubber surround capable of high-excursion, high-temperature voice coil, low Fs, and 12.3 mm of excursion the 15SSW-4HE is built for remarkable bass response on a budget.
Key Features
  • High excursion and low Fs to produce powerful low frequency output
  • Dual spider suspension for high excursion
  • 2.5” voice coil on a thick aluminum former to handle up to 300 watts RMS
  • Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation
  • Over 12mm of linear one-way X-MAX
  • Extended frame and bumped back plate allow ample clearance for high excursion
  • Durable reinforced paper cone with rubber surround produces reliable and consistent performance
Similar items that may interest you:
Your Price: $119.98
+ FREE SHIPPING
MSRP: $179.99
Save $60.01 (33%)
Bulk Pricing
Quantity:Qty: 1-3 $119.98/ea
Quantity:Qty: 4+$107.98/ea
Order in the next 1 hr 32 min to ship today. Details

In Stock

Free Shipping available on orders over $49.00 in the US. Details

Overview

GRS 15SSW-4HE 15" High Excursion Super Subwoofer 4 Ohm

GRS 15SSW-4HE 15" High Excursion Subwoofer

Engineered for extended low frequency response and flexibility

The GRS 15SSW-4HE 15” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 15SSW-4HE is suitable as a drop-in replacement for most existing 15” subwoofers.


Key Specs:

  • Nominal Diameter: 15"
  • Power Handling (RMS): 300W
  • Power Handling (MAX): 600W
  • Impedance: 4 Ω
  • Frequency Response: 20-300Hz
  • Sensitivity: 90 dB 2.83V/1m
  • Voice Coil Diameter: 2.5"
  • Maximum Linear Excursion: 12.3mm

Frequency Response & Impedance Curve

the GRS 15SW-4HE has a bass-centric response from 26Hz up to 500Hz and is highly efficient within its passband. This efficiency and a low QTS lends itself well to both vented and sealed subwoofers for incredibly deep bass from a 15-inch driver.

Bass-worthy construction

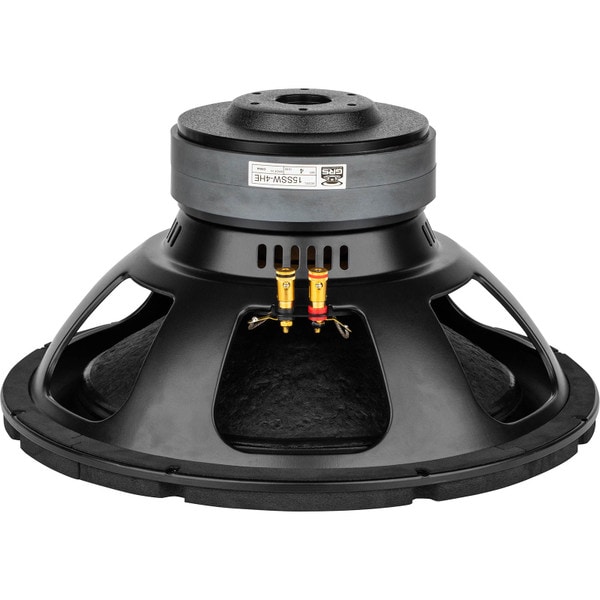

Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. With a high temperature 2.5” voice coil wound on a thick aluminum former the 15SSW-4HE can comfortably handle up to 300 watts RMS of power.


Shop all GRS High Excursion Subwoofers

GRS 8SW-4HE

Nominal Diameter: 8"
Frequency Response: 32-1000Hz
Shop Now

GRS 10SW-4HE

Nominal Diameter: 10"
Frequency Response: 29-1,000Hz
Shop Now

GRS 12SW-4HE

Nominal Diameter: 12"
Frequency Response: 20-1,000Hz
Shop Now

Product Details

BrandGRS
Model15SSW-4HE
Part Number292-822
UPC848864070483
Unit of MeasureEach
Weight20.5

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.7
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance
Frequency Response20 to 300Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)20.7Hz
DC Resistance (Re)4.2Ω
Voice Coil Inductance (Le)3.7mH
Mechanical Q (Qms)4.27
Electromagnetic Q (Qes)0.55
Total Q (Qts)0.49
Compliance Equivalent Volume (Vas)6.94ft³
Mechanical Compliance of Suspension (Cms)0.21mm/N
BL Product (BL)16.6T·m
Diaphragm Mass Inc. Airload (Mms)283.8g
Maximum Linear Excursion (Xmax)12.3mm
Surface Area of Cone (Sd)819.4cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.35"
Baffle Cutout Diameter13.93"
Depth7.4"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume3ft³
Sealed F336Hz
Vented Volume5ft³
Vented F324Hz
