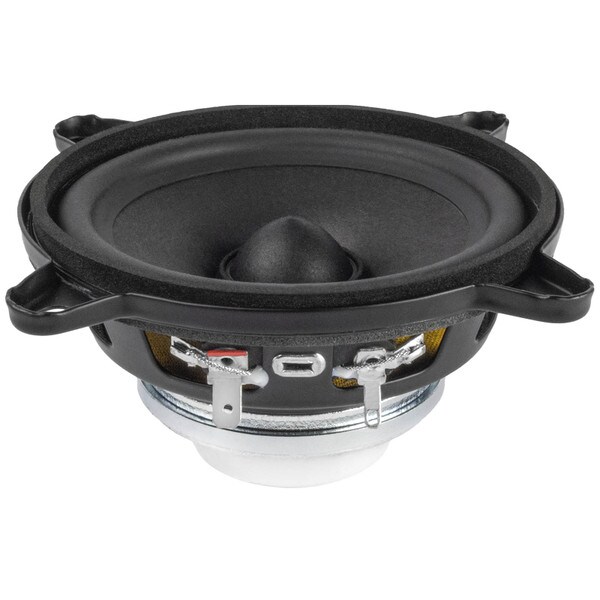

FaitalPRO 4FE42 4" Neodymium Full-Range Speaker 8 Ohm

FaitalPRO
Part #294-1356

FaitalPRO 4FE42 4" Neodymium Full-Range Speaker 8 Ohm

FaitalPRO
Part #294-1356
Model: 4FE42

FaitalPRO's do-it-all 4FE42 neodymium 4" full range speaker has high sensitivity and flat frequency response. Perfect for use in pro, home, and car audio applications.

Key Features
  • Flat response from 100 to 20,000 Hz
  • High 94 dB sensitivity
  • Great for use as a midrange, midbass, or full-range speaker
  • Made in Italy
Your Price: $60.00
Bulk Pricing
Ships next business day. Details

4In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 4FE42 4" Neodymium Full-Range Speaker 8 Ohm

FaitalPRO's 4FE42 4" neodymium professional woofer has exceptionally flat response from 100 Hz to 20,000 Hz, both on and off-axis, and features a 94dB sensitivity due to a powerful neodymium ring motor. Great for use in compact professional line array speakers, the 4FE42 is also right at home in home audio, personal audio, and car audio applications. It's also ideal for fixed installation applications as a midbass, midrange, or full-range speaker. Made in Italy.

Product Details

BrandFaitalPRO
Model4FE42
Part Number294-1356
UPC848864074795
Unit of MeasureEach
Weight0.9

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.54
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance8Ω
Frequency Response100 to 20,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.07mH
Mechanical Q (Qms)8
Electromagnetic Q (Qes)0.5
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)0.07ft³
Mechanical Compliance of Suspension (Cms)0.52mm/N
BL Product (BL)6T·m
Diaphragm Mass Inc. Airload (Mms)4g
Maximum Linear Excursion (Xmax)2.83mm
Surface Area of Cone (Sd)50.9cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.11"
Baffle Cutout Diameter3.6"
Depth2.13"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0283ft³
Sealed F3190Hz
Vented Volume0.0925ft³
Vented F396.6Hz
