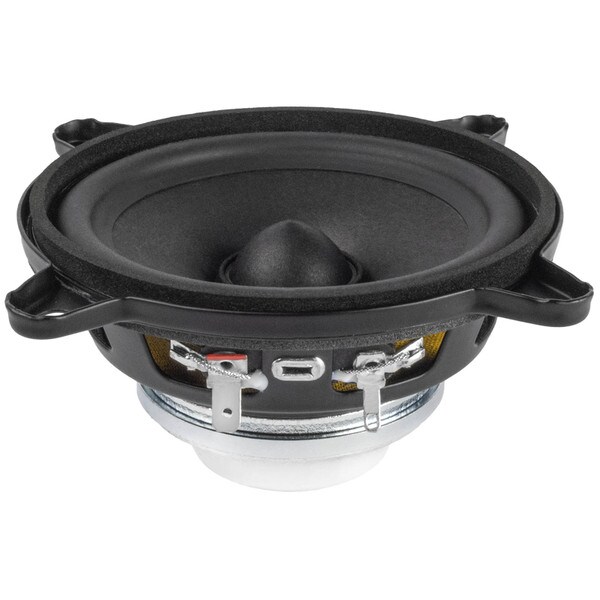

NEW FaitalPRO 4FE42 4" Neodymium Full-Range Speaker 4 Ohm

1 Question, 1 Answer or
FaitalPRO
Part #294-1354

NEW FaitalPRO 4FE42 4" Neodymium Full-Range Speaker 4 Ohm

FaitalPRO
Part #294-1354
Model: 4FE42
1 Question, 1 Answer or
The FaitalPRO 4FE42 is a high-performance 4-inch full-range driver designed to deliver exceptional sound clarity and detail. Ideal for compact speaker designs, this driver combines robust construction with superior audio performance, making it perfect for both professional and home audio applications.
Key Features
  • Wide frequency response covering a broad range from 90 Hz to 20 kHZ
  • High sensitivity with 93 dB SPL for clear sound at lower power
  • 80W max power means this little speaker punches above its weight class
  • Robust but light construction featuring a neodymium magnet and a steel basket
  • Compact size ideal for space-saving speaker designs without compromising audio quality
Similar items that may interest you:
See all items in Midrange / Midbass Drivers & Full-Range Speakers
NEW $60.00
Bulk Pricing

Back-Ordered

Estimated back in stock 1/24/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 4FE42 4" Neodymium Full-Range Speaker 4 Ohm

The FaitalPRO 4FE42's wide frequency response ensures it can handle a broad spectrum of sound, making it perfect for delivering both highs and lows with impressive clarity. Its high sensitivity allows it to produce a clear and powerful sound, even with less power input, making it an efficient choice for various audio setups. Built with robust materials and a strong neodymium magnet, this driver is designed to last, providing reliable performance over time.

Whether you're building a compact speaker system for a studio or just repairing your home audio setup, the FaitalPRO 4FE42 offers versatility and top-notch performance. Its compact size allows it to fit into smaller enclosures without sacrificing sound quality, making it an excellent choice for space-conscious designs.

Product Details

BrandFaitalPRO
Model4FE42
Part Number294-1354
UPC848864074788
Unit of MeasureEach
Weight7.9

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.54
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance4Ω
Frequency Response100 to 20,000Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)0.05mH
Mechanical Q (Qms)6.6
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.06ft³
Mechanical Compliance of Suspension (Cms)0.49mm/N
BL Product (BL)5.4T·m
Diaphragm Mass Inc. Airload (Mms)4.3g
Maximum Linear Excursion (Xmax)2.83mm
Surface Area of Cone (Sd)50.9cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.96"
Baffle Cutout Diameter3.6"
Depth2.13"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0135ft³
Sealed F3248.2Hz
Vented Volume0.0376ft³
Vented F3135.5Hz
