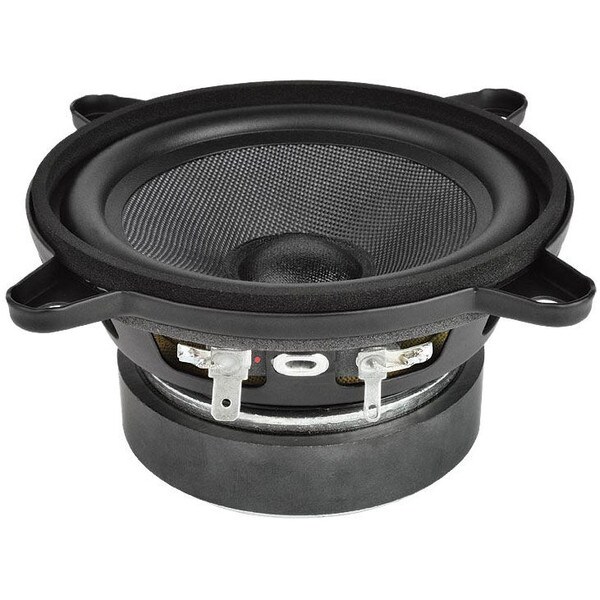

  • FaitalPRO 4FE35 4" Professional Full-Range Woofer 8 Ohm

FaitalPRO 4FE35 4" Professional Full-Range Woofer 8 Ohm

FaitalPRO
Part #294-1124

FaitalPRO 4FE35 4" Professional Full-Range Woofer 8 Ohm

FaitalPRO
Part #294-1124
Model: 4FE35
FaitalPRO's do-it-all 4FE35 ferrite 4" full-range speaker has high sensitivity and flat frequency response. Perfect for use in pro, home, and car audio applications.
Key Features
  • Ferrite version of the 4FE32 full-range woofer
  • Strong ceramic ferrite motor
  • Superb off-axis frequency response and handles up to 60 watts program power
  • Copper cap in the motor for reduced distortion
  • Made in Italy
Your Price: $32.00
Bulk Pricing

Back-Ordered

Estimated back in stock 1/10/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 4FE35 4" Professional Full-Range Woofer 8 Ohm

FaitalPRO's 4FE35 4" professional woofer has exceptionally flat response from 90 Hz to 15,000 Hz, both on and off-axis, and features a 91 dB sensitivity due to a powerful ferrite magnet. Distortion is reduced through the use of a copper cap to create a demodulation circuit in the motor.

Great for use in compact professional line array speakers, the 4FE35 is also right at home in home audio, personal audio, and car audio applications. It's also ideal for fixed installation applications as a midbass, midrange, or full-range speaker. Made in Italy.

Product Details

BrandFaitalPRO
Model4FE35
Part Number294-1124
UPC848864011110
Unit of MeasureEach
Weight1.26

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.54
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response90 to 20,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)100Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)0.1mH
Mechanical Q (Qms)4.2
Electromagnetic Q (Qes)1.04
Total Q (Qts)0.84
Compliance Equivalent Volume (Vas)0.07ft³
Mechanical Compliance of Suspension (Cms)0.65mm/N
Diaphragm Mass Inc. Airload (Mms)3.9g
Maximum Linear Excursion (Xmax)2.73mm
Surface Area of Cone (Sd)48cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.11" (mounting tabs), 3.96"
Baffle Cutout Diameter3.52"
Depth2.3"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.09ft³
Sealed F3107.1Hz
Vented Volume0.1ft³
Vented F379.6Hz
