Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

Dayton Audio
Part #285-022

Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

Dayton Audio
Part #285-022
Model: RS52FN-8

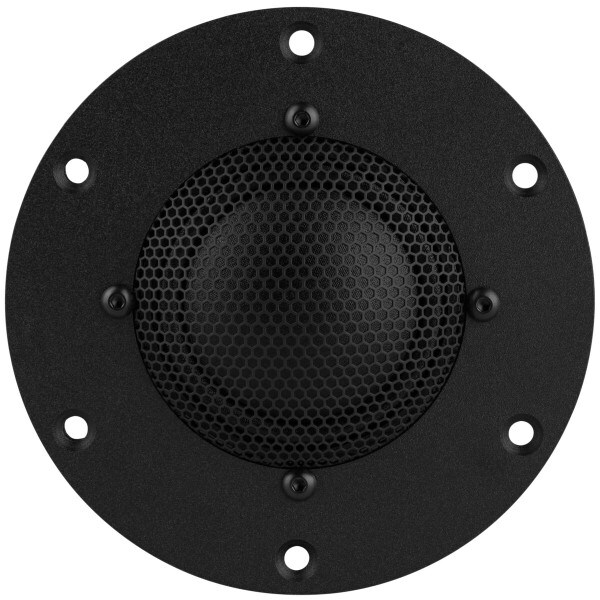

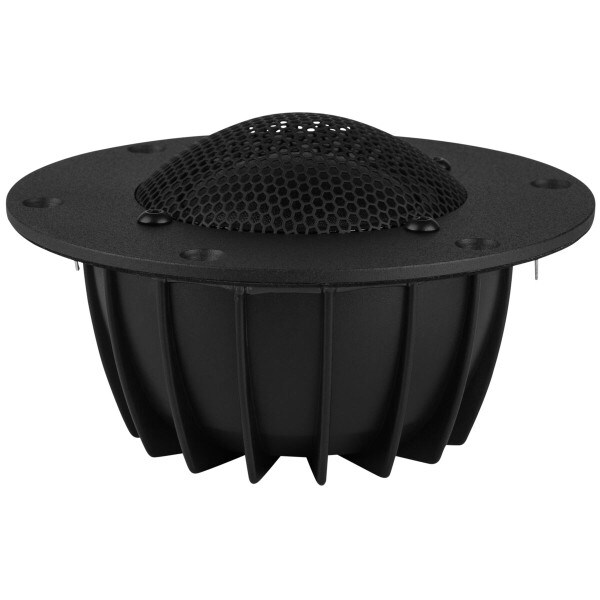

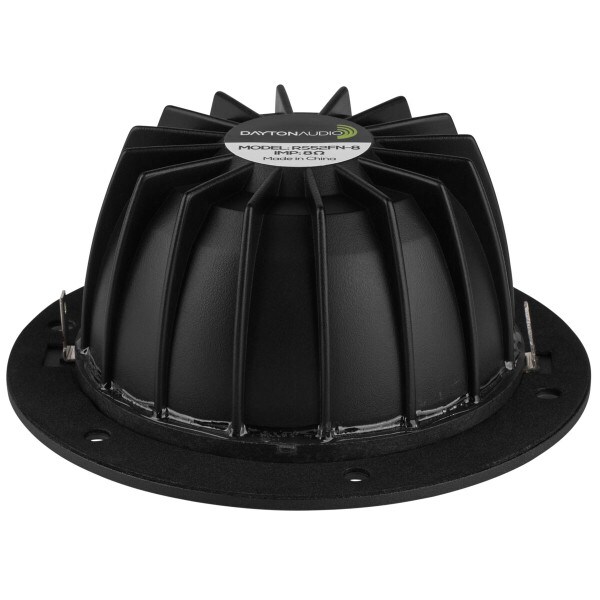

The Dayton Audio Reference Series dome midrange delivers smooth and natural midrange performance with excellent off-axis response. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.
Key Features
  • Large damped rear chamber for low resonance point
  • 2" damped fabric diaphragm for natural response and dispersion
  • Neodymium keeps size and weight to a minimum without sacrificing efficiency
  • Copper clad motor reduces distortion for transparent sound
Your Price: $35.48
MSRP: $58.99
Save $23.51 (40%)
Bulk Pricing
Order in the next 5 hr 22 min to ship today. Details

32In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

The Dayton Audio Reference Series soft dome midrange delivers excellent off-axis response and midrange performance. Its 2" damped fabric diaphragm is linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical 2-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance drivers.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelRS52FN-8
Part Number285-022
UPC848791004780
Unit of MeasureEach
Weight1.2

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter4.5
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance8Ω
Frequency Response500 to 8,500Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)394.3Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)0.12mH
Mechanical Q (Qms)4.27
Electromagnetic Q (Qes)1.39
Total Q (Qts)1.05
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)26.4cm²

Materials of Construction

Cone MaterialSoft Dome
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.12"
Baffle Cutout Diameter3.94"
Depth2.24"
# Mounting Holes6
