Dayton Audio PSS555-8 21" 1000 Watt RMS Pro Subwoofer with 4.5" Voice Coil 8 Ohm

Dayton Audio
Part #295-050

Dayton Audio PSS555-8 21" 1000 Watt RMS Pro Subwoofer with 4.5" Voice Coil 8 Ohm

Dayton Audio
Part #295-050
Model: PSS555-8

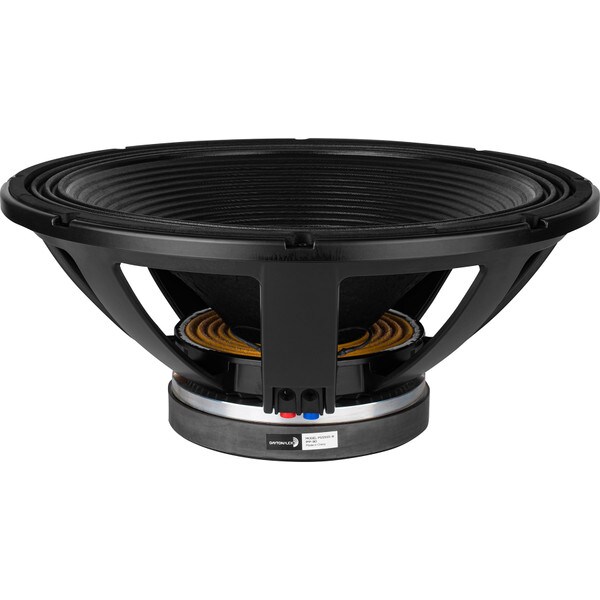

For low frequency response with maximum output, Dayton Audio's PSS555-8 21" professional subwoofer is an unbeatable value. This massive driver is capable of incredible displacement with excellent efficiency and power handling. Featuring a 4-1/2" voice coil, powerful ferrite motor, extensive venting, rigid treated paper cone, and rugged cast aluminum frame the PSS555-8 is capable of incredible low frequency response at breathtaking SPL levels.
Key Features
  • Large 4-1/2" inside/outside wound voice coil to handle 1,000 watts RMS for extended sessions
  • High energy ferrite motor assembly with extensive venting for minimal power compression
  • Copper shorting ring keeps inductance under control for incredibly low distortion
  • Push button terminals make wire connection easy and extremely secure

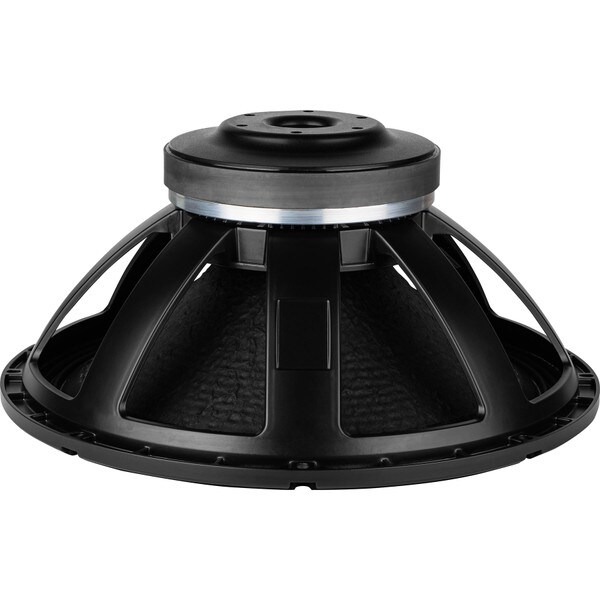

  • Rigid cast aluminum frame to withstand the use and abuse of the professional sound environment
  • Capable of 22 mm peak-to-peak excursion with only a 30% loss in BL
Your Price: $224.98
+ FREE SHIPPING
MSRP: $402.99
Save $178.01 (44%)
Bulk Pricing

Back-Ordered

Estimated back in stock 1/3/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio PSS555-8 21" 1000 Watt RMS Pro Subwoofer with 4.5" Voice Coil 8 Ohm

You need to move a lot of air for high SPL bass response, and Dayton Audio's PSS555-8 21" professional subwoofer was built to move as much air as possible for the best value imaginable. This massive driver is capable of 11 mm of excursion in each direction (@ 70% BL, Klippel verified) for nearly 4 liters of displacement with each stroke. Displacement isn't all you need for maximum output; power handling and efficiency are also necessary. Capable of handling 1,000 watts RMS and with over 96 dB sensitivity, the PSS555-8 has what it takes to deliver. This driver is not just about output capability, the advanced and powerful motor is designed to produce incredibly low distortion levels even when driven to its limit for extended periods. Dayton Audio's PSS555-8 is sure to deliver the bass output you crave.

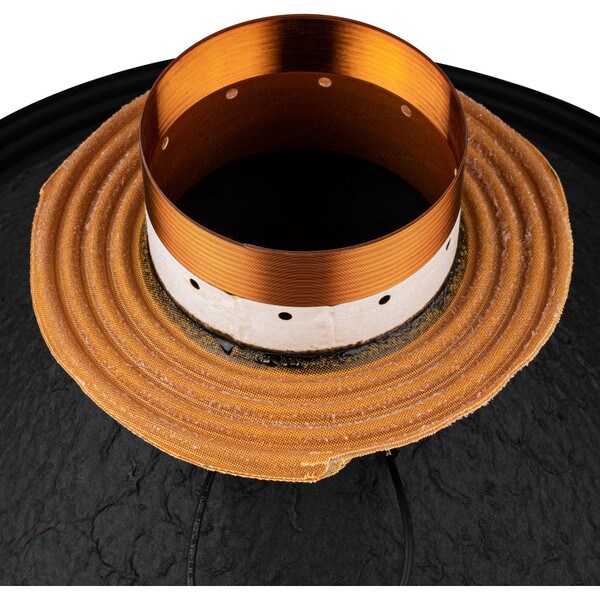

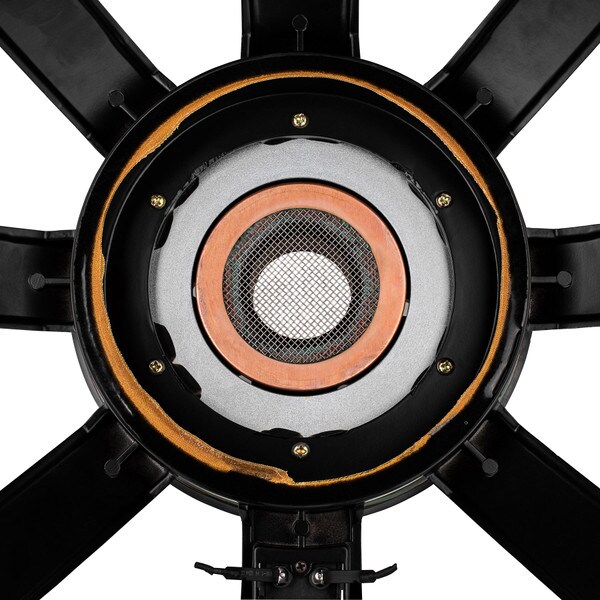

Powering the PSS555-8 is an advanced high energy ferrite motor assembly. Unlike neodymium magnets, the powerful ferrite magnet is capable of delivering a constant motor force even when exposed to high heat which helps keep power compression at a minimum. Its 4-1/2" inside/outside wound voice coil uses a fiberglass former that can take enough heat to handle up to 1,000 watts RMS without issue. A large pole piece vent, 6 peripheral gap vents, and numerous vents between the frame and top plate allow plenty of air to move across the voice coil to dissipate excessive heat, further reducing power compression caused by increased resistance due to heat. To control inductance and keep distortion to a minimum, the pole piece also includes a large copper shorting cap. All of this gives the PSS555-8 the ability to deliver predictable and consistent low frequency output even when driven to extreme SPL levels for extended periods.

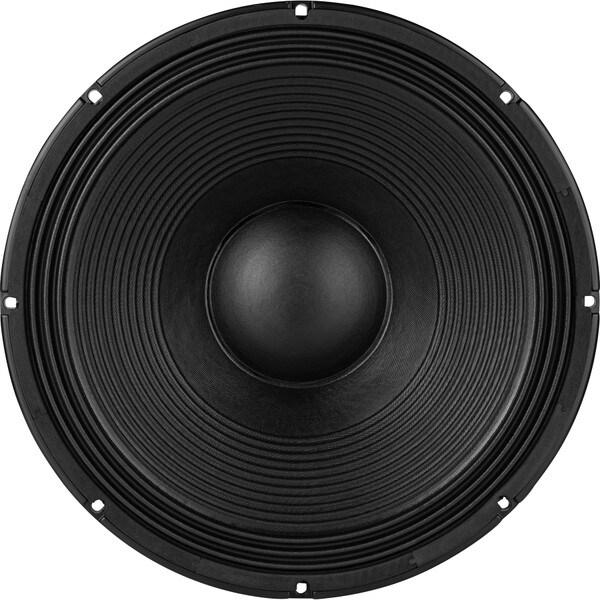

Dayton Audio built the PSS555-8 to take the use and abuse of the harsh professional sound environment. The naturally damped treated paper cone is optimized and reinforced to handle the stress of high excursion while maintaining its shape. To keep the cone under control, the PSS555-8 uses dual large diameter silicone treated spiders and a deep triple-roll accordion surround allowing for linear excursion even when driven to its limits and beyond. Holding everything together is a rugged cast aluminum frame that that will not restrict airflow and includes integrated push button wire terminals for a reliable and secure electrical connection. The PSS555-8 has been built to deliver years of worry free performance.

For high output bass response Dayton Audio's PSS555-8 is an unbeatable value. This versatile driver is a great choice for vented designs, back loaded horns, and even tapped horns. With an 8 ohm voice coil this driver is also perfect for use in dual and quad driver systems for the ultimate in output capability.

Product Details

BrandDayton Audio
ModelPSS555-8
Part Number295-050
UPC848791006494
Unit of MeasureEach
Weight60.4

Product Specifications

Nominal Diameter21"
Bolt Circle Diameter20.875
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response27 to 2,500Hz
Sensitivity96.3dB 2.83V/1m
Voice Coil Diameter4.5"

Thiele-Small Parameters

Resonant Frequency (Fs)27.6Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)1.8mH
Mechanical Q (Qms)10.7
Electromagnetic Q (Qes)0.34
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)15.68ft³
Mechanical Compliance of Suspension (Cms)0.11mm/N
BL Product (BL)29.7T·m
Diaphragm Mass Inc. Airload (Mms)316g
Maximum Linear Excursion (Xmax)11mm
Surface Area of Cone (Sd)1735cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter21.65"
Baffle Cutout Diameter20.1"
Depth10"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume6.5ft³
Vented F343Hz
