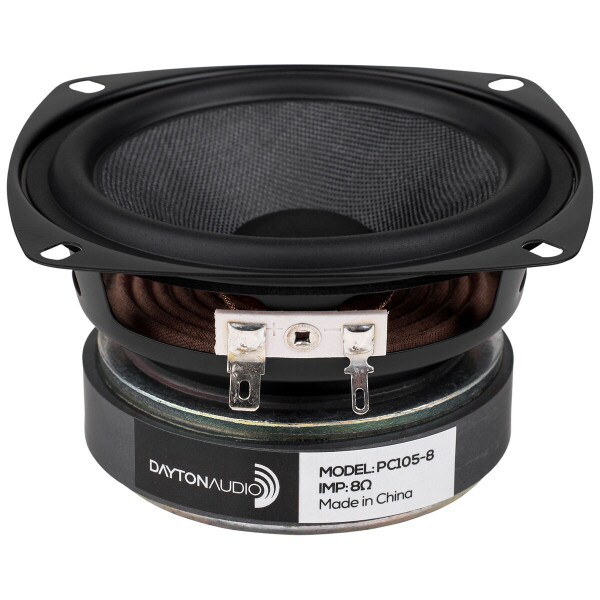

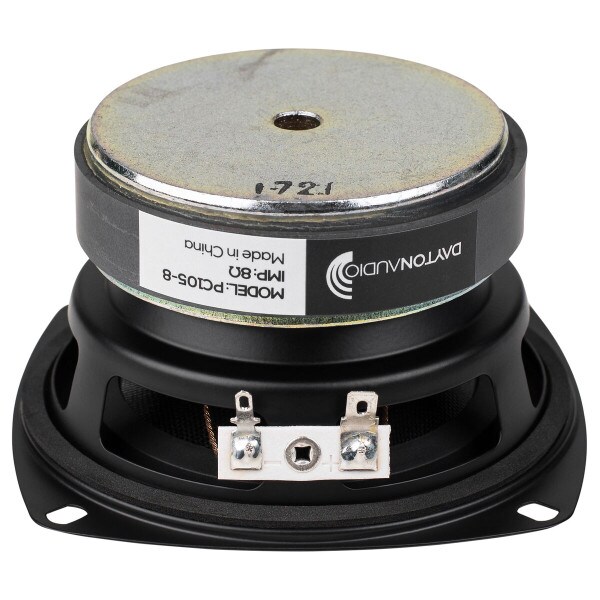

Dayton Audio PC105-8 4" Full-Range Poly Cone Driver

Dayton Audio
Part #295-160

Dayton Audio PC105-8 4" Full-Range Poly Cone Driver

Dayton Audio
Part #295-160
Model: PC105-8
Dayton Audio's PC105-8 4" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.
Key Features

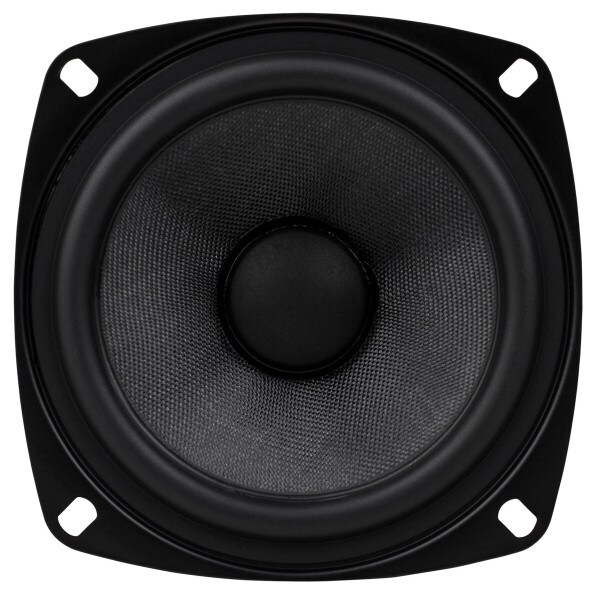

  • Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off

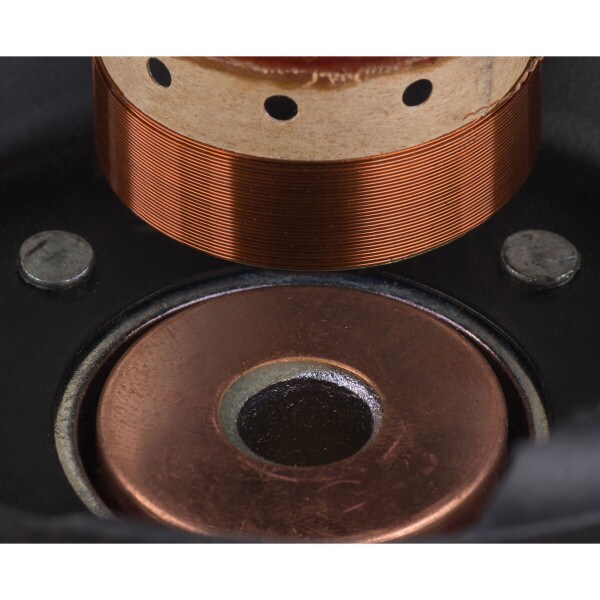

  • Copper cap keeps inductance under control and extends high frequency response
  • 1" vented aluminum voice coil former and vented pole piece for high power handling
  • High energy ferrite magnet increases BL for higher efficiency and more output
  • Smooth response with true full-range reproduction for simple speaker designs
Your Price: $14.98
MSRP: $18.99
Save $4.01 (21%)
Bulk Pricing
Quantity:Qty: 1-3 $14.98/ea
Quantity:Qty: 4+$13.77/ea
Ships next business day. Details

184In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio PC105-8 4" Full-Range Poly Cone Driver

The Dayton Audio PC105-8 4" full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. Thanks to the vented pole piece and vented aluminum voice coil former the PC105-8 can handle up to 40 watts RMS for surprising output capability with minimal power compression. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC105-8 will deliver high fidelity and low distortion from compact applications.

Product Details

BrandDayton Audio
ModelPC105-8
Part Number295-160
UPC848791004032
Unit of MeasureEach
Weight1.6

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.45
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance8Ω
Frequency Response80 to 15,000Hz
Sensitivity86.3dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)84.8Hz
DC Resistance (Re)6.7Ω
Voice Coil Inductance (Le)0.54mH
Mechanical Q (Qms)2.29
Electromagnetic Q (Qes)0.88
Total Q (Qts)0.64
Compliance Equivalent Volume (Vas)0.12ft³
Mechanical Compliance of Suspension (Cms)0.84mm/N
BL Product (BL)4.1T·m
Diaphragm Mass Inc. Airload (Mms)4.2g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)52.8cm²

Materials of Construction

Cone MaterialPoly Composite
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.96"
Baffle Cutout Diameter4.00"
Depth2.36"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.15ft³
Sealed F3113Hz
Vented Volume0.4ft³
Vented F356Hz
