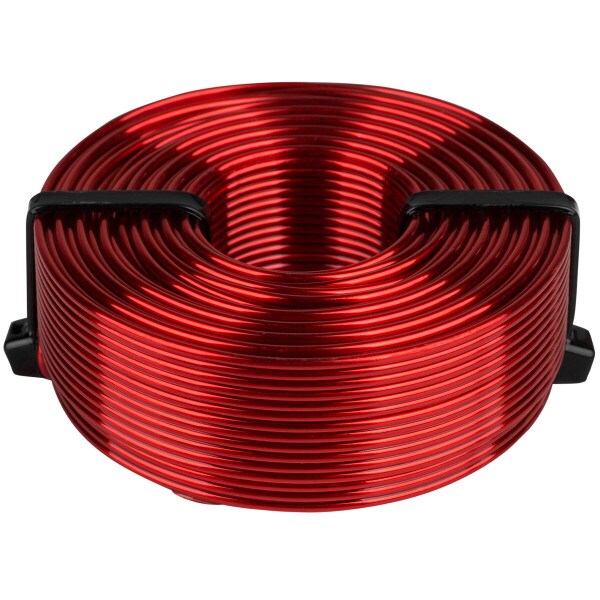

  • Dayton Audio 2.0mH 14 AWG Perfect Layer Inductor Crossover Coil

Dayton Audio 2.0mH 14 AWG Perfect Layer Inductor Crossover Coil

Dayton Audio
Part #257-328

Dayton Audio 2.0mH 14 AWG Perfect Layer Inductor Crossover Coil

Dayton Audio
Part #257-328
Model: LW142
Dayton Audio 14 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction where large power handling is required. Features fully annealed refined copper wire, baked enamel insulator and perfect layer construction.
Key Features
  • Highly refined copper wire
  • Baked enamel insulator
  • Perfect layer windings
  • Air core construction
  • 800 watts RMS power handling
  • ±3% Tolerance
Your Price: $39.98
MSRP: $51.99
Save $12.01 (23%)
Bulk Pricing
Quantity:Qty: 1-9 $39.98/ea
Quantity:Qty: 10+$38.29/ea
Ships next business day. Details

33In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio 2.0mH 14 AWG Perfect Layer Inductor Crossover Coil

Dayton Audio 14 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction where large power handling is required. Features fully annealed refined copper wire, baked enamel insulator and perfect layer construction. The thin enameled wire permits the tightest windings to minimize DCR and air core construction to ensure no hysteresis and saturation distortions.

Specifications: • Inductance: 2.0 mH • Wire gauge: 14 AWG • Core type: Air • DC resistance: 0.38 ohms • Tolerance: ±3% • Power handling: 800 watts RMS • Dimensions: 3.05" Ø x 1.04" H (78 x 26.6 mm).

Copper quality/purity: The copper used in all Dayton Audio inductors, both wire and foil based, is a minimum of 99.9% pure, providing 100% conductivity. The oxygen component of the copper is between 0.02% and 0.04%.

Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other.

Product Details

BrandDayton Audio
ModelLW142
Part Number257-328
UPC848791002960
Unit of MeasureEach
Weight1.59

Product Specifications

DCR0.38Ω
Inductance2mH
Inductor TypeAir Core
Wire Gauge14
