Dayton Audio LBB-ABS L-type Aluminum Bracket for LBB-5S Series Battery Holders

Dayton Audio
Part #325-211

Dayton Audio LBB-ABS L-type Aluminum Bracket for LBB-5S Series Battery Holders

Dayton Audio
Part #325-211
Model: LBB-ABS

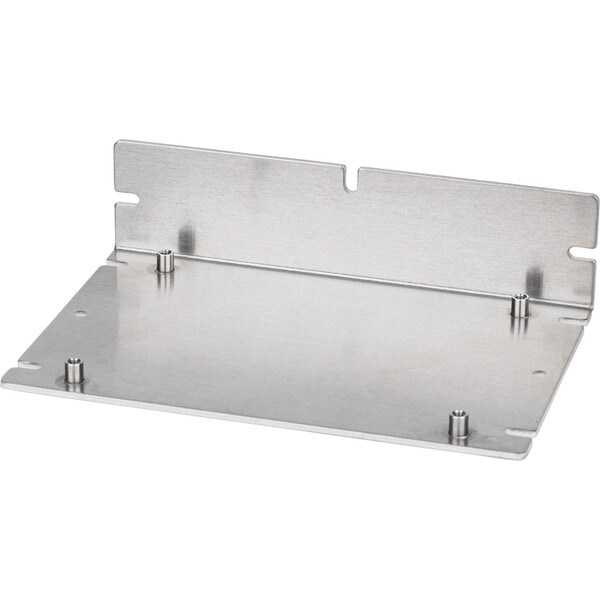

The LBB-ABS L-type aluminum bracket is ready to protect and mount the Dayton Audio LBB-5Sv2 Bluetooth amp board.
Key Features
  • Heavy-duty aluminum bracket will not crack or bend
  • Built-in threaded standoffs with the required standoff kit 320-3290 (sold separately) provide a sturdy foundation for mounting the LBB-5Sv2 in either direction
  • Seven precut slots in the aluminum for horizontal or vertical mounting
Your Price: $4.98
MSRP: $5.99
Save $1.01 (17%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio LBB-ABS L-type Aluminum Bracket for LBB-5S Series Battery Holders

It can be quite difficult to install the audio amplifier boards and battery boards into tight spaces such as portable sound applications. To securely mount the LBB-5Sv2 and KAB-4100 boards and improve space efficiency Dayton Audio offers the LBB-ABS; an L-type aluminum bracket. This aluminum bracket supports vertical and horizontal mounting configurations to satisfy different installation requirements. The dimensions are 6-1/16" x 4" x 1-9/16" (154 x 101.6 x 39 mm) on the "L" side. Two 0.15" (3.73mm) holes and seven slots give you the versatility to mount the L-type bracket to your project as needed. Built-in threaded standoffs with the required 320-3290 (sold separately) provide a sturdy foundation for mounting to the LBB-5Sv2 in either direction or the KAB-4100 with the fan facing up. Standoff spacing is 4-13/32" x 3-13/32" (112 x 82 mm) to center.

Note: If using this mounting bracket to mount the LBB-6S with the batteries facing the bracket, you must attach a 16mm and a 10mm standoff together to the bracket and then slide the battery board into place. Tighten the standoffs down all the way once the board is in place using the screws supplied with the standoffs. Facing up attach a 10 mm standoff to the board and use a 16 mm standoff on top and use pliers or another 16 mm standoff to tighten. 320-3290 standoff kit sold separately.



Product Details

BrandDayton Audio
ModelLBB-ABS
Part Number325-211
UPC848791007958
Unit of MeasureEach
Weight0.3

Product Specifications

Board TypePanels & Mounting Acc.
