Dayton Audio LBB-5CL DC Charging, Power Cables and LED Light Kit for LBB-3v2 and LBB-5/5S/6S Battery Boards

Dayton Audio
Part #325-142

Dayton Audio LBB-5CL DC Charging, Power Cables and LED Light Kit for LBB-3v2 and LBB-5/5S/6S Battery Boards

Dayton Audio
Part #325-142
Model: LBB-5CL
This kit includes external LED status lights, low and high current power output cables, and USB and car lighter charging cables. All the cables plug directly into the LBB-5 and LBB-5S series boards, plus the new LBB-3v2 battery board, making it easy to finish your portable project.
Key Features
  • 5 VDC USB-A and 12 VDC car lighter cables for charging the board when you're away from home
  • LEDs with push button externally identify battery, power, and charge status
  • 18 gauge power output cables for higher current portable projects
  • Convenient plug-in connectors for quick installation
Your Price: $9.98
MSRP: $11.99
Save $2.01 (17%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio LBB-5CL DC Charging, Power Cables and LED Light Kit for LBB-3v2 and LBB-5/5S/6S Battery Boards

Use this kit to complete your 21 VDC projects when using the LBB-3v2 and LBB-5/5S series boards for portable power. The LEDs with push button enable you to check charging status and battery strength when the LBB-5/5S series or LBB-3v2 battery board is not visible inside a project. The power output cables enable you to send 21 VDC to high current amps or low current preamp boards and the car lighter and USB cable let you keep your project charged when AC is not available. All the cables conveniently plug directly into the board without having to solder.

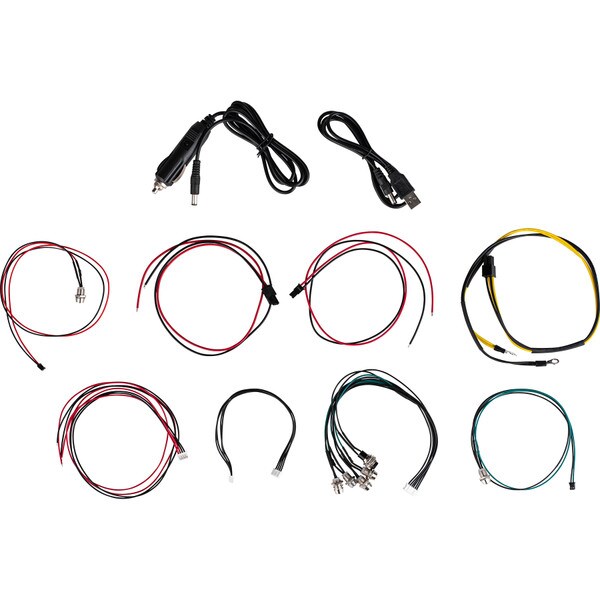

Includes:

• 6-pin green LED external battery checker lights with push button and 10" wiring harness
• 2-pin red LED external power and 2-pin green LED charge lights with 20" wiring harnesses
• 4-pin battery power harness 8" leads for KAB and DSPB amp boards
• 4-pin power output cord with 20" leads
• 2-pin high power output cord with 20" leads for LBB-5S
• 2-pin and 4-pin high power output cords with 20" leads for LBB-5
• 12 VDC cigarette lighter plug charging cord with 2.1 x 5.5 mm plug 5 ft.
• 5 VDC USB-A to 2.1 x 5.5 mm plug charging cord 3 ft.

Product Details

BrandDayton Audio
ModelLBB-5CL
Part Number325-142
UPC848791007279
Unit of MeasureEach
Weight0.35

Product Specifications

Board TypeWiring Harness
