Are you looking to give your Dayton Audio KABD sound projects a professional finish? Look no further than the KABD-PMV4 Panel Mount Kit! This kit is specifically designed to provide all the necessary components and accessories to make your KABD amp board ready for speakers and power, while giving it a sleek and polished look.
Key Features
Silk screen labels identify each function for ease of use and a professional finish
Predrilled holes save time mounting each component
Standoffs attach the KAD board to the KABD panel for one piece installation
Gasket tape and wood screws for a secure fit
Included components plug directly into the board without soldering
Volume plus three more controllers to add more instant frequency adjustments
Includes scratch off labels for the remaining three controllers for customization

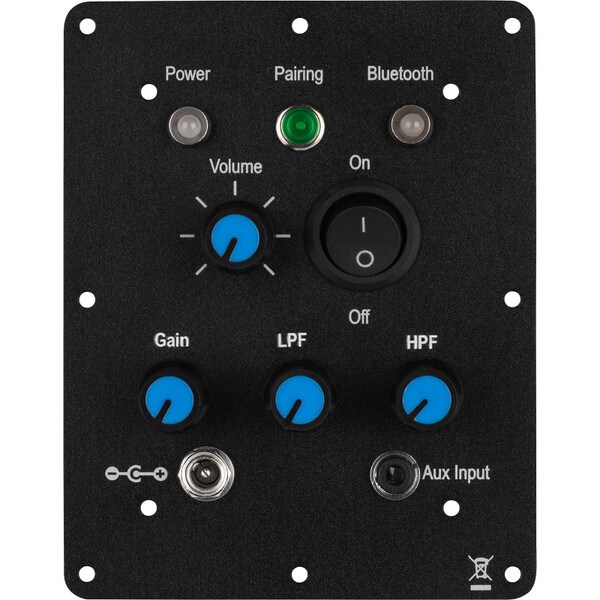

Dayton Audio KABD-PMV4 Panel Mount with Function Kit and Potentiometers

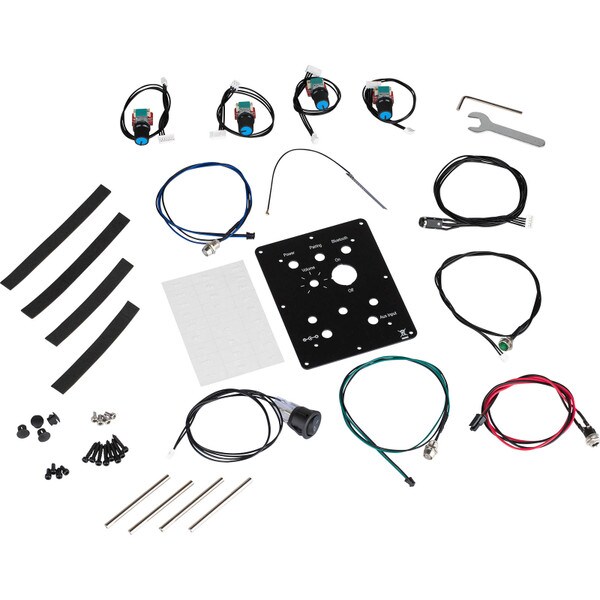

Included in the kit is everything you need for a seamless installation. You will find a DC coax 2.1 x 5.5 mm power jack, a rocker switch, standoffs, four potentiometers, a pairing switch, gasket tape, and mounting screws. The best part is that these components plug directly into the board, eliminating the need for any soldering. Installation has never been easier!
To make the process even more convenient, the panel comes with predrilled holes and silk screen white labels, allowing you to identify the location and function of each component with ease. No more guesswork or confusion!
Furthermore, the kit includes a scratch on transfer sheet for three blank control options, giving you the freedom to customize your project according to your preferences. Additionally, black plastic buttons are provided to cover any unused holes, ensuring a clean and professional appearance.
The standoffs included in the kit serve as a sturdy support system, holding the panel and the KABD board firmly together for one-piece mounting. This ensures that your project stays securely in place, even during heavy use.
To complete the installation, gasket tape and screws are included to securely mount the panel to your project. This ensures that the panel stays firmly in place, while also providing a neat and finished look.
With the KABD-PMV4 Panel Mount Kit, you can take your Dayton Audio KABD sound projects to the next level. Give them a professional finish and enjoy the satisfaction of a job well done. So why wait? Get your kit today and transform your project into something truly remarkable!
Included Components:
Parts
Description
Specification
Qty
Panel
Black metal
4.75" H x 3.76" W x 0.09" D (120 x 95 x 2.3 mm) with screw hole spacing 4.37" and 3.39" (111 x 86 mm) apart for mounting
1
Screws
Black for front of standoff
M3 x 6 mm
4
Screws
Silver for rear of standoff
M3 x 6 mm
4
Standoffs
Silver
M3 x 60 mm
4
Screws
Black wood screws for mounting
M3 x 16 mm
8
LEDs
Red and blue with metal socket and cables
5 mm with 20" (500 mm) leads
2
Potentiometer
Volume control, knob, and cable
10K ohm with 20" (500 mm) leads
4
Push button switch
Push button and cable for Bluetooth pairing
SPST momentary N.O. with 20" (500 mm) leads
1
Stereo phone Jack
Aux input and cable
3-conductor 3.5 mm with 20" (500 mm) leads
1
DC coax jack
DC input and cable
2.1 x 5.5 mm with 20" (500 mm) leads
1
Rocker Switch
On-off switch and cable
SPST with 20" (500 mm) leads
1
Gasket tape
Gasket tape for underneath the outer diameter of the panel
4.61" L x 0.39" W (117 x 10 mm)
2
Gasket tape
Gasket tape for underneath the outer diameter of the panel
