Dayton Audio KAB-PMV3 Panel Mount for Most KAB Boards with Function, LED, and Install Kit

Dayton Audio
Part #325-116

Dayton Audio KAB-PMV3 Panel Mount for Most KAB Boards with Function, LED, and Install Kit

Dayton Audio
Part #325-116
Model: KAB-PMV3
Add a professional finish to your Dayton Audio KAB amp board projects with this KAB panel accessory kit.
Key Features
  • Silk screen labels identify each function for ease of use and a professional finish
  • Predrilled holes save time mounting each component
  • Standoffs attach the KAB board to the KAB panel for one piece installation
  • Gasket tape and wood screws for a secure fit
  • Included components plug directly into the board without soldering
  • 5052 sheet aluminum and SUS304 stainless steel standoff for long lasting performance
Your Price: $19.98
MSRP: $21.50
Save $1.52 (7%)
Bulk Pricing
Quantity:Qty: 1-3 $19.98/ea
Quantity:Qty: 4+$17.98/ea
Order in the next 0 hr 40 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio KAB-PMV3 Panel Mount for Most KAB Boards with Function, LED, and Install Kit

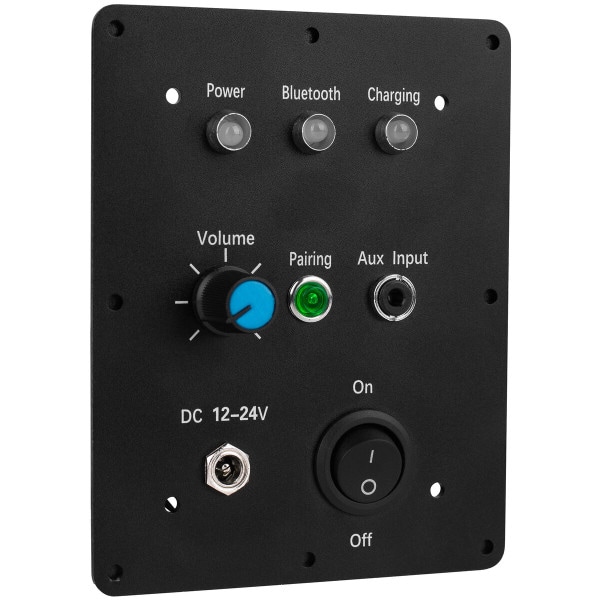

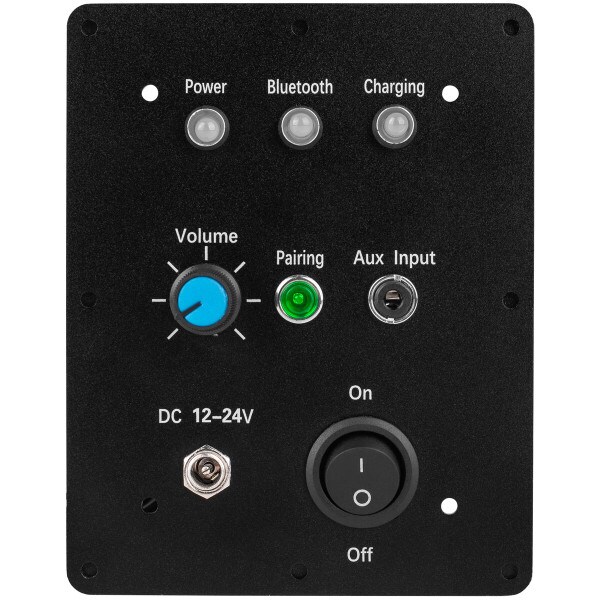

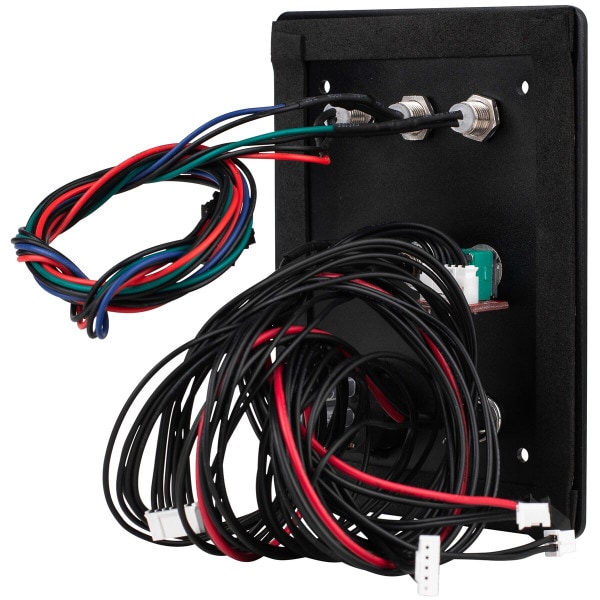

Give your Dayton Audio KAB sound projects a professional finish with the KAB-PMV3 Panel Mount Kit. It includes the function and LED light kit needed to get your KAB amp board ready for power. Plug the blue LED into the Bluetooth LED socket, the red LED into the LED power socket, and the green into the charging LED status socket. It also includes a DC coax 2.1 x 5.5 mm power jack, a rocker switch, standoffs, gasket tape and mounting screws to help complete the project. Each component plugs directly in the board without having to solder. Predrilled holes make installation a breeze with silk screen white labels to identify each components location and function. The standoffs hold the panel and the KAB board firmly together for one piece mounting. Gasket tape and screws securely mount the panel to your project.

Note: Pairing switch doesn't hook up to the KAB-215 series. This panel is not designed for the KABD series. Please check dimensions and features before ordering this panel.

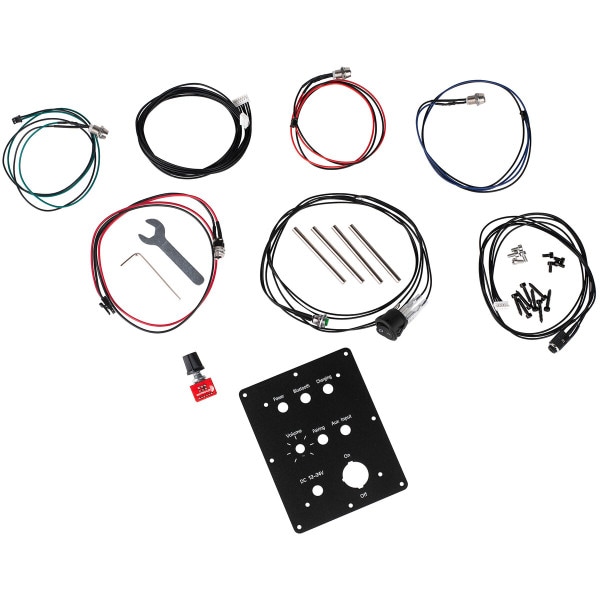

Included Components:

PartsDescriptionSpecificationQty
PanelBlack metal4.75" H x 3.76" W x 0.09" D (120 x 95 x 2.3 mm) with screw hole spacing 4.37" and 3.39" (111 x 86 mm) apart for mounting1
ScrewsBlack for front of standoffM3 x 6 mm4
ScrewsSilver for rear of standoffM3 x 6 mm4
StandoffsSilverM3 x 60 mm4
ScrewsBlack wood screws for mountingM3 x 16 mm8
LEDsRed, green, and blue with metal socket and cables5 mm with 20" (500 mm) leads3
PotentiometerVolume control, knob, and cable10K ohm with 20" (500 mm) leads1
Push button switchPush button and cable for Bluetooth pairingSPST momentary N.O. with 20" (500 mm) leads1
Stereo phone JackAux input and cable3-conductor 3.5 mm with 20" (500 mm) leads1
DC coax jackDC input and cable2.1 x 5.5 mm with 20" (500 mm) leads1
Rocker SwitchOn-Off switch and cableSPST with 20" (500 mm) leads1
Gasket tapeGasket tape for underneath the outer diameter of the panel4.61" L x 0.39" W (117 x 10 mm)2
Gasket tapeGasket tape for underneath the outer diameter of the panel3.47" L x 0.39" W (88 x 10 mm)2

Product Details

BrandDayton Audio
ModelKAB-PMV3
Part Number325-116
UPC848791005367
Unit of MeasureEach
Weight0.47

Product Specifications

Board TypePanels & Mounting Acc.-Wiring Harness
Special FeaturesVolume / Tone Control
