CLEARANCE Dayton Audio HTA20BT Hybrid Stereo Tube Amplifier with Bluetooth 4.2 USB Aux In Headphone Sub Out

Dayton Audio
Part #300-3840

CLEARANCE Dayton Audio HTA20BT Hybrid Stereo Tube Amplifier with Bluetooth 4.2 USB Aux In Headphone Sub Out

Dayton Audio
Part #300-3840
Model: HTA20BT
Key Features
  • Tube warmth, class A/B power
  • Bluetooth 4.2, Aux, and USB inputs
  • Subwoofer output for adding an active subwoofer
  • High quality headphone amplifier built in
  • Extremely low THD less than 0.1% @ rated power
  • With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise

Overview

Dayton Audio HTA20BT Hybrid Stereo Tube Amplifier with Bluetooth 4.2 USB Aux In Headphone Sub Out

Modern Design Meets Vintage Sound

The Dayton Audio HTA20BT hybrid tube amplifier gives modern amp design a vintage makeover. Featuring the best of modern amp technology and functionality, the HTA20BT provides all of the convenience you to expect from an amp with the added benefit of classic vacuum tube sonic performance.



No Compromises

Debates may rage between whether solid-state or tube amplifiers produce a better listening experience; however, Dayton Audio solves the debate. By harnessing the best qualities of both, Dayton Audio's HTA20BT hybrid tube amplifier utilizes a classic A/B amp topology while employing vacuum tubes in the preamp circuit. The tubes' subtle character and warmth create a delightful homage to the classic valve amplifiers of the past.

Modern Connectivity with Vintage Flair



Flexibility & Power

With an output power rating of 12 watts per channel at 4 ohms, the HTA20BT packs a serious punch, perfect for almost any home audio listening system. The added convenience of Bluetooth ensures that your wireless streaming has the best possible quality and functionality. Front panel controls allow you to skip songs, play/pause, and change the input source.



Connected Versatility

Two rear-mounted RCA stereo inputs allow connections to analog input sources, Optical/Coaxial inputs for digital modes, as well as outputs for headphones, or an additional subwoofer! The HTA20BT also has a USB port that can play any kind of media, including MP3, WMA, WAV, and APE files.




Homage to the Classics

The modern design on the HTA20BT perfectly complement the sleek, brushed aluminum housing. Exposed tubes only add to the modernized vintage aesthetic of the HTA20BT. A large volume knob on the front panel gives you access to the control you need to dial in your perfect sound.



Sight & Sound

The classic beauty of the HTA20BT makes the amp a perfect centerpiece in your room, while the functionality, power, and superb audio quality make the amp perfect to drive any stereo setup. With the HTA20BT, you receive the best of both worlds in amp design and function, as well as vintage attractiveness. See and hear the difference the HTA20BT gives your audio system.




Control At Your Finger Tips



The HTA20BT gives you complete control from the front panel of the amp. Easily select input source, playback, and tone. Complete with an oversized volume knob, not only is the control at your fingertips, but the amp looks great.

1. Volume Knob

2. USB Media Slot

3. Play/Pause Media

4. Previous Media

5. Next Media

6. Stop Media

    7. Input Select

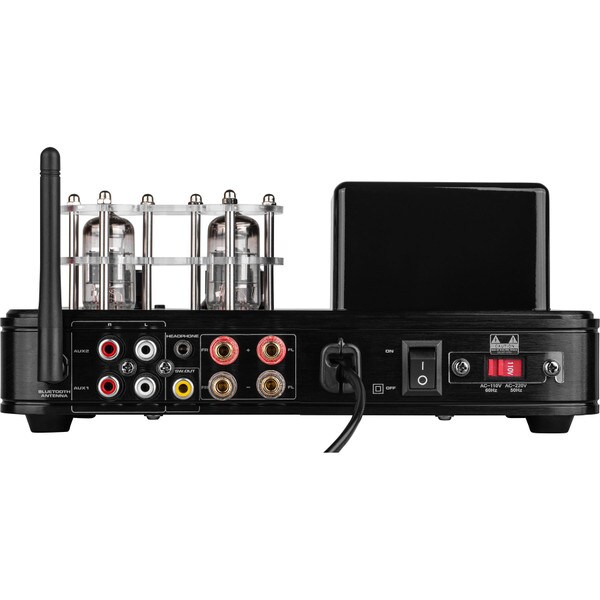

    All The Connections



    The HTA20BT provides a vast array of input options with virtually any input device. Stream from USB, Bluetooth, or connect via digital inputs, or an RCA Aux input. The HTA20BT also features a built-in phono preamp to enjoy your vinyl collection. Completed with a subwoofer output, the HTA20BT is perfect for a 2.1 system.

    8. Bluetooth Antenna

    9. Aux 2 Input

    10. Aux 1 Input

    11. Headphone Output

    12. Subwoofer Output

    13. Speaker Outputs

    14. Power Switch

    15. Power Input

    Specifications:

    • Power output: 12 WPC RMS @ 4 ohms
    • THD: 0.5% @ Rated Power
    • Minimum speaker impedance: 4 ohms
    • Channel separation: 65 dB
    • SNR: >80 dB
    • Frequency response: 20-20,000 Hz
    • Sub output: Fixed volume Preout for active subwoofer (HTA50BT is a full range amp with no internal crossover)
    • Preamplifier tube: 6F2 x 2
    • Transistors: Toshiba A1941 x 2, Toshiba C5198 x 2
    • Bluetooth: Version 4.2
    • Supports Bluetooth codecs: SBC and AAC
    • Media playback file support: FLAC, WAV, APE, WMA, MP3
    • Digital audio DAC SNR: 96 dB
    • Digital audio DAC sample rate: Up to 16-bit/48kHz
    • Input impedance: 47 kohms (minimum)
    • Input sensitivity: 300 mV
    • Power: 110/220 VAC, 50/60 Hz Standard IEC Connection
    • Fuse Rating (120v): 5x20mm 5AL
    • Dimensions: 4.2" x 9.2" x 6.18"


    Complete HTA Hybrid Tube Amp Collection


    Utilizing the efficiency of solid-state class A/B amplifier topology and a vacuum preamp section, the HTA series of amplifiers authentically reproduces the warmth and character of vintage tube amps with the added flexibility and functionality you expect from a modern amp.

    Shop the HTA Collection


    SPECHTA20BTHTA100BTHTA50BT
    Power Output:12WPC RMS @ 4 Ohms50WPC RMS @ 4 Ohms25WPC RMS @ 4 Ohms
    Frequency Response:20-20,000 Hz20-20,000 Hz20-20,000 Hz
    Amp Topology:Hybrid Tube / Class A/BHybrid Tube / Class A/BHybrid Tube / Class A/B
    Inputs:Bluetooth 4.2, 2 x Stereo RCA , USBUSB, Optical, Coaxial, Phono
    Bluetooth 5.0, Stereo RCA    		Optical, Coaxial, Bluetooth 5.0,
    2 x Stereo RCA, USB
    Outputs:Speaker, Subwoofer, HeadphoneSpeaker, SubwooferSpeaker, Subwoofer, Headphone
     SHOP NOWSHOP NOWSHOP NOW


    Product Details

    BrandDayton Audio
    ModelHTA20BT
    Part Number300-3840
    UPC848791005121
    Unit of MeasureEach
    Weight5.7

    Product Specifications

    Power (RMS/Channel 8 ohms)0 - 25 Watts
    Weight Range< 10 lbs.
    Special FeaturesBluetooth-USB Connectivity
