Dayton Audio HARB252-8 1" x 5" Dual Motor High Aspect Ratio Speaker Driver 8 Ohm

Dayton Audio
Part #295-246

Dayton Audio HARB252-8 1" x 5" Dual Motor High Aspect Ratio Speaker Driver 8 Ohm

Dayton Audio
Part #295-246
Model: HARB252-8

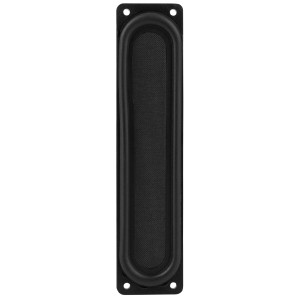

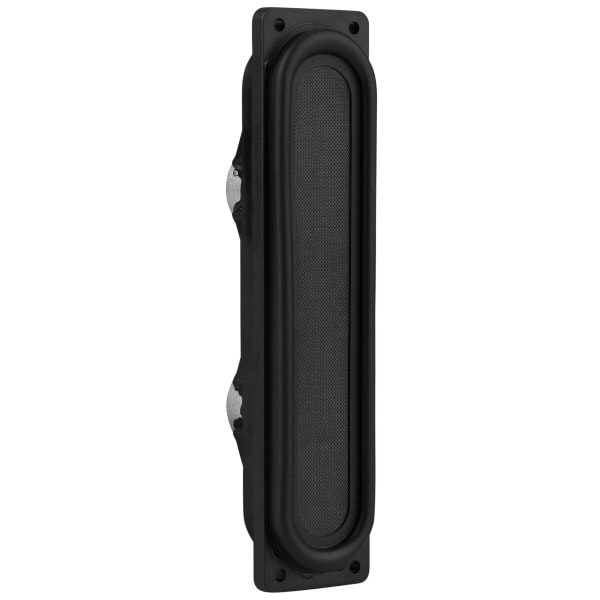

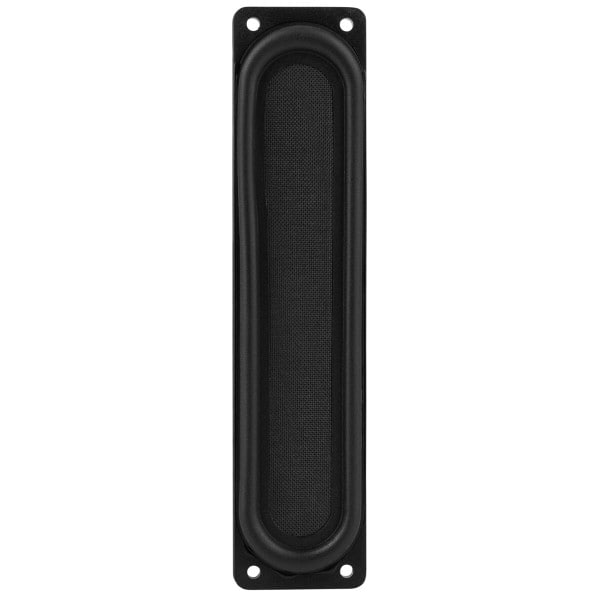

The Dayton Audio HARB252-8 1"x 5" full-range driver features a uniquely narrow form factor whose shape is implemented by employing tandem magnetic assemblies.
Key Features
  • High Aspect Ratio transducer fits in unconventional enclosures

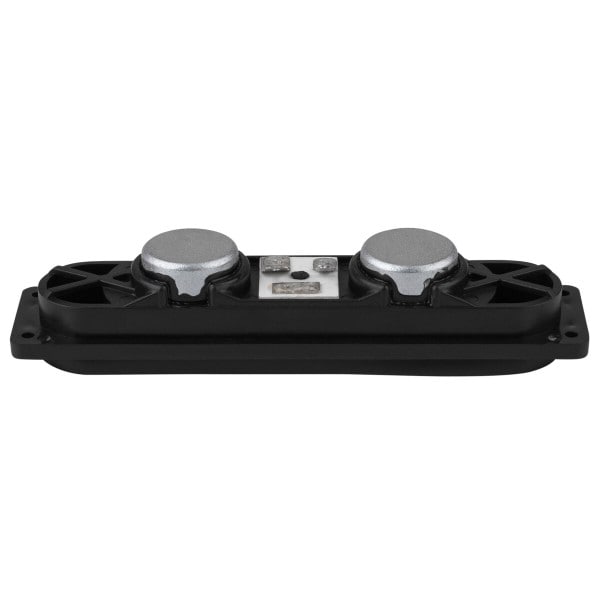

  • Dual neodymium magnet motors maintain narrow mounting profile
  • Amazing off-axis frequency response
  • Great for use in line arrays and low profile bar speakers
Your Price: $15.49
MSRP: $20.99
Save $5.50 (26%)
Bulk Pricing
Quantity:Qty: 1-3 $15.49/ea
Quantity:Qty: 4+$13.94/ea
Order in the next 7 hr 47 min to ship today. Details

36In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio HARB252-8 1" x 5" Dual Motor High Aspect Ratio Speaker Driver 8 Ohm

The unique shape and full frequency range of Dayton Audio's HARB252-8 1"x 5" dual motor full-range driver permits applications where other drivers simply won’t fit. Place it horizontally as the mid or full-range driver for a center channel/monitor stand, or vertically as a desk-top/computer speaker.

Product Details

BrandDayton Audio
ModelHARB252-8
Part Number295-246
UPC848791001871
Unit of MeasureEach
Weight0.2

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance8Ω
Frequency Response150 to 17,000Hz
Sensitivity77.2dB 2.83V/1m
Voice Coil Diameter0.63"

Thiele-Small Parameters

Resonant Frequency (Fs)172.11Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.09mH
Mechanical Q (Qms)4.23
Electromagnetic Q (Qes)2.98
Total Q (Qts)1.74
Compliance Equivalent Volume (Vas)0.01ft³
Mechanical Compliance of Suspension (Cms)0.305mm/N
BL Product (BL)3.039T·m
Diaphragm Mass Inc. Airload (Mms)3.24g
Maximum Linear Excursion (Xmax)1.25mm
Surface Area of Cone (Sd)21.03cm²

Materials of Construction

Cone MaterialFiberglass
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter1.185" x 5.15"
Baffle Cutout DiameterOval: 1" x 4.75"
Depth1.16"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.026ft³
Sealed F3128Hz
