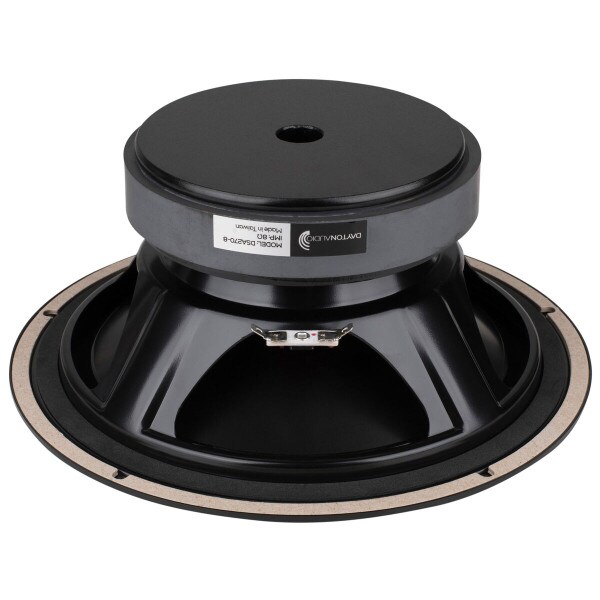

Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-532

Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-532
Model: DSA270-8
The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!
Key Features
  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring

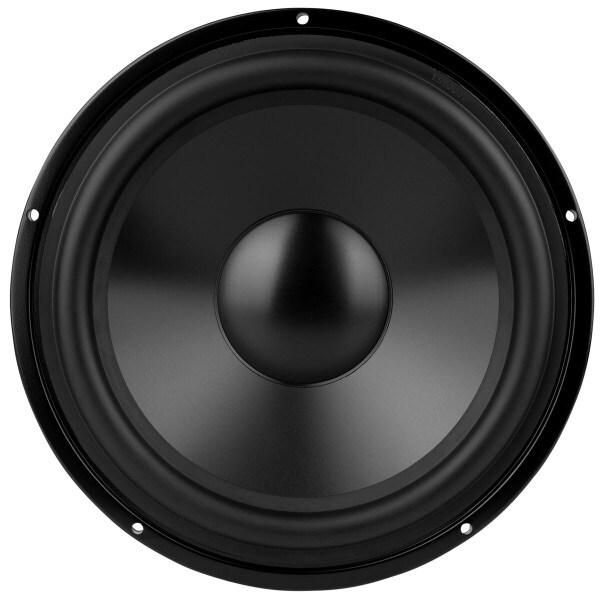

  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
Your Price: $99.98
+ FREE SHIPPING
MSRP: $116.99
Save $17.01 (15%)
Bulk Pricing
Quantity:Qty: 1-3 $99.98/ea
Quantity:Qty: 4+$90.51/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelDSA270-8
Part Number295-532
UPC848791002434
Unit of MeasureEach
Weight10.6

Product Specifications

Nominal Diameter10"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response29 to 6,000Hz
Sensitivity90.4dB 2.83V/1m
Voice Coil Diameter1.52"

Thiele-Small Parameters

Resonant Frequency (Fs)29.6Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)1.07mH
Mechanical Q (Qms)2.09
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)3.11ft³
Mechanical Compliance of Suspension (Cms)0.49mm/N
BL Product (BL)11.2T·m
Diaphragm Mass Inc. Airload (Mms)59.6g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)353cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.63"
Baffle Cutout Diameter8.94"
Depth4.41"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.9ft³
Sealed F360Hz
Vented Volume1.75ft³
Vented F337Hz
