Dayton Audio DSA135-PR 5" Designer Series Aluminum Cone Passive Radiator

Dayton Audio
Part #295-546

Dayton Audio DSA135-PR 5" Designer Series Aluminum Cone Passive Radiator

Dayton Audio
Part #295-546
Model: DSA135-PR

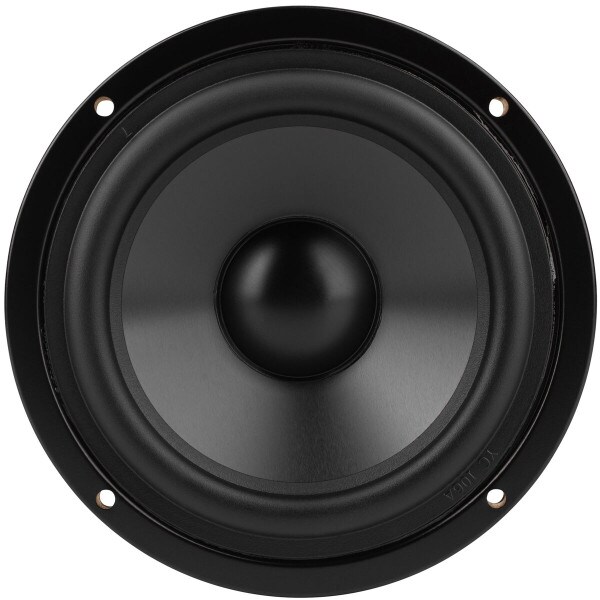

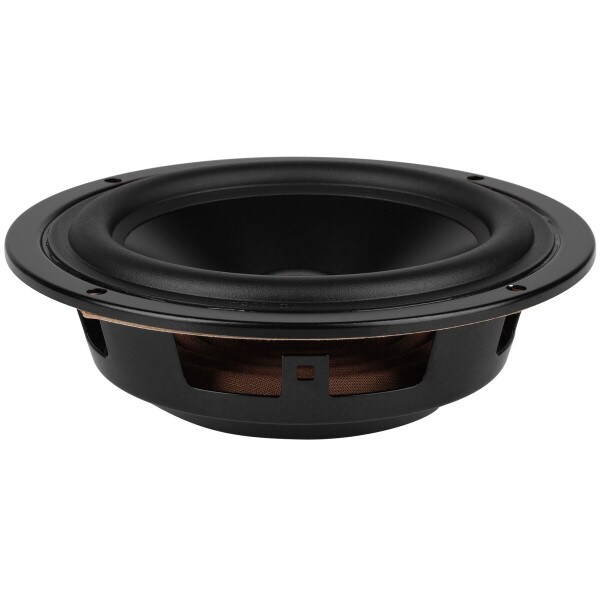

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.
Key Features
  • Perfect match for Dayton Audio's aluminum cone Designer Series drivers
  • Allows tuning small enclosures lower than using conventional ports

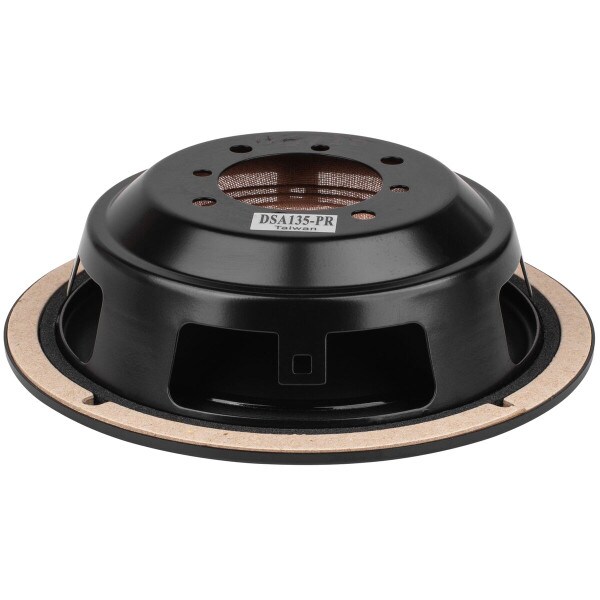

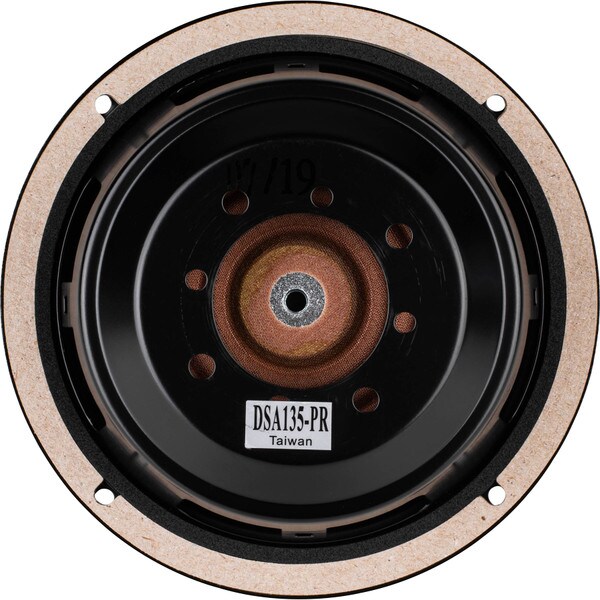

  • Rear mounted screw allows easy mass adjustment for custom tuning
  • Cosmetic frame edge looks great even when surface mounted
Your Price: $19.98
MSRP: $24.99
Save $5.01 (20%)
Bulk Pricing
Quantity:Qty: 1-3 $19.98/ea
Quantity:Qty: 4+$17.98/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DSA135-PR 5" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to portable battery powered speaker systems.

Specifications: • Fs: 27.9 Hz • Vas: 0.43 ft³ • Qms: 3.7 • Cms: 1.51 mm/N • Rms: 1.0 kg/s • Mms: 21.5 g • Sd: 75.4 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 5.31", Cutout diameter: 4.40", Depth: 1.5".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Product Details

BrandDayton Audio
ModelDSA135-PR
Part Number295-546
UPC848791005046
Unit of MeasureEach
Weight0.5

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter4.21

Thiele-Small Parameters

Resonant Frequency (Fs)27.9Hz
Mechanical Q (Qms)3.7
Compliance Equivalent Volume (Vas)0.43ft³
Mechanical Compliance of Suspension (Cms)1.51mm/N
Diaphragm Mass Inc. Airload (Mms)21.5g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)75.4cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialSteel

Mounting Information

Overall Outside Diameter5.31"
Baffle Cutout Diameter4.40"
Depth1.5"
# Mounting Holes4
