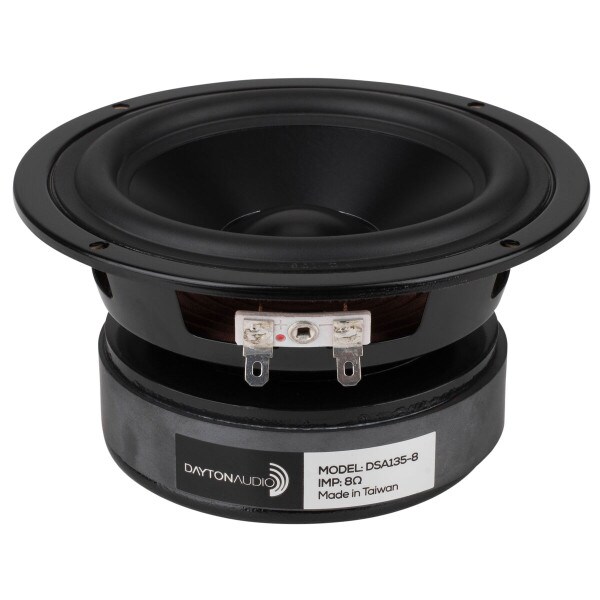

Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-526

Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-526
Model: DSA135-8
The Designer Series DSA135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.
Key Features
  • Cosmetic frame with low profile lip, designed for front mounting — no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
Your Price: $34.98
MSRP: $41.99
Save $7.01 (17%)
Bulk Pricing
Quantity:Qty: 1-3 $34.98/ea
Quantity:Qty: 4+$31.48/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Product Details

BrandDayton Audio
ModelDSA135-8
Part Number295-526
UPC848791002403
Unit of MeasureEach
Weight2.75

Product Specifications

Nominal Diameter5"
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance8Ω
Frequency Response51 to 9,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)51.81Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)0.78mH
Mechanical Q (Qms)2.04
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.28ft³
Mechanical Compliance of Suspension (Cms)0.99mm/N
BL Product (BL)6.22T·m
Diaphragm Mass Inc. Airload (Mms)9.5g
Maximum Linear Excursion (Xmax)4.9mm
Surface Area of Cone (Sd)75.4cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.31"
Baffle Cutout Diameter4.39"
Depth2.7"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.09ft³
Sealed F3108Hz
Vented Volume0.19ft³
Vented F361Hz
