Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-524

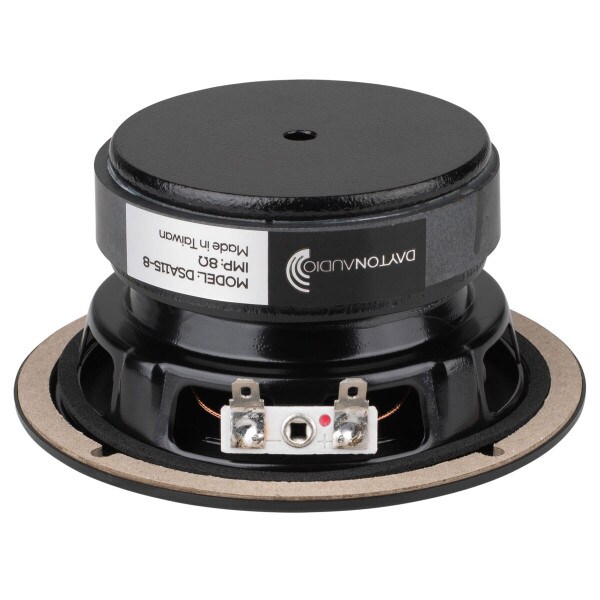

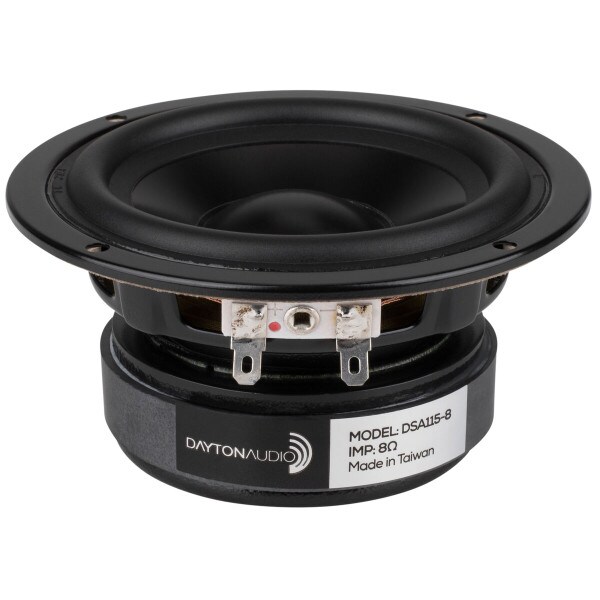

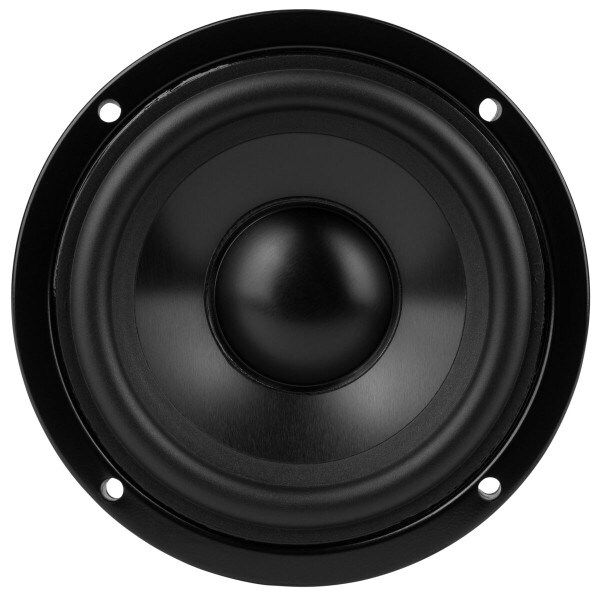

Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-524
Model: DSA115-8
More than just a pretty speaker, the Dayton Audio Designer Series DSA115-8 4" woofer features an extremely neutral response and high Xmax capability.
Key Features
  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
Your Price: $29.98
MSRP: $35.99
Save $6.01 (17%)
Bulk Pricing
Quantity:Qty: 1-3 $29.98/ea
Quantity:Qty: 4+$26.98/ea
Order in the next 1 hr 14 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelDSA115-8
Part Number295-524
UPC848791002397
Unit of MeasureEach
Weight1.85

Product Specifications

Nominal Diameter4"
Power Handling (RMS)35 Watts
Power Handling (MAX)70 Watts
Impedance8Ω
Frequency Response63 to 11,000Hz
Sensitivity86.1dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)63.25Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)0.63mH
Mechanical Q (Qms)2
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.42
Compliance Equivalent Volume (Vas)0.14ft³
Mechanical Compliance of Suspension (Cms)0.94mm/N
BL Product (BL)5.44T·m
Diaphragm Mass Inc. Airload (Mms)6.7g
Maximum Linear Excursion (Xmax)4.1mm
Surface Area of Cone (Sd)54.1cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.55"
Baffle Cutout Diameter3.69"
Depth2.15"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.09ft³
Sealed F3121Hz
Vented Volume0.14ft³
Vented F363Hz
