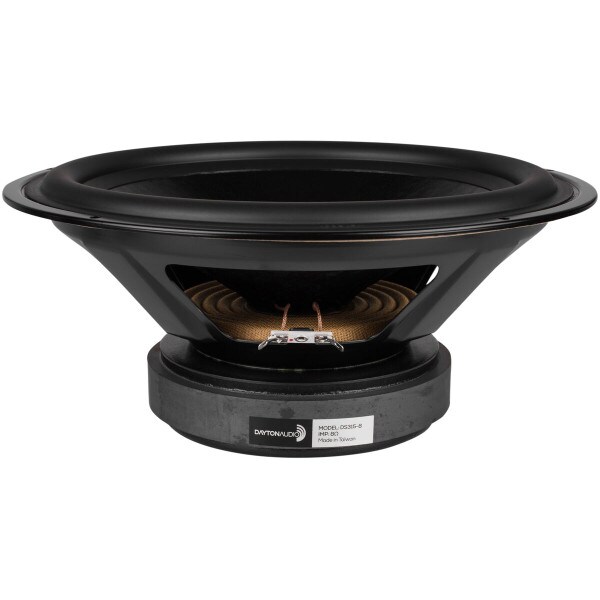

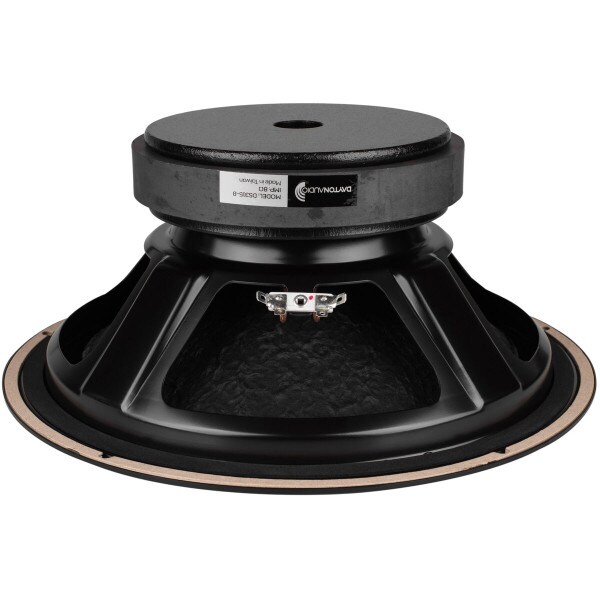

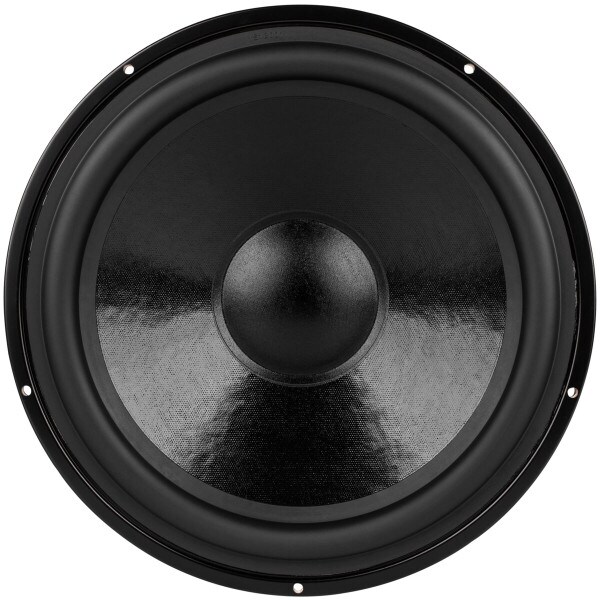

Dayton Audio DS315-8 12" Designer Series Woofer Speaker

Dayton Audio
Part #295-434

Dayton Audio DS315-8 12" Designer Series Woofer Speaker

Dayton Audio
Part #295-434
Model: DS315-8
Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DS315-8 12" woofer.
Key Features
  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
Your Price: $109.98
+ FREE SHIPPING
MSRP: $129.99
Save $20.01 (15%)
Bulk Pricing
Quantity:Qty: 1-3 $109.98/ea
Quantity:Qty: 4+$98.98/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DS315-8 12" Designer Series Woofer Speaker

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Product Details

BrandDayton Audio
ModelDS315-8
Part Number295-434
UPC844632095436
Unit of MeasureEach
Weight13.4

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.97
Power Handling (RMS)120 Watts
Power Handling (MAX)240 Watts
Impedance8Ω
Frequency Response25 to 2,500Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)24.2Hz
DC Resistance (Re)6.1Ω
Voice Coil Inductance (Le)1.43mH
Mechanical Q (Qms)1.79
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)5.62ft³
Mechanical Compliance of Suspension (Cms)0.44mm/N
BL Product (BL)15.6T·m
Diaphragm Mass Inc. Airload (Mms)97.4g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)506.7cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.36"
Baffle Cutout Diameter10.71"
Depth5.12"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F362Hz
Vented Volume2ft³
Vented F339Hz
