Dayton Audio DS115-8 4" Designer Series Woofer Speaker

Dayton Audio
Part #295-424

Dayton Audio DS115-8 4" Designer Series Woofer Speaker

Dayton Audio
Part #295-424
Model: DS115-8
More than just a pretty speaker, the Dayton Audio Designer Series DS115-8 4" woofer features an extremely neutral response and high Xmax capability.
Key Features

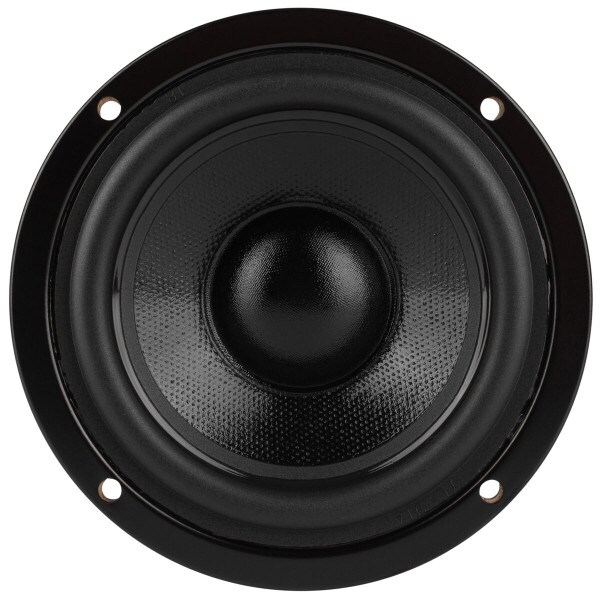

  • Coated paper cone, half roll rubber surround for durability and accurate reproduction

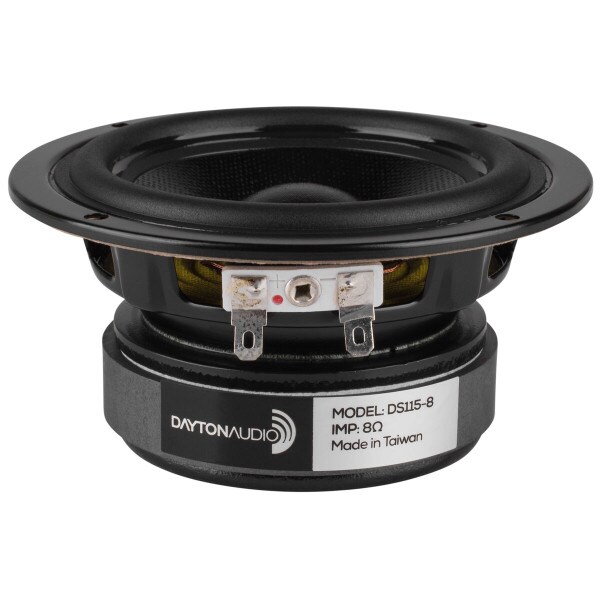

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet

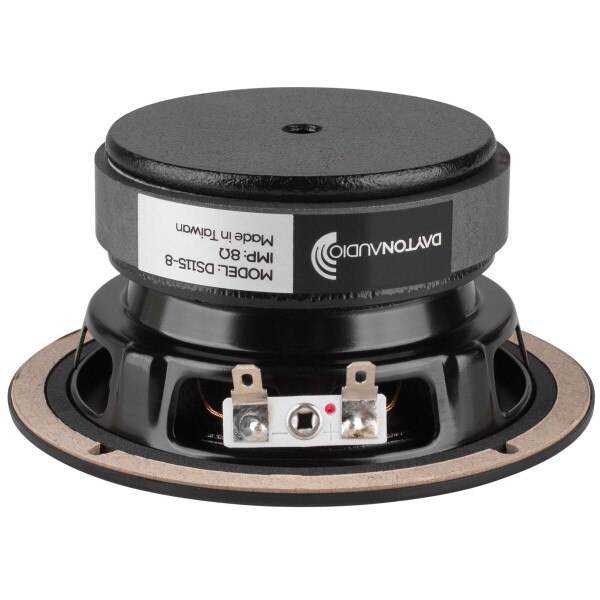

  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Smooth frequency response and linear roll-off simplify filter design, assuring good results with off-the-shelf crossovers
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
Your Price: $24.98
MSRP: $31.99
Save $7.01 (22%)
Bulk Pricing
Quantity:Qty: 1-3 $24.98/ea
Quantity:Qty: 4+$22.48/ea
Order in the next 8 hr 40 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DS115-8 4" Designer Series Woofer Speaker

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

• Suggested enclosures:

Sealed cabinet:Type: Closed (alpha 1.9), Qtc 0.55; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9"H x 5-1/2"W x 3-1/2"D. Typical results:3 dB down-point (f3): 135 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 70 Hz.

Vented cabinet:Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.12 ft³; Internal cabinet dimensions (golden ratio): 9-1/2"H x 5-7/8"W x 3-5/8"D; Port dimensions (with flared exit): 1" dia. x 6"L. Typical results:3 dB down-point (f3): 73 Hz; Tuning frequency (fb): 69 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 55 Hz.

Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.

Product Details

BrandDayton Audio
ModelDS115-8
Part Number295-424
UPC844632095382
Unit of MeasureEach
Weight1.85

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.21
Power Handling (RMS)35 Watts
Power Handling (MAX)70 Watts
Impedance8Ω
Frequency Response60 to 8,000Hz
Sensitivity85.3dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)55.2Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)0.8mH
Mechanical Q (Qms)2.1
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.15ft³
Mechanical Compliance of Suspension (Cms)1.05mm/N
BL Product (BL)5.88T·m
Diaphragm Mass Inc. Airload (Mms)7.9g
Maximum Linear Excursion (Xmax)4.1mm
Surface Area of Cone (Sd)54.1cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.55"
Baffle Cutout Diameter3.69"
Depth2.15"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.07ft³
Sealed F3135Hz
Vented Volume0.12ft³
Vented F365Hz
