Dayton Audio DMA105-PR 4" DMA Series Passive Radiator

Dayton Audio
Part #295-597

Dayton Audio DMA105-PR 4" DMA Series Passive Radiator

Dayton Audio
Part #295-597
Model: DMA105-PR

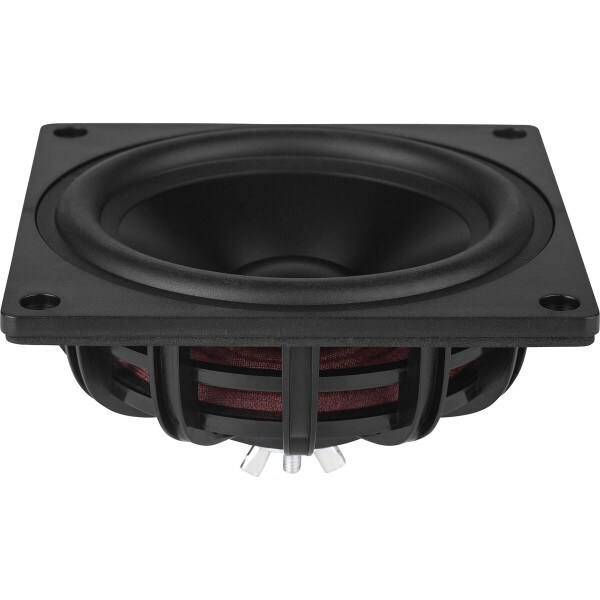

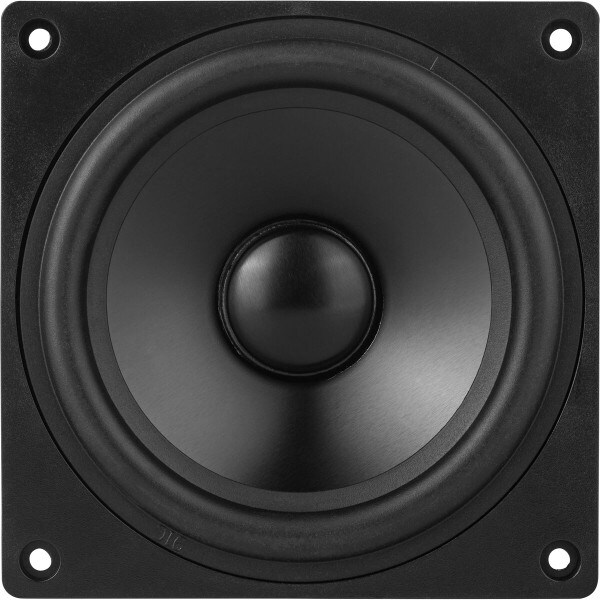

Dayton Audio's DMA105-PR 4" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.
Key Features
  • Perfect match for the Dayton Audio DMA series drivers
  • Allows tuning small enclosures lower than possible using conventional ports

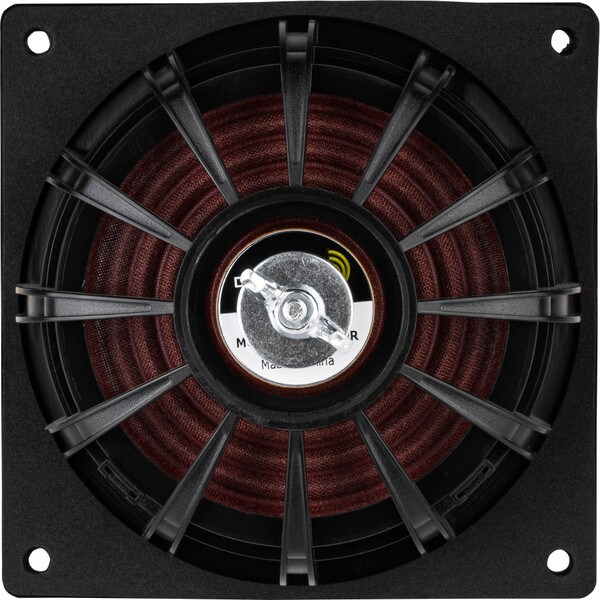

  • Rear mounted threaded post allows easy mass adjustment for custom tuning
  • DIY friendly, oversized mounting flange makes installation simple
Your Price: $10.98
MSRP: $14.99
Save $4.01 (27%)
Bulk Pricing
Quantity:Qty: 1-3 $10.98/ea
Quantity:Qty: 4+$9.88/ea
Order in the next 11 hr 2 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DMA105-PR 4" DMA Series Passive Radiator

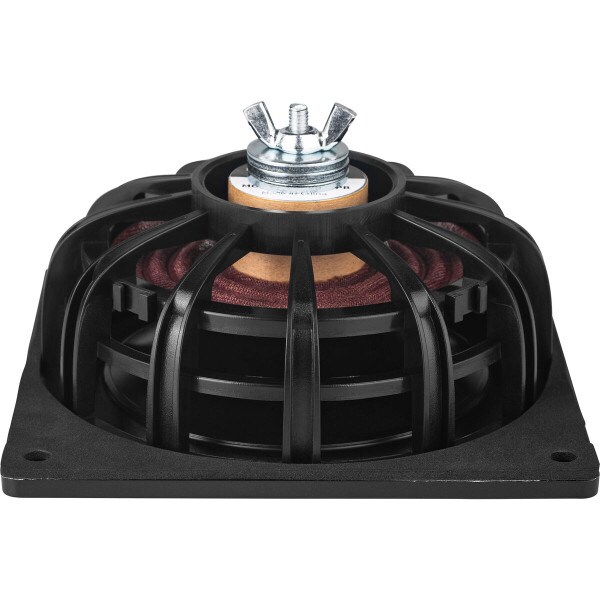

The DMA105-PR 4" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA105-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA105-PR introduces a new range of possibilities.

Specifications: • Fs: 37.9 Hz • Vas: 0.089 ft³ (2.51 liters) • Qms: 7.80 • Cms: 0.60 mm/N • Mms: 29.3 g • Rms: 0.89 kg/s • Sd: 54.1 cm² • Xmech: 9 mm • Dimensions: Overall diameter: 4.1" x 4.1", Cutout diameter: 3.875", Depth: 2.17".

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Product Details

BrandDayton Audio
ModelDMA105-PR
Part Number295-597
UPC848791005657
Unit of MeasureEach
Weight0.3

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter5

Thiele-Small Parameters

Resonant Frequency (Fs)37.9Hz
Mechanical Q (Qms)7.8
Compliance Equivalent Volume (Vas)0.089ft³
Mechanical Compliance of Suspension (Cms)0.6mm/N
Diaphragm Mass Inc. Airload (Mms)29.3g
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)54.1cm²

Materials of Construction

Basket / Frame MaterialPolymer

Mounting Information

Overall Outside Diameter4.1" x 4.1"
Baffle Cutout Diameter3.875"
Depth2.17"
# Mounting Holes4
