  • Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer

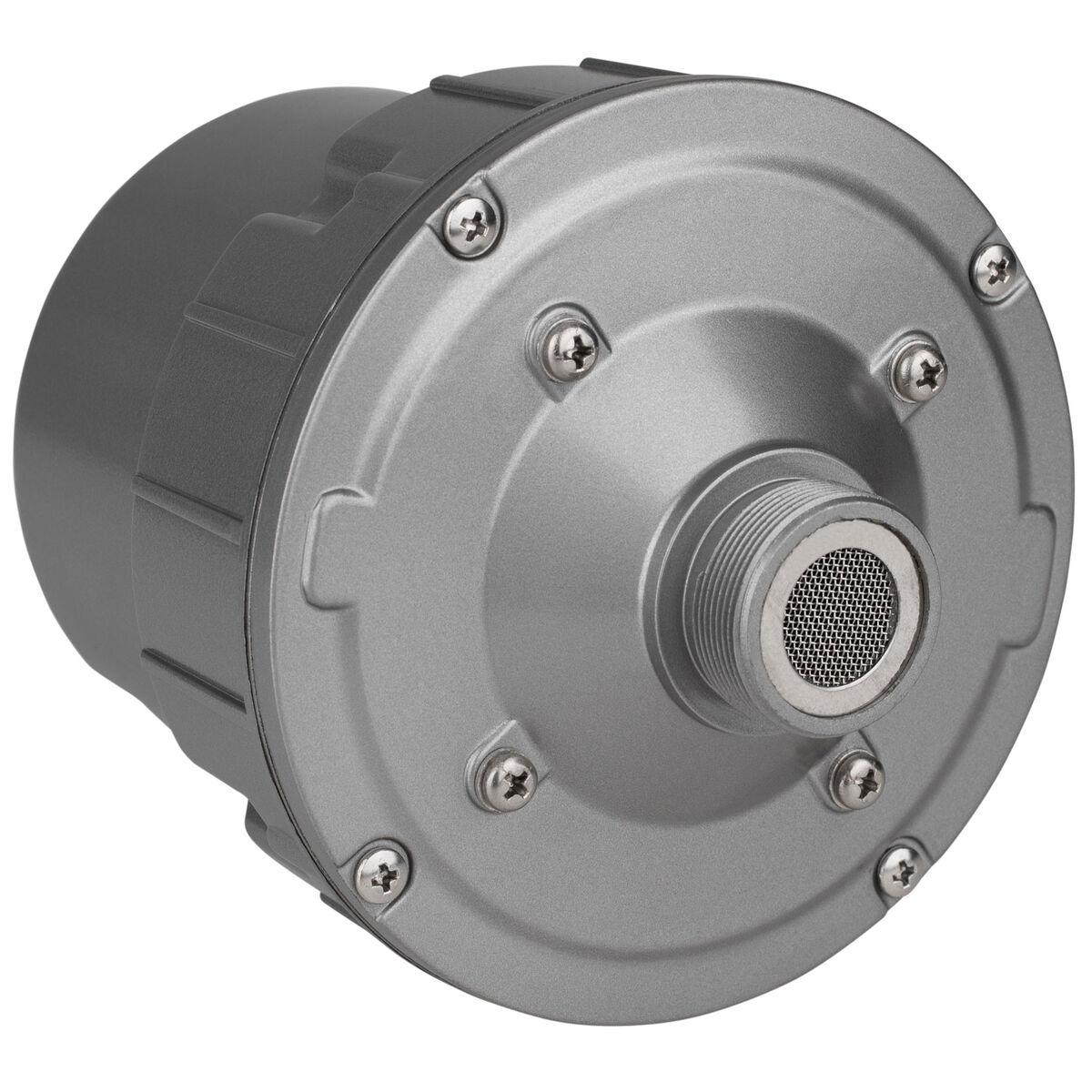

Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer

Dayton Audio
Part #300-190

Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer

Dayton Audio
Part #300-190
Model: D1075T
For more than a decade, the D1075T horn driver from Dayton Audio has been a workhorse for those in the know. A stout, weather resistant design makes it an ideal public address driver for outdoor stadiums, sports fields and complexes, while superior sound quality makes it a welcome addition to any PA system.
Key Features
  • 75 watts RMS power handling capacity
  • Durable phenolic-impregnated diaphragm
  • Low distortion, high output
  • Multiple transformer taps match driver to any system
  • Five-year warranty
  • Standard 1-3/8"-18 threaded mounting
  • Vintage Leslie Speaker Horn Replacement
Similar items that may interest you:
See all items in PA Horn Drivers
Your Price: $44.98
MSRP: $71.99
Save $27.01 (38%)
Bulk Pricing
Quantity:Qty: 1-3 $44.98/ea
Quantity:Qty: 4+$40.48/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer

Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer

Perfect for PA and tough as a two-dollar steak

Contractors, installers, and other audio professionals appreciate the rugged durability that's evident in the D1057T's materials and engineering. It uses a phenolic-impregnated cloth diaphragm (field replaceable, by the way) to provide crisp, articulate sound. A cast aluminum faceplate, gasketed plastic rear housing, and stainless steel hardware ensure long-term reliability, indoors or out. That's important when your customer is counting on you to do the job right. And we all know, when the customer feels you’ve done the job right, they tell their friends. So next time you get a call to bid on an outdoor stadium or sports facility, do your customer a solid, and use the D1075T.

Key Specs:



  • Exit Diameter:  1"
  • Power Handling (RMS): 25W, 30W, 50W, 75W
  • Impedance: 70v
  • Frequency Response: 200 - 8000 Hz
  • Sensitivity: 107 dB 1W/1m
  • Voice Coil Diameter: 2"
  • Voice Coil Material: Kapton / Copper
  • Full Specifications   Manual


    •

Frequency and Impedance Responses

The Dayton Audio DA1075T has a response that lends itself well for paging and PA use due to its efficiency in the frequency range of human voices and midrange detail of stringed instruments. The impedance curve of the DA1075T is easily manageable for versatile, simple system designing!

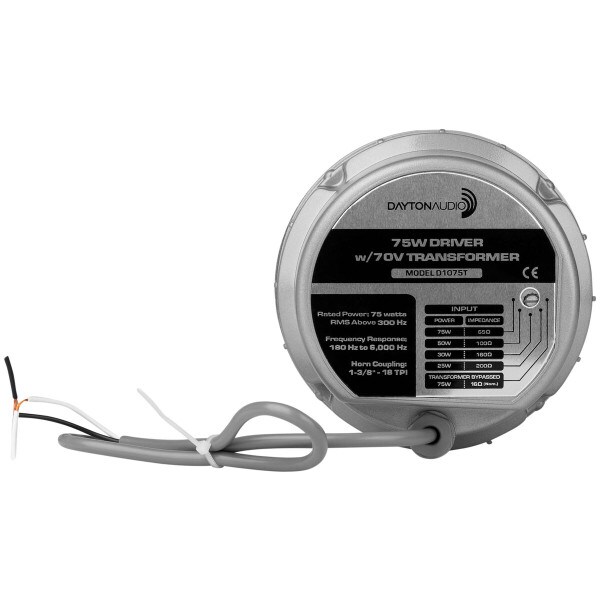

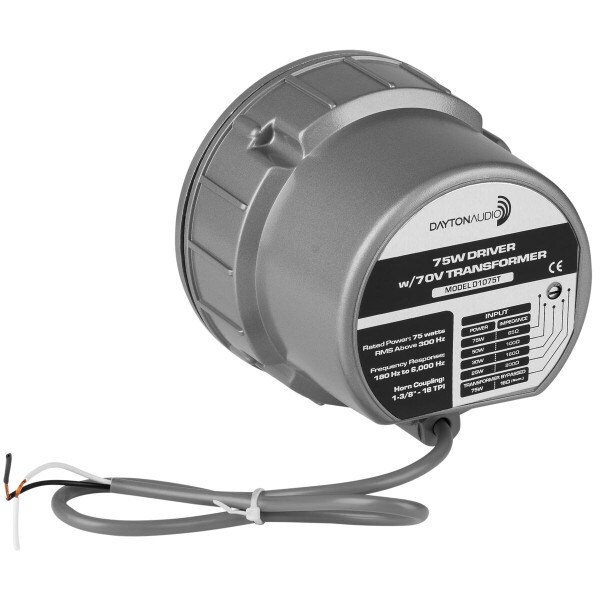

Integrated 70V Transformer



The Dayton Audio D1075T is ready to install anywhere! With its' built-in 70V transformer, selectable taps allow you to customize the output of each speaker to suite a multitude of locations and circumstances. Use the higher rated taps for tall vaulted ceilings or anywhere you need high SPL requirements, the lower rated taps are available for use with setups that have lower SPL requirements such as walking paths or information booths!



Salt-Spray Tested



Contractors, installers, and other audio professionals can feel confident in the D1075T’s materials and engineering. A cast aluminum faceplate, gasketed rear housing, and stainless-steel hardware ensure long-term reliability, indoors or out. Dayton Audio has even gone a step further in the development of the D1075T with long-term environmental testing, ensuring the longevity and durability of your investment.





We've Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Learn More

Shop All Dayton Audio 70V Horn Drivers

Dayton Audio's D1075T 70V horn driver has been a top seller and industry staple for contractors, installers, and other audio professionals for many years. Due to that success, Dayton Audio has expanded the 70V driver line by adding the D40T and D100T. Dayton Audio has garnered an outstanding reputation over the years because they consistently deliver high-quality products at very reasonable prices for installers like you!




D40T

  • Power Rating: 5W, 10W, 20W, 40W
  • Frequency Response: 200Hz-8kHz
    • Shop Now

D1075T


  • Power Rating: 25W, 30W, 50W, 75W
  • Frequency Response: 200Hz-8kHz
    • Shop Now

D100T


  • Power Rating: 12.5W, 25W, 50W, 100W
  • Frequency Response: 200Hz-8kHz
    • Shop Now


Don't Trust Us...Trust Our Customers



WOW!!!

This has got to be the best high performance horn driver that I ever used. I attached these drivers to the Dayton 16" horns and all that I can say is WOW!! I'm truly impressed and should have purchased these drivers and horns when I first saw them offered at parts express. The clarity, power, and easy transformer matching, make these Dayton drivers and horns, the best bang for any buck. Definitely money well spent. I will uses these for future applications as more totally awesome sound coverage arises. -DJDOUG



Learn More
Request Quote



Additional Resources

We pride ourselves on being an authority in the speaker building and DIY community. With over 60 years of combined engineering experience, our team of engineers is here to help with your build. Below are some useful tools to get you started.

Resource Center

Woofer Selection Guide

We've made it easier to find the woofer that fits your specific application, whatever that may be. This guide contains every woofer we carry, along with suggested optimum box dimensions, countless driver parameters, and more. All of this is contained in an easy-to-use, sortable guide to help you choose the perfect woofer.

Learn More

Woofer Replacement Tool

Easily replace damaged or worn out drivers in you speaker system to bring them back to their former glory. The Woofer Replacement Tools helps you determine the correct woofer to replace your current driver. This easy to use tool will get your speaker system back up and running quickly.

Learn More

Speaker Building Glossary

Build your speaker building knowledge with a vast glossary of all speaker and speaker building terminology you will encounter.

Learn More

Build Your Own Speaker

To answer some of the questions you may have concerning loudspeaker design that  takes you step by step through the build.

Learn More


THE Definitive Collection...The Speaker Building Bible

Through out the years, we have collected the best resources into the Speaker Building Bible. Click the link below to do a deep dive into speaker building.


Read More



Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandDayton Audio
ModelD1075T
Part Number300-190
UPC844632008009
Unit of MeasureEach
Weight6.3001

Product Specifications

Diaphragm MaterialKapton / Polyimide
Exit Diameter1"
Mounting Type1-3/8"-18 TPI
Power Handling (RMS)75 Watts
