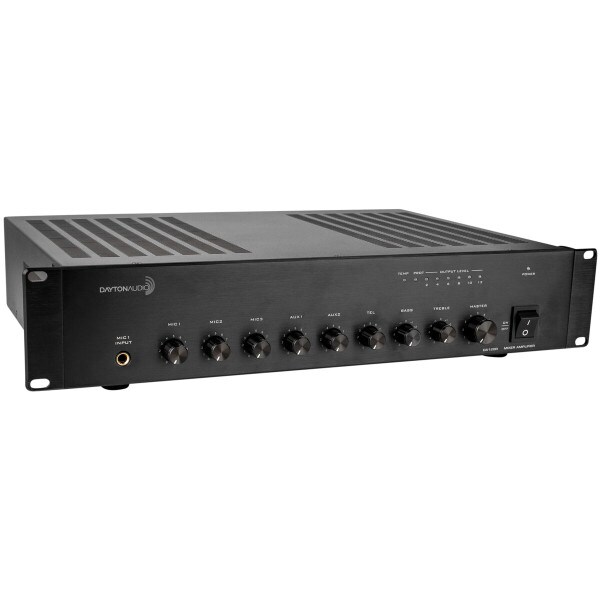

Dayton Audio DA120R Commercial Audio Amplifier 120W 70V/ 100V/ 4 Ohm Mixer - 3 Mic 2 Aux 1 Telephone input

Dayton Audio
Part #300-6608

Dayton Audio DA120R Commercial Audio Amplifier 120W 70V/ 100V/ 4 Ohm Mixer - 3 Mic 2 Aux 1 Telephone input

Dayton Audio
Part #300-6608
Model: DA120R
This amp is the workhorse of the Dayton Audio commercial amplifier line-up! With 120 watts of power, high or low impedance output, and an easy-to-use design, all wrapped up in a sleek 2RU chassis, the DA120R from Dayton Audio is the perfect commercial mixer amplifier solution for many installs or expansions. You can count on Dayton audio amps to deliver great performance day in and day out!

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
Key Features
  • Most Reliable Background Music and PA amp on the market

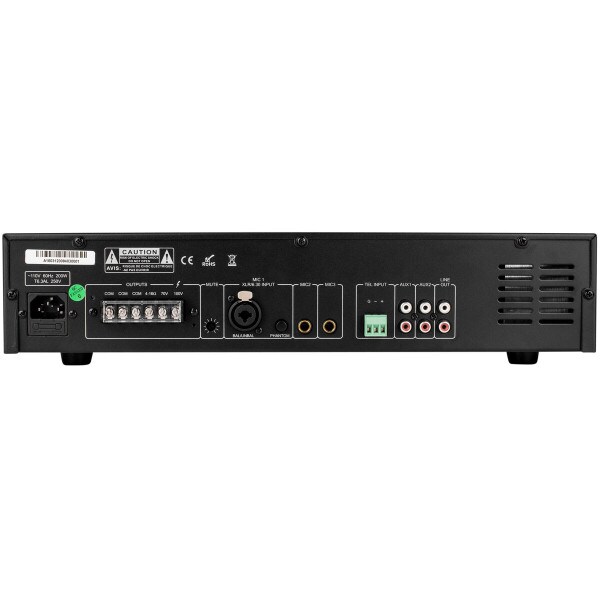

  • 2 x 1/4" Mic and XLR/TRS Mic, 2 x RCA Aux, and terminal block Tel inputs
  • Line output for easy integration with additional equipment
  • Priority music muting for Mic 1 (adjustable) and telephone inputs
  • Flexible 70V / 100V or 4 - 16 ohm compatibility
  • With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise
  • Run up to 60 speakers tapped at 2 Watts
Your Price: $324.98
+ FREE SHIPPING
MSRP: $369.99
Save $45.01 (12%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DA120R Commercial Audio Amplifier 120W 70V/ 100V/ 4 Ohm Mixer - 3 Mic 2 Aux 1 Telephone input

The DA120R is a hard working versatile amp! All Dayton Audio commercial amps are built to stand up to heavy every day use. The Dayton Audio commercial amps are some of the only ones in the industry that come with a 5 year warranty. The entire lineup of Dayton Audio commercial mixer-amps are ideal for addind PA and background music for commercial installs in schools, hospitals, retail stores, convenience stores warehouse PA's, gas stations, . The DA120R is great for adding additional power and inputs to existing systems, or basically anywhere a smaller amp just won't cut the mustard.

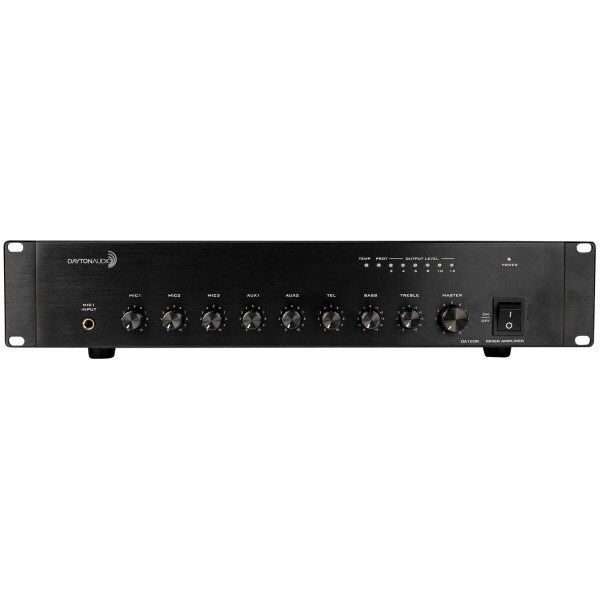

The DA120R provides 120 watts of power for speakers which can be 70V, 100V, or 4 - 16 ohm speakers. Six inputs allow for three microphones, two line level inputs (BGM / Aux), and telephone paging with level controls for each input on the front panel. Bass and treble controls and Master volume are also present, so you can tailor the response to suit your specific needs.

Priority muting temporarily "ducks" your background music (BGM) or other material when the Mic 1 input or the telephone input receives signal. For Mic 1, the level of reduction is adjustable from 0 - 20 dB. The Mic 1 input also offers +48V phantom power, which may be engaged or disengaged as needed. Line output is delivered via RCA jacks to feed signal to outboard equipment such as a recorder or additional zone amplifier.

Dayton Audio's new commercial mixer-amps have a no-nonsense design for easy installation and use, and several power levels to choose from, so you're sure to find one that meets your needs. Features like 70V/100V or 4 - 16 ohm output and mic/telephone priority muting provide maximum flexibility. And, with the same uncompromising standards of quality and value you've come to expect from Dayton Audio, you know it will be sounding great for years to come.

Specifications: • Maximum power output: 120W (1% THD) • Speaker output: 70V, 100V, 4 -16 ohm (mono, not to be used with mixed impedance loads) • Frequency response: 50 - 18,000 Hz • Mic input sensitivity/impedance: 5 mV, 600 ohms • Aux input sensitivity/impedance: 350mV, 10k ohms • Tel input sensitivity/impedance: 350mV, 10k ohms • Phantom power: +48V, switchable • Power input: 110 VAC, 60 Hz • Maximum power consumption: 100W • Dimensions: 19" W x 11.93" D x 3.466" H (484 x 303 x 88 mm) • Weight: 17.2 lbs. (7.8 kg).

With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandDayton Audio
ModelDA120R
Part Number300-6608
UPC848791002311
Unit of MeasureEach
Weight23.6

Product Specifications

Power Output (RMS @ 70V)101W to 200W
Weight Range10 to 19 lbs.
