NEW Dayton Audio CF50N-4MP 2" Carbon Fiber Dome Midrange Matched Pair 4 Ohm

7 Questions, 8 Answers or
Dayton Audio
Part #285-410

NEW Dayton Audio CF50N-4MP 2" Carbon Fiber Dome Midrange Matched Pair 4 Ohm

Dayton Audio
Part #285-410
Model: CF50N-4MP
7 Questions, 8 Answers or
When you have minimal space but need high-performance midrange, Dayton Audio’s frequency matched pair of CF50N-4MP 2” carbon fiber dome midrange drivers are the perfect choice. These compact 4-ohm drivers combine 2” woven carbon fiber diaphragms with powerful neodymium motors to produce smooth and dynamic response. Also featuring cast aluminum faceplates, rubber surrounds, vented aluminum voice coil formers, damped rear chambers, and integrated grills, the CF50N-4MP offer big performance without needing a lot of space. Matched to within ±1 dB from 300 to 6,000 Hz.
Key Features
  • Matched frequency response pairs (±1 dB, 300 to 6,000 Hz) ensure pinpoint imaging and accurate soundstage
  • Woven carbon fiber dome and rubber surround deliver accurate response
  • Damped rear chamber lowers Fs and help smooth response
  • Powerful neodymium motor allows compact size and delivers high efficiency
  • Vented aluminum voice coil former helps dissipate heat for lower power compression
  • Rigid cast aluminum faceplate provides a solid and air-tight mounting flange

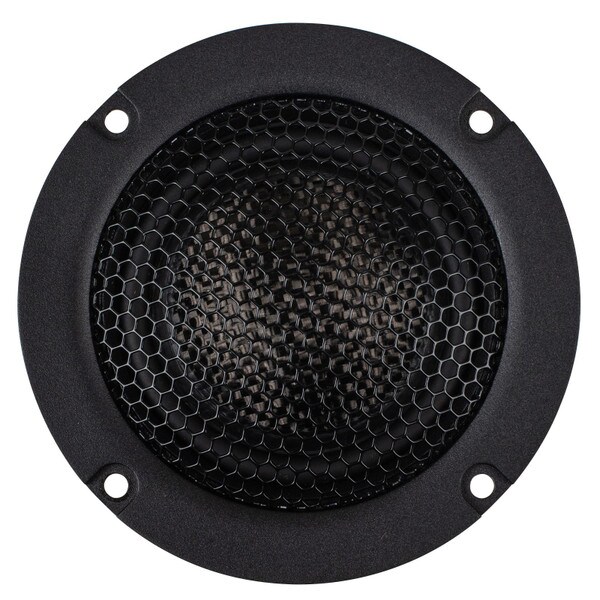

  • Integrated grill protects the dome from foreign objects and curious fingers
NEW $129.98
+ FREE SHIPPING
MSRP: $199.99
Save $70.01 (35%)
Bulk Pricing
Quantity:Qty: 1-3 $129.98/ea
Quantity:Qty: 4+$110.48/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio CF50N-4MP 2" Carbon Fiber Dome Midrange Matched Pair 4 Ohm

The matched pair of Dayton Audio CF50N-4MP combines 2” carbon fiber domes with high-energy neodymium motors to deliver accurate midrange response from incredibly compact packages. Sold as a frequency response matched pair (±1 db, 300 to 6,000 Hz), the CF50N-4MP ensures that your system will produce optimal imaging with a wide soundstage. The lightweight but rigid diaphragms have been optimized for wide dispersion and controlled response throughout the pass band. Rubber surrounds keep the domes centered while damping the edge of the diaphragms to keep any unwanted resonances well outside of the pass band. Finally, the cast aluminum faceplates have been designed to reduce diffraction and keep the off-axis response consistent and predictable. Offering low distortion with smooth response from 500 to 6,000 Hz, these midrange drivers are perfect for small 3-way designs and car audio installations.

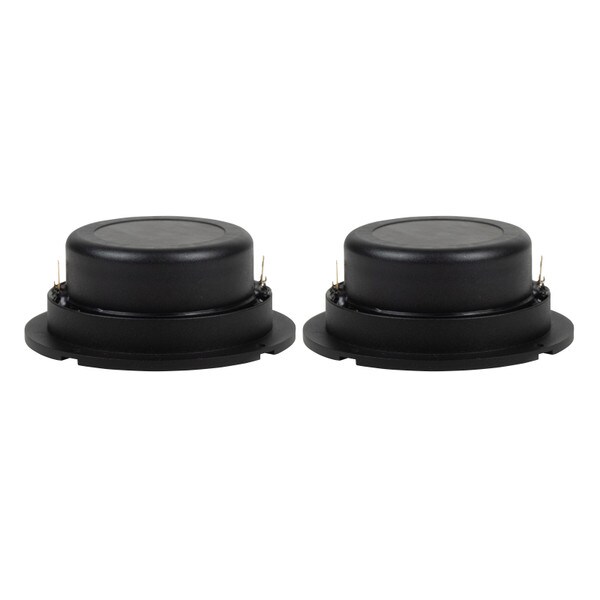

Powerful neodymium motors keep each CF50N-4MP under 4” diameter without sacrificing efficiency or output capability. With 2” diameter vented aluminum formers, the voice coils can efficiently dissipate excess heat for high power handling without suffering from significant power compression. The damped rear chambers keep the drivers isolated for easy installation while minimizing internal reflections resulting in smoother response. Finally, the cast aluminum faceplates include integrated grills to protect the delicate domes from damage.

Combining advanced materials and technology, the flexible CF50N-4MP from Dayton Audio deliver excellent midrange reproduction without taking up much space. Capable of wide dispersion, high output, and low distortion, the CF50N-4MP will be right at home in everything from home theater speaker systems to sound quality based car audio installs.

Product Details

BrandDayton Audio
ModelCF50N-4MP
Part Number285-410
UPC848791010620
Unit of MeasurePairs
Weight1.97

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter3.62
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance4Ω
Frequency Response500 to 6,000Hz
Sensitivity91.5dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)345Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.06mH
Mechanical Q (Qms)4.09
Electromagnetic Q (Qes)0.82
Total Q (Qts)0.68
Surface Area of Cone (Sd)19.6cm²

Materials of Construction

Cone MaterialWoven Carbon Fiber
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.94"
Baffle Cutout Diameter3.27"
Depth1.57"
# Mounting Holes4
