Dayton Audio 18" Ultimax II with 4 Ft³ Cabinet DIY Home Theater Subwoofer Kit

Dayton Audio
Part #300-7220

Dayton Audio 18" Ultimax II with 4 Ft³ Cabinet DIY Home Theater Subwoofer Kit

Dayton Audio
Part #300-7220
Experience the true power of bass with the Ultimax II 18” subwoofer kit. This kit makes it effortless to create a low-distortion subwoofer that delivers breathtaking output and incredible low-frequency extension. Constructed with rugged 3/4” MDF, the innovative knock-down enclosure features an interlocking bracing system and a robust 2-layer 1-1/2” baffle, ensuring durability and performance. Whether you’re designing a grand home theater or a high-output music setup, this kit is your ultimate solution for achieving the true bass experience you desire. Elevate your audio game—choose Ultimax II 18” subwoofer kit.
Key Features
  • High excursion 18” Ultimax II driver delivers low distortion and excellent output capability
  • CNC cut 3/4” MDF knock-down enclosure is designed for optimum sealed box performance
  • Dadoes and rabbets keep panels aligned for easy assembly
  • Bass extension, low distortion, and flat response makes this a great choice for music and home theater systems
  • Gives you the opportunity to finish the enclosure to match almost any decor
Similar items that may interest you:
Your Price: $519.98
+ FREE SHIPPING
MSRP: $699.98
Save $180.00 (26%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio 18" Ultimax II with 4 Ft³ Cabinet DIY Home Theater Subwoofer Kit

Dayton Audio 18" Ultimax II DIY Subwoofer Kit

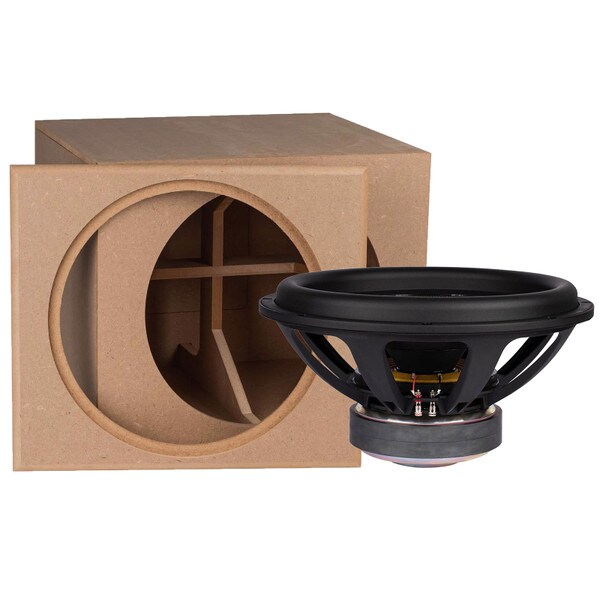

Build the ultimate subwoofer capable of moving over six and a half liters of air with each stroke! Truly not for the faint of heart! This kit includes a 4 cubic foot CNC-machined subwoofer cabinet and the Dayton Audio UMII18-22 18" subwoofer.

Features:

  • 18" Ultimax II driver with over 2" of total cone travel to move up to 6-1/2 liters of air

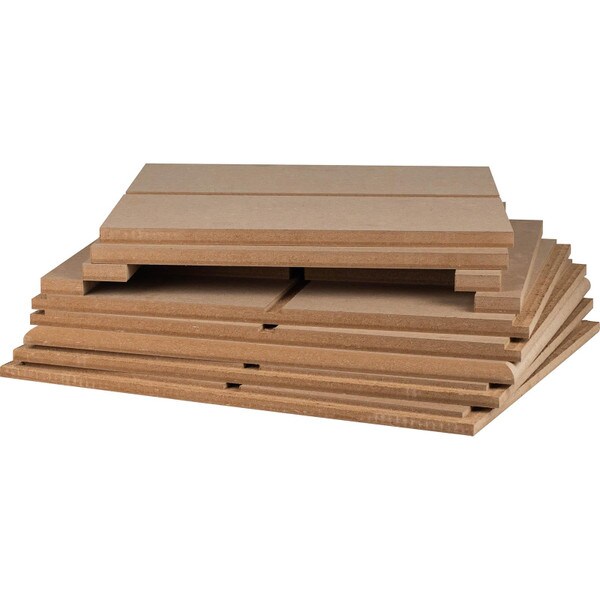

  • 4.0 cubic foot CNC-cut cabinet made of 3/4" MDF panels with a 1-1/2" thick front baffle
  • Internal bracing ties every side together for minimal panel resonance
  • Rabbeted corners and internal dado joints makes assembly easier than ever
  • Excellent sealed low frequency extension: F3 = 35 Hz and F10 = 21 Hz

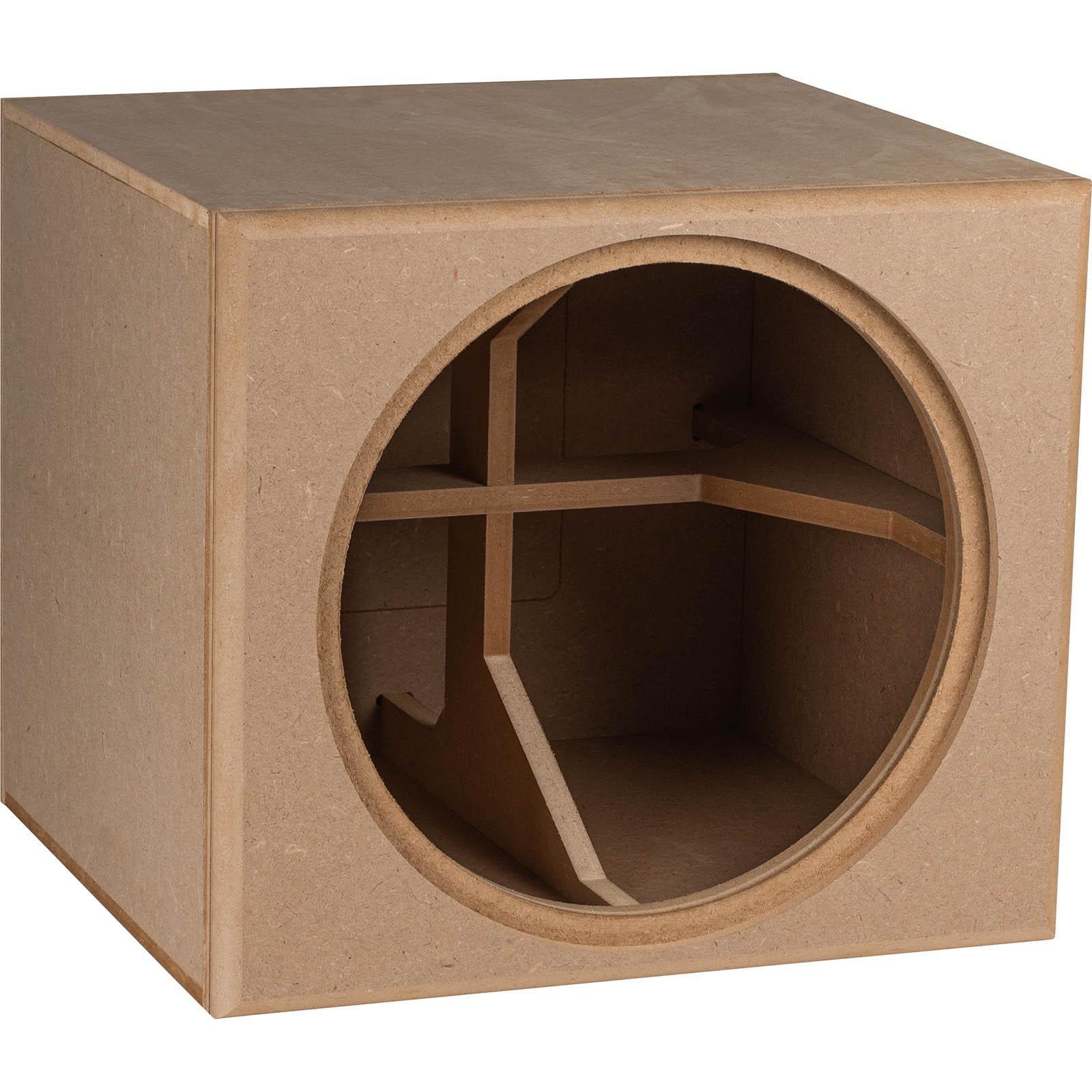

About the Cabinet

This compact cabinet is designed specifically for the Dayton Audio 18" Ultimax II subwoofer. This 4 ft³ enclosure uses precision CNC cut 3/4" MFD panels to ensure simple assembly and a rigid cabinet. The interlocking bracing ties every side together to keep panel resonance to a minimum. In addition, the stacked front baffle is 1-1/2" thick giving you and extremely solid surface to install the heavy Ultimax II 18" driver.

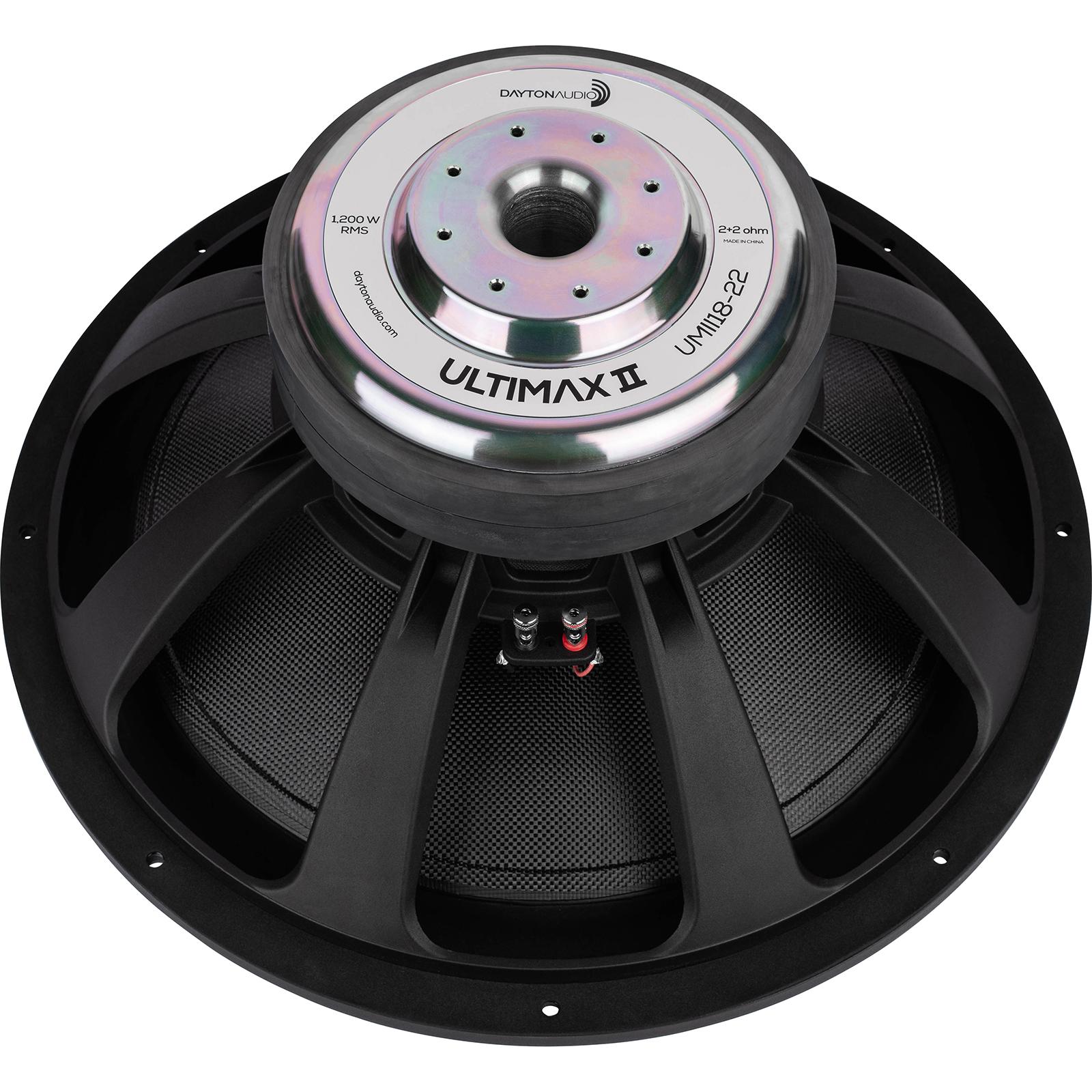

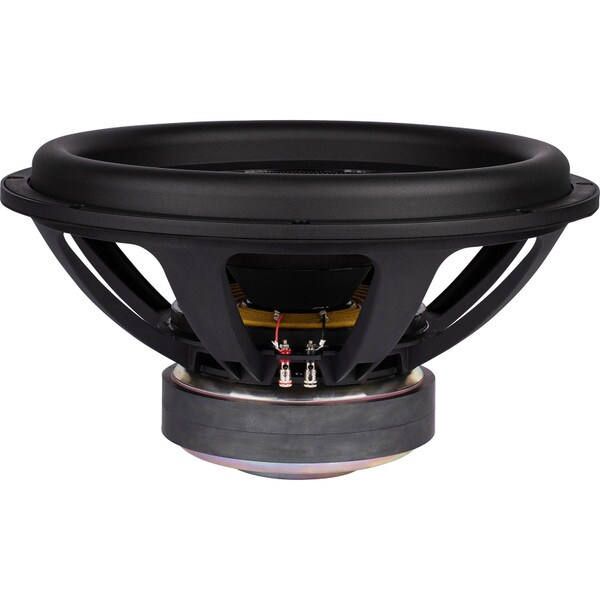

About the Driver

The Ultimax II 18" plays clean, low, fast, and LOUD. Designed to excel in compact sealed enclosures, it features an ultra-powerful stack of high-grade ferrite ceramic magnets for strong motor force and exceptional control. With an aluminum shorting ring and huge cap, inductance is kept to a minimum to give you extremely low distortion, “faster”-sounding bass response, and perfect magnetic symmetry. Featuring a carbon fiber cone, rigid cast aluminum frame, dual spiders, 3" flat wound voice coil, dual shorting rings, extensive venting, and an FEA optimized motor, this driver is built for high SPL, ultra-low bass extension with minimal distortion.

Cabinet Specifications

Panel Thickness
3/4", front baffle is 1-1/2"
Panel Material
Medium Density Fiberboard (MDF)
Net Internal Cabinet Volume
(subtracting bracing and woofer): 3.7 ft³
External Dimensions
23" H x 20" W x 20.75" D
Mounting Depth
(mounting baffle to brace): 11"
Subwoofer Recess
1/2"
Weight
62 lbs
Origin
Made in the USA

Woofer Specifications

Power Handling
1,200 watts RMS/2,400 watts max
Frequency Response
20-500 Hz
Impedance
4 ohms (dual voice coil, 2 ohms per coil)
Le
1.15 mH
Re
4.2 ohms
Fs
22 Hz
SPL
90.7 dB 2.83V/1m
Vas
8.77 ft³
Qms
2.53
Qes
0.67
Qts
0.53
Xmax
28 mm
Dimensions
Overall diameter: 18.5", Cutout: 16.8", Depth: 8.6"

Product Details

BrandDayton Audio
Part Number300-7220
UPC848791011016
Weight106.36

Product Specifications

Cabinet Dimensions (HxWxD)23" x 20" x 20.75"
Cabinet OptionsUnfinished/Unassembled
ColorUnfinished
ConfigurationSubwoofer
Input Rating2 + 2 ohms
Speaker TypeSubwoofer
Woofer Diameter18"
