Dayton Audio 18" Reference Series HO Subwoofer and Cabinet Bundle 900 Watts

Parts Express
Part #300-7094

Dayton Audio 18" Reference Series HO Subwoofer and Cabinet Bundle 900 Watts

Parts Express
Part #300-7094
Model: 300-7094
Build the ultimate in high fidelity bass reproduction using this superior subwoofer cabinet and the Dayton Audio RSS460HO-4 Reference Series 18" High Output subwoofer. Save over $40 off original retail price when you purchase this knock-down enclosure and subwoofer package.
Key Features
  • 4.0 cubic foot CNC-cut cabinet made of 3/4" MDF panels with a 1-1/2" thick front baffle
  • Includes the ultimate in low distortion bass: Dayton Audio's 18" Reference Series High Output sub
  • Save over $40 off standard retail when you purchase this bundle
Your Price: $619.98
+ FREE SHIPPING
MSRP: $712.99
Save $93.01 (13%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio 18" Reference Series HO Subwoofer and Cabinet Bundle 900 Watts

Dayton Audio 18" Reference Series HO Subwoofer and Cabinet Bundle 900 Watts

Build the ultimate in high fidelity bass reproduction using this superior subwoofer cabinet and the Dayton Audio RSS460HO-4 Reference Series 18" High Output subwoofer. Save over $40 off original retail price when you purchase this knock-down enclosure and subwoofer package.

Features:

  • 4.0 cubic foot CNC-cut cabinet made of 3/4" MDF panels with a 1-1/2" thick front baffle
  • Includes the ultimate in low distortion bass: Dayton Audio's 18" Reference Series High Output sub
  • Save over $40 off standard retail when you purchase this bundle

Customer Comments:

"The Dayton drivers installed in this sub have stiff aluminum cones which make the sound very clean, and as stated, very articulate. Plus, with 900w rms power handling capability, make them great for any movie or occasion where high dB is required." -Steve Austin D ⋆⋆⋆⋆⋆

"Title says it all, the flat pack is really well cut and goes together very nicely with minimal sanding to make it perfectly smooth." - RJCC2 ⋆⋆⋆⋆⋆

"I've had several quality internet-direct subs in the past and I would estimate that you'd need to spend $1000+ to get this kind of performance. And it was a fun project!" -Big18inch ⋆⋆⋆⋆⋆

Customer Projects:

About the Cabinet

This particular cabinet is designed specifically for the Dayton Audio 18" Reference Series High Output subwoofer, but works for any subwoofer with an overall diameter of 18-3/16" or less, and a cutout requirement of 16-3/4" or less. The sealed enclosure design creates a subwoofer system with a Qtc of 0.644 and an f3 of 40 Hz when used with the Dayton Audio RSS460HO-4 and minimal fill. Adding five pounds of Acousta-Stuf will create a critically damped subwoofer system.

During the CNC manufacturing process, rabbets dadoes are cut into the back and side panels ensuring precise alignment. A unique interlocking two-piece brace adds superior rigidity without affecting the subwoofer's performance. In addition, the initial baffle includes rabbets and dadoes ensuring perfect installation of the first part of the two-part, double thick baffle. Plate amplifier installation is made easy by following the scribed interior guide with a jig saw (scribed amplifier cutout is for the Dayton Audio SPA1000 or SPA500).

The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 18" High Output Reference Series subwoofer. All that's left to do is finish it to match your décor or paint it to stand out. When your friends ask about it, you get the pleasure of saying, "I built it myself!"

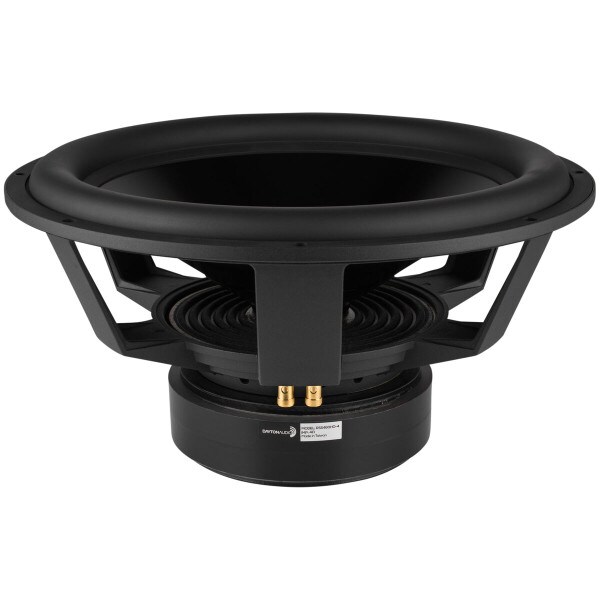

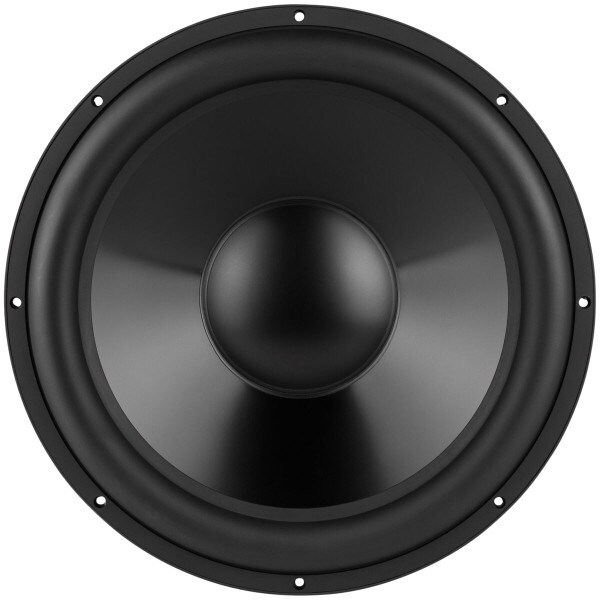

About the Subwoofer

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure.

A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

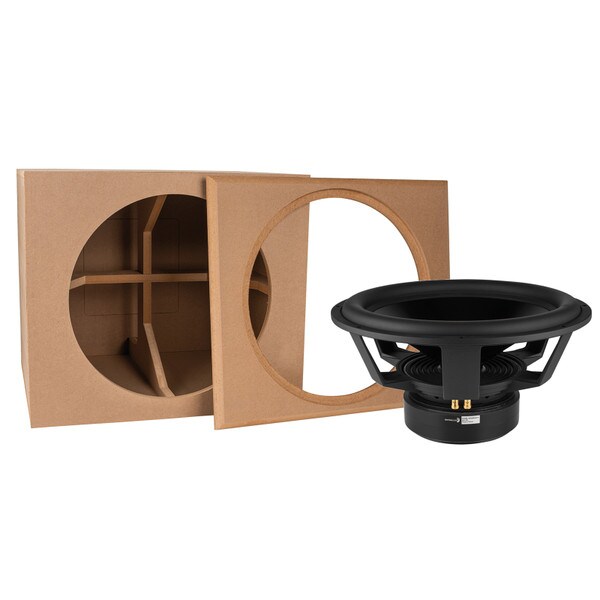

Kit Components:

Part #QTY.Description
295-4721Dayton Audio RSS460HO-4 18" Reference Series HO Subwoofer 4 ohm
300-7079
1Knock-Down MDF 4 ft³ Subwoofer Cabinet for Dayton Audio 18" Reference Series HO

Cabinet Specifications:

  • Panel Thickness: 3/4", front baffle is 1-1/2"
  • Panel Material: Medium Density Fiberboard (MDF)
  • Finished Net Cabinet Volume (subtracting the double thick baffle and bracing): 4.0 cubic feet Aluminum Cone Woofer
  • External Dimensions: 23" H x 20" W x 20.75" D
  • Subwoofer Recess: 1/2"
  • Weight: 62lbs.
  • Made in the U.S.A

Subwoofer Specifications:

  • Power Handling: 900 watts RMS/1,800 watts max
  • VCdia: 3"
  • Le: 2.24
  • Re: 3.2 ohms
  • Fs: 18.8 Hz
  • Vas: 9.61 ft³
  • Qms: 4.05
  • Qes: 0.35
  • Xmax: 12.75mm
  • Woofer: Dayton Audio RSS460HO-4 18" Reference Series HO Subwoofer 4 ohm
  • Frequency response: 20-500
  • Impedance: 4 Ohm
  • Sensitivity: 93 dB 2.83V/1m
  • Dimensions: Overall diameter: 18.17", Cutout diameter: 16.69", Depth: 8.94".

Product Details

BrandParts Express
Model300-7094
Part Number300-7094
UPC848791000799
Weight105.35

Product Specifications

Cabinet Dimensions (HxWxD)23" x 20" x 20.75"
Cabinet OptionsUnfinished/Unassembled
ColorUnfinished
ConfigurationSubwoofer
Input Rating4 ohm
Speaker TypeSubwoofer
Woofer Diameter18"
