DC Coax Jack 2.5 x 5.5mm 4A Barrel Power Panel Mount

Parts Express
Part #090-5032
1 Question, 2 Answers or
Popular dimension, high current power jack for projects and repair.
Key Features
  • The jack accepts common 2.5 x 5.5 mm plugs
  • Handles up to 36V @ 4A for high wattage projects
Your Price: $1.39
MSRP: $2.99
Save $1.60 (54%)
Bulk Pricing
Quantity:Qty: 1-9 $1.39/ea
Quantity:Qty: 10+$1.25/ea
Ships next business day. Details

619In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

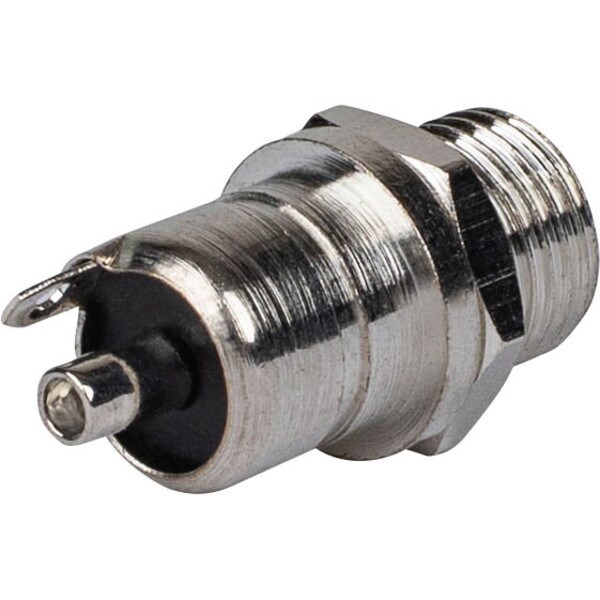

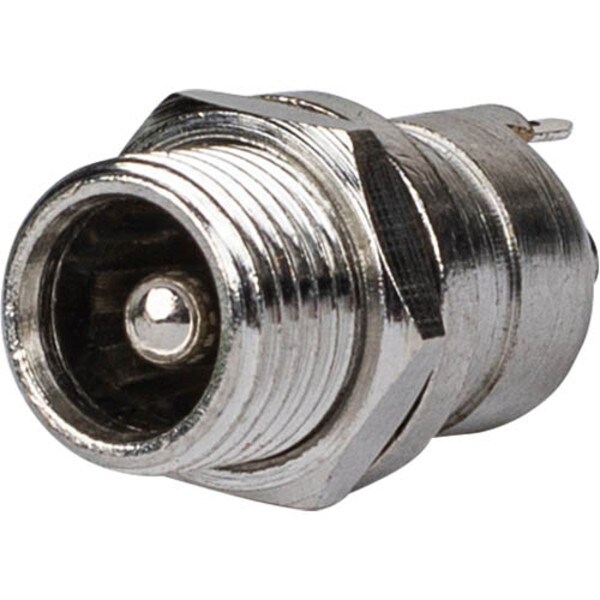

DC Coax Jack 2.5 x 5.5mm 4A Barrel Power Panel Mount

You can use this common DC jack for projects and internal repairs. Its metal body is durable and has a seal that prevents dust from entering from the rear. Can be assembled tip positive or tip negative for DC applications. Works equally well for AC applications. The jack accepts 2.5 x 5.5 x 11 mm plugs and mounts in panels up to 0.18" (4.5 mm) thick.

Specifications: • Dimensions with terminals: 0.76" H x 0.4" Dia. • Mounting hole diameter: 0.31" • Current capacity: 4 amps.

Product Details

BrandParts Express
Part Number090-5032
UPC848864068268
Unit of MeasureEach
Weight0.05

Product Specifications

DC Power Connector TypeJack
