Celestion CDX1-1010 1" 20 Watt Compression Driver 1-3/8"-18 TPI 8 Ohm

Celestion
Part #294-2110

Celestion CDX1-1010 1" 20 Watt Compression Driver 1-3/8"-18 TPI 8 Ohm

Celestion
Part #294-2110
Model: CDX1-1010
Upgrade your speaker cabinet today with Celestion's CDX-1010 professional grade compression driver.
Key Features
  • Finite Element Analysis (FEA) used to optimize both magnetic and acoustic design
  • Ideal for entry-level two and three-way sound reinforcement cabinets
  • Very lightweight, low-profile ferrite magnet compression driver
  • Great upgrade for many entry-level speaker cabinets
Your Price: $39.50
MSRP: $59.25
Save $19.75 (33%)
Bulk Pricing
Ships next business day. Details

Only 2 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion CDX1-1010 1" 20 Watt Compression Driver 1-3/8"-18 TPI 8 Ohm

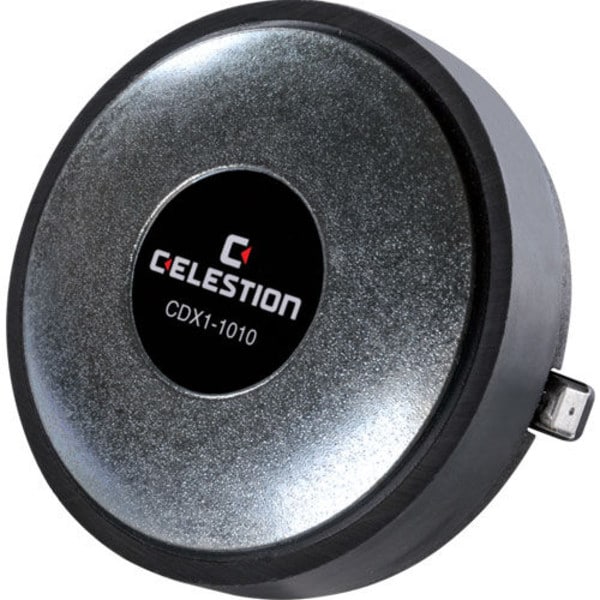

Celestion's compact and versatile CDX1-1010 1" high frequency driver is the result of the company's extensive experience, and its commitment to rigorous technical analysis. The driver's advanced non-metallic PETP diaphragm provides accurate, non-fatiguing response, while offering a higher level of durability than shatter-prone metallic domes.

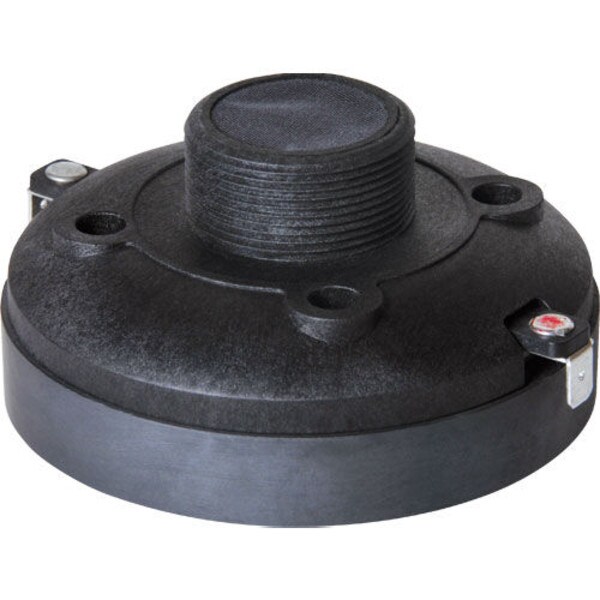

Celestion's new drivers are in great demand by popular loudspeaker system manufacturers, and after a single listen to the CDX1-1010 it will be easy to understand why! The CDX1-1010 features a 1-3/8"-18 TPI screw-on mounting system for easy installation.

Specifications: • Power handling: 15 watts RMS (AES standard) • Recommended min. crossover: 2,200 kHz, 12 dB/octave • VCdia: 1" • Impedance: 8 ohms • Frequency range: 1,500-20,000 Hz • Sensitivity: 107 dB 1W/1m • Mounting type: 1-3/8"-18 TPI • Dimensions: 3.54" dia. x 2.08" depth • Net weight: 1.8 lbs.

Product Details

BrandCelestion
ModelCDX1-1010
Part Number294-2110
UPC739894582940
Unit of MeasureEach
Weight2

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter1"
Mounting Type1-3/8"-18 TPI
Power Handling (RMS)15 Watts
Impedance8Ω
