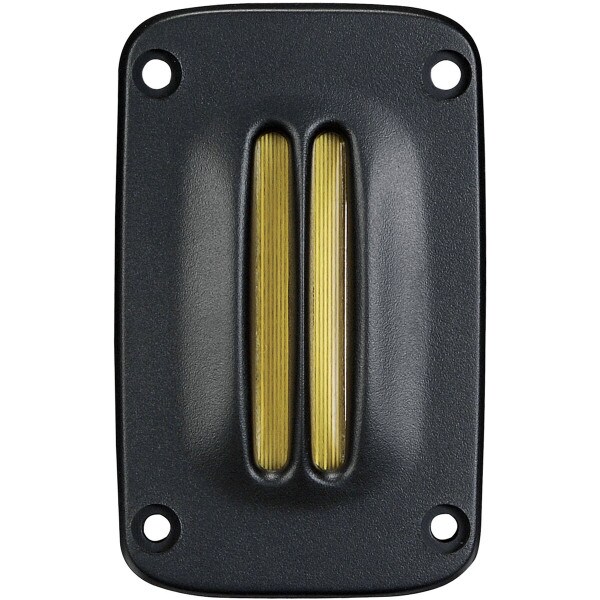

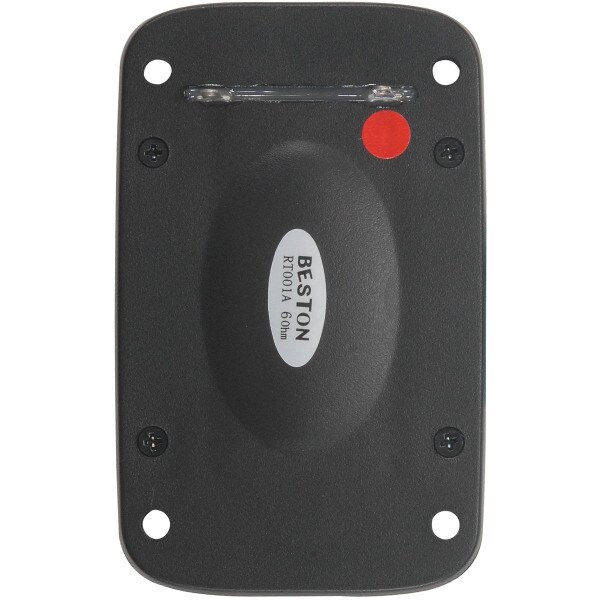

Beston RT001A Ribbon Tweeter 6 Ohm

Beston
Part #277-110

Beston RT001A Ribbon Tweeter 6 Ohm

Beston
Part #277-110
Model: RT001A
The RT001A is perfect for compact 2-way and 3- or 4-way designs, as well as for use in multiples when incorporated into line arrays.
Key Features
  • Patented ribbon design
  • 3,000 Hz – 40,000 Hz frequency response
  • High sensitivity
  • Linear impedance
  • Neodymium magnet structure for high flux and low weight
  • Ultra-thin laminated aluminum diaphragm
Your Price: $33.98
MSRP: $51.99
Save $18.01 (35%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beston RT001A Ribbon Tweeter 6 Ohm

A ribbon tweeter's radiating surface approaches the theoretical ideal of a zero-mass audio source. The articulation, attack, and sonic transparency are quite impressive, and the diaphragm's monolithic shape and orientation provide a broad horizontal and tightly controlled dispersion characteristic, which is ideal for many listening environments. Beston's carefully sculpted waveguide faceplate further improves the tweeter's linear emission of smooth, extended high frequencies. The RT001A is perfect for compact 2-way and 3- or 4-way designs, as well as for use in multiples when incorporated into line arrays. A third order (18 dB/octave) or higher crossover is recommended to achieve maximum power handling. Minimum recommended crossover frequency: 3,500 Hz.

Product Details

BrandBeston
ModelRT001A
Part Number277-110
UPC844632069802
Unit of MeasureEach
Weight0.2

Product Specifications

Cutout Diameter2.00" x 1.50
Tweeter TypeRibbon
Power Handling (RMS)15 Watts
Impedance6Ω
Frequency Response3,000 to 40,000Hz
Sensitivity88dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)3500Hz
DC Resistance (Re)5.4Ω

Mounting Information

Overall Outside Diameter3.40" x 2.13"
Depth0.125"
