Benchtop Linear DC Power Supply 0-30V 0-5A

HYELEC
Part #120-904

Benchtop Linear DC Power Supply 0-30V 0-5A

HYELEC
Part #120-904
Model: HY3005

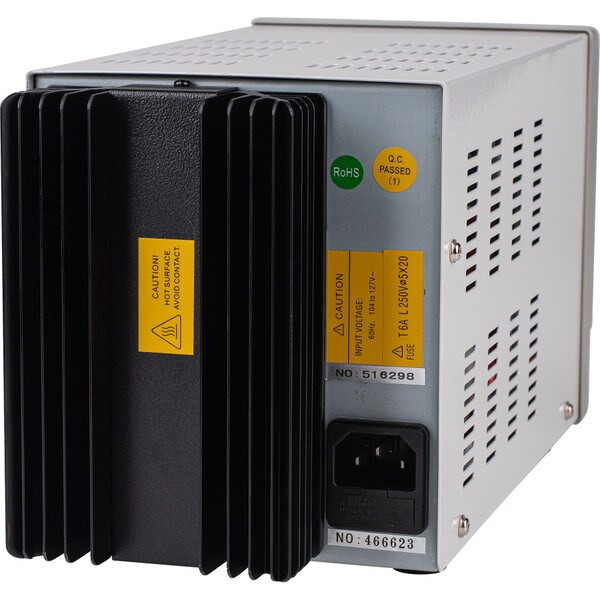

The heavy duty HY3005 regulated linear power supply offers variable output voltage, dual current/voltage red LED digital readout, and short circuit/overload protection making this supply an outstanding value. The large heatsink keeps the unit cool, even when operating at the full rated output for extended periods of time.
Key Features
  • Large red LED 5/8" numbers for easy reading
  • Regulated output delivers continuous power even when making voltage adjustments
  • Separate coarse and fine control knobs for quick setting
  • Constant current and short circuit protection built-in
  • Low noise linear power supply
  • Easy external fuse replacement
Your Price: $121.98
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-2 $121.98/ea
Quantity:Qty: 3+$119.98/ea

Back-Ordered

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Benchtop Linear DC Power Supply 0-30V 0-5A

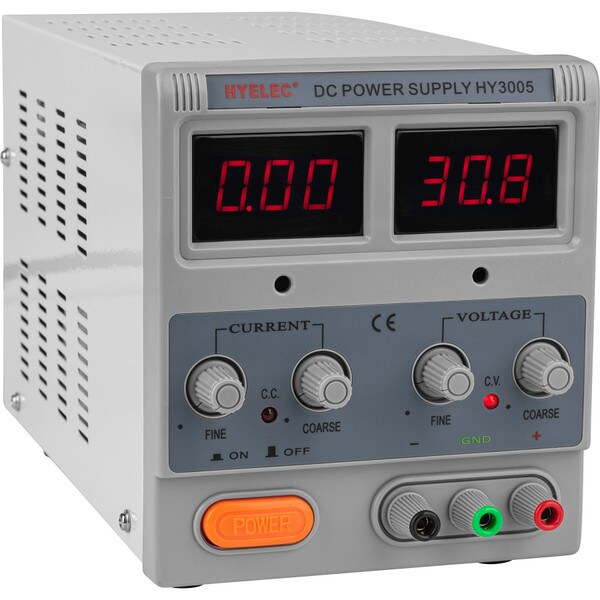

The HY3005 linear variable power supply offers a wide 0 to 30 VDC range and delivers up to 5A of current. This along with the large 5/8" character red LED readout makes it perfect for the workbench. The two coarse adjustment knobs make it easy to quickly set the voltage and current and the two fine knobs help make your setting as accurate as possible. Built-in constant current and short circuit protection, plus linear design insure long life, quiet and stable power delivery to your DC devices.

Specifications: • Input voltage: 104~127 VAC @ 60 Hz • Output voltage: 0 - 30 VDC • Output current: 0 - 5A • Line regulation: CV?0.01%+1 mV and CC?0.2%+1 mA • Load regulation ? 3A: CV?0.01%+3 mV and CC?0.2%+10 mA • Ripple and noise ? 3A: CV?0.5 mVrms and CV?3 mArms • Indication accuracy: Voltage ± 1% and current ± 2% • Working environment: 32°~ 104° F (0°~40° C) with relative humidity <90% • Dimensions: 5-1/4" W x 11-1/2" D x 6" H (133.35 x 292 x 152.4 mm) without knobs • Fuse replacement: 5 x 20 mm 6.3A max.

Product Details

BrandHYELEC
ModelHY3005
Part Number120-904
UPC848864059242
Unit of MeasureEach
Weight11.25

Product Specifications

Current Capacity5000mA
DC Output VoltageVariable
Input Voltage120 VAC
