Parts Express Banana Plug Pair Compression Type

Parts Express
Part #091-330

Parts Express Banana Plug Pair Compression Type

Parts Express
Part #091-330

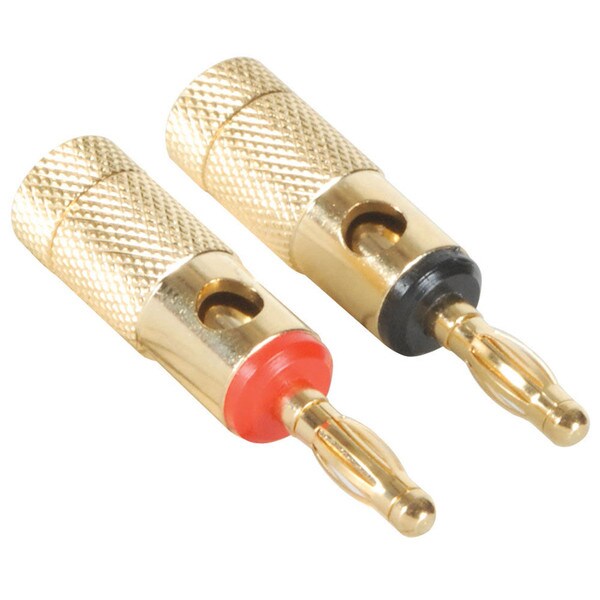

Very high quality gold banana plug set. Knurled barrel and compression nut with floating "slug". The floating "slug" allows tight wire compression without the twisting effect on the wire strands that other compression connectors have.
Key Features
  • Floating "slug" allows tight wire compression without the twisting effect on the wire
  • Side-entry accepts up to 10 gauge wire while the rear-entry accepts up to 12 gauge wire
  • Also accepts rear-entry banana plugs for stacking
  • Polarity is clearly indicated by red and black tops
Similar items that may interest you:
See all items in Banana Plugs
Your Price: $4.49
MSRP: $8.99
Save $4.50 (50%)
Bulk Pricing
Quantity:Qty: 1-9 $4.49/ea
Quantity:Qty: 10+$3.75/ea

Back-Ordered

Estimated back in stock 1/17/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Parts Express Banana Plug Pair Compression Type

Very high quality gold banana plug set. Knurled barrel and compression nut with floating "slug". The floating "slug" allows tight wire compression without the twisting effect on the wire strands that other compression connectors have. Side-entry accepts up to 10 gauge wire while the rear-entry accepts up to 12 gauge wire. Also accepts rear-entry banana plugs for stacking. Overall dimensions: 1-7/8" L x 7/16" W. Sold in pairs: 1-red and 1-black per package.

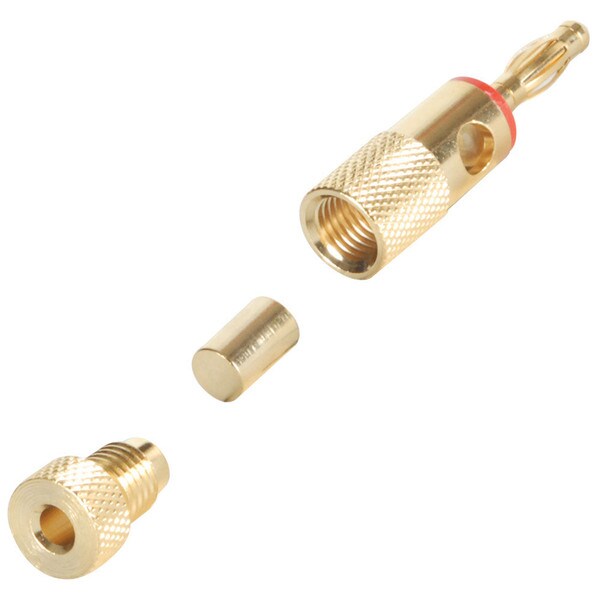

Instructions: Side entry cable installation: Loosen rear compression screw in counter clockwise fashion to expose side opening on banana plug. Remove approximately 5/16" of insulation from speaker cable. Insert exposed wire (up to 10 AWG) into side opening. Tighten rear compression screw to secure wire. Rear entry cable installation: Remove rear compression screw and compression slug from banana plug. Remove approximately 1/4" of insulation from speaker cable. Insert speaker cable into rear compression screw. Fan wire (up to 12 AWG) and fold conductors over the rear compression screw. Ensure that conductors do not interfere with rear compression screw threads. Insert compression slug first into the banana plug. Install rear compression screw securing cable to banana plug.

Product Details

BrandParts Express
Part Number091-330
UPC844632017278
Unit of MeasurePairs
Weight0.1188

Product Specifications

Contact PlatingGold
Style / TypeSingle
