B&C DCX464-8 1.4" Neodymium Coaxial Compression Driver 8 Ohm 4-Bolt

B&C Speakers
Part #294-6060

B&C DCX464-8 1.4" Neodymium Coaxial Compression Driver 8 Ohm 4-Bolt

B&C Speakers
Part #294-6060
Model: DCX464-8

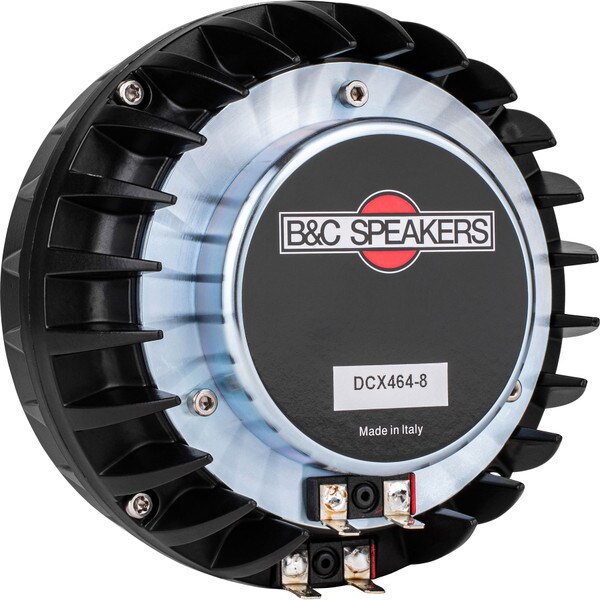

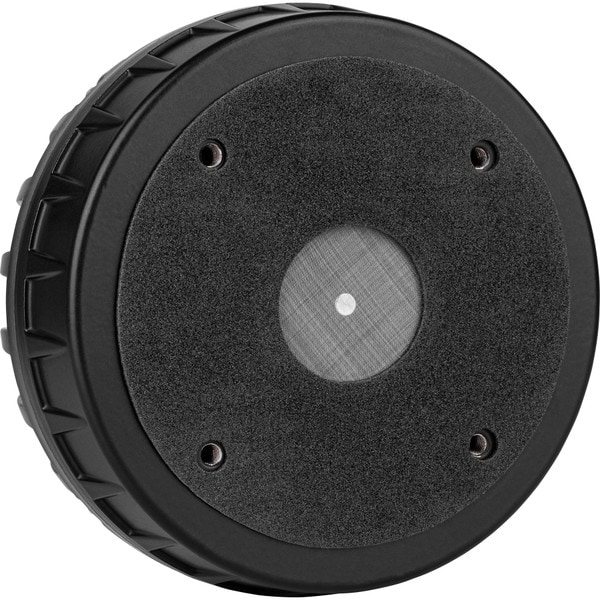

The innovative DCX464-8 1.4" neodymium midrange/high frequency driver from B&C Speakers features a patent-pending coaxial ring radiator arrangement that produces loud, coherent sound over an exceptionally wide frequency range. This unique driver will deliver perfect time alignment and true point source response from 300 to 18,000 Hz.
Key Features
  • Time-aligned coaxial driver with two ring radiators produces response from 300 to 18 kHz
  • Powerful, lightweight neodymium magnet for incredible efficiency and high output
  • Distinctive chassis casting acts as a heat sink for maximum thermal efficiency
  • Natural sound and exceptional vocal range clarity
  • 1.4" horn throat diameter, 4-bolt mounting for use with many popular horns
Your Price: $690.82
+ FREE SHIPPING
MSRP: $1,151.36
Save $460.54 (40%)
Bulk Pricing
Ships next business day. Details

Only 1 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C DCX464-8 1.4" Neodymium Coaxial Compression Driver 8 Ohm 4-Bolt

After years of work, B&C engineers have developed a family of next generation high frequency devices. The DCX464-8 coaxial compression driver combines a midrange and high frequency driver into a single package that gives you extremely wide bandwidth and perfect time alignment. Compression drivers are the linchpin of a PA system: operating at wavelengths too small to readily couple with other drivers, they alone have to fight distance and atmospheric losses to deliver concert even and consistent sound pressure levels to ever larger audiences. The DCX464-8 avoids most of the issues with short wavelengths while still delivering the high output and low distortion that B&C drivers are known for.

The DCX464-8 has been designed from scratch to advance the state of the art. The DCX464’s midrange diaphragm covers 300Hz - 5.5kHz with 111.1 dB sensitivity, and its 100mm voice coil handles 110 watts RMS. The 64mm coil high frequency diaphragm covers 3 - 18kHz with 111.4 dB sensitivity and handles 80 watts RMS. With that extreme efficiency and power handling you can be sure that the DCX464 has the output capability to keep up with any woofer design. A patent pending midrange integrator allows both diaphragms to work in harmony over a wide bandwidth for greater combined output and crossover flexibility. All this energy arrives at a 1.4” throat, from the most compact package that can be designed today.

Brand new materials and thousands of hours of modelling and testing result in lower distortion at higher SPL than has ever been possible before. Consider the new DCX464 for your next design, and enjoy a new standard in fidelity, with the reliability and consistency you expect from B&C.

Midrange Specifications: • Power handling: 110 watts RMS with minimum crossover of 300 Hz at 12 dB per octave • VCdia: 4" • Impedance: 8 ohms • Frequency response: 300-5,500 Hz • SPL: 111.1 dB 1W/1m.

High Frequency Specifications: • Power handling: 80 watts RMS with minimum crossover of 4,000 Hz at 12 dB per octave • VCdia: 2.5" • Impedance: 8 ohms • Frequency response: 3,500-18,000 Hz • SPL: 111.4 dB 1W/1m.

Dimensions: 5.9" diameter x 3.07" depth • Net weight: 8.6 lbs.

Product Details

BrandB&C Speakers
ModelDCX464-8
Part Number294-6060
UPC848864063423
Unit of MeasureEach
Weight8.6

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter1.4"
Mounting Type4-Bolt
Impedance8Ω
