Curt Campbell created the Aviatrix-RST MTM speaker kit to be an audio workhorse. This compact MTM design is capable of surprising low frequency response for its size with smooth midrange response and crystal clear highs. This kit includes almost everything you need to build a pair of speakers, including: knock-down cabinets, drivers, crossover components, and damping material.
Key Features
Capable of high output with low distortion, perfect for home theater systems
Compact sealed design delivers surprising low frequency response
Re-designed and tuned by well-known speaker designer Curt Campbell
CNC cut MDF panels make the enclosure easy to assemble with minimal tools

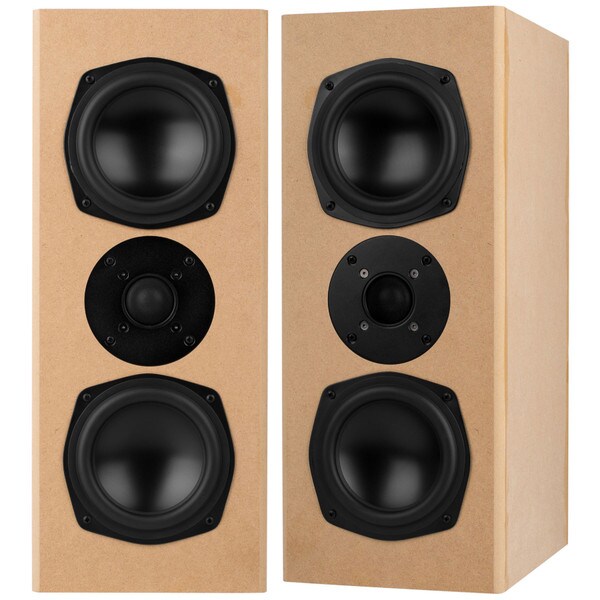

AviaTrix-RST Sealed MTM Speaker Kit Pair with Knock-Down Cabinets

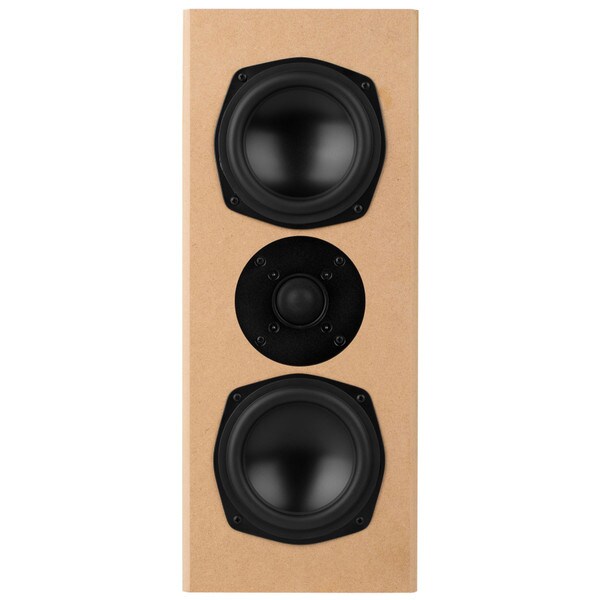

The AviaTrix-RST MTM speaker kit is designed to deliver high performance, low distortion audio for both music and home theater applications. The AviaTrix-RST is well-known for its low frequency capabilities thanks to the dual 5-1/4" aluminum cone high excursion woofers. With an extremely smooth midrange response and natural high frequencies, the AviaTrix-RST is capable of high output without being fatiguing, making it perfect for long listening sessions with music or movies.

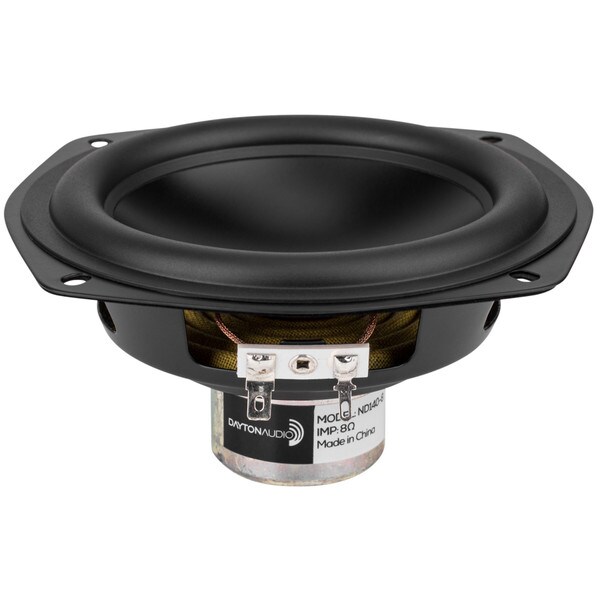

The drivers for the AviaTrix-RST were chosen for their output, low distortion, and bass response capabilities. Dayton Audio's ND140-8 handles the bass and lower midrange frequencies. The ND140-8 features an efficient, low-distortion Neo-Balanced motor that is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. The popular Dayton Audio RST28F-4 was chosen for the upper frequencies. This unique 1-1/8" silk dome tweeter features a state-of-the-art Ferrofluid cooled motor system employing copper shorting rings to ensure that high frequency content is reproduced as transparently as possible, assuring studio-quality performance.

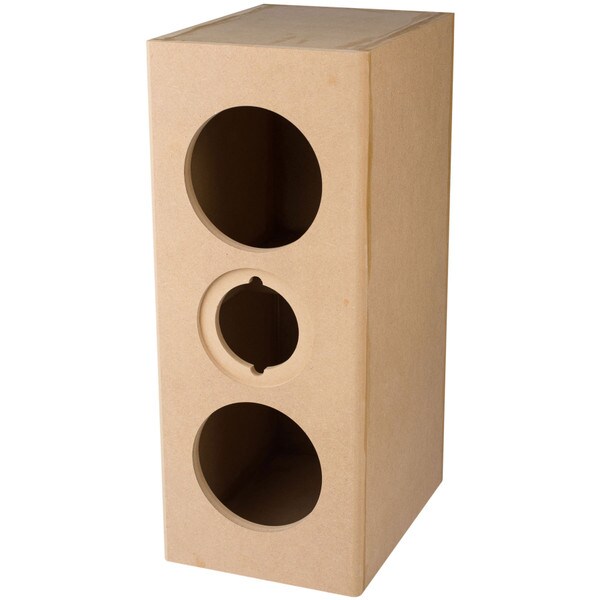

The solid 1/2" MDF enclosure panels are all CNC milled to tight tolerances ensuring easy assembly. The finished enclosure includes a center brace tying all sides together minimizing cabinet resonances. Recesses for flush mounting the drivers are pre-cut making assembly a snap.

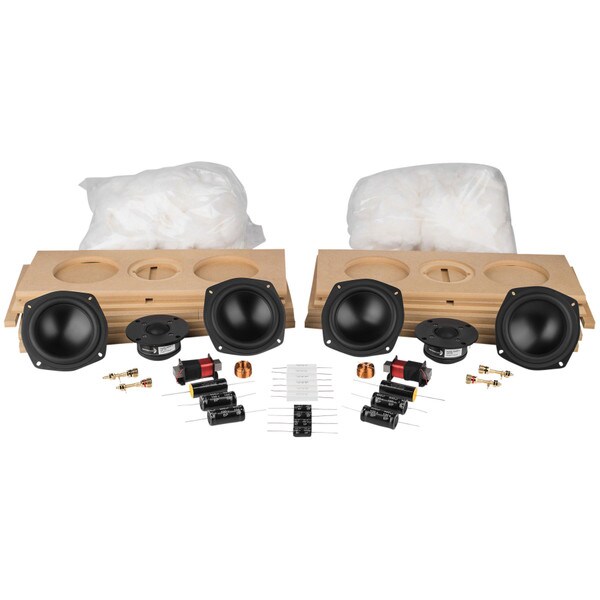

This kit includes nearly everything you need to build a pair of top-notch speakers in no time flat, including: knock-down enclosures, drivers, damping material, binding posts, and crossover components.
Check the speaker project that inspired the Aviatrix Kit.
This kit includes parts to build a pair of speakers.
Specifications: • Power handling: 80 watts RMS/160 watts max • Frequency response: 40-20,000 Hz • Impedance: 6 ohms • Sensitivity: 86 dB 1W/1m • Dimensions: 18.5" H x 7.5" W x 10" D
Note: Crossover components may be substituted with parts of equal or higher quality depending on available inventory.
