  • Audio-Technica AT-VM95SH/H Shibata Stereo Cartridge with Premounted Headshell

Audio-Technica AT-VM95SH/H Shibata Stereo Cartridge with Premounted Headshell

Audio-Technica
Part #240-5649

Audio-Technica AT-VM95SH/H Shibata Stereo Cartridge with Premounted Headshell

Audio-Technica
Part #240-5649
Model: AT-VM95SH/H
The Audio-Technica VM95SH dual moving magnet cartridge with a Shibata stylus premounted to the HS6BK headshell delivers a powerful 3.5 mV output with excellent channel separation and low distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws with no nuts required.
Key Features
  • VM dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus
  • Aluminum cantilever
  • Specially wound coils increase output voltag
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws, no nuts or washers required
  • Compatible with any AT-VMN95 replacement stylus
  • Universal 1/2" mount headshell for 4-pin turntable cartridges
Your Price: $229.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 12 hr 48 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Audio-Technica AT-VM95SH/H Shibata Stereo Cartridge with Premounted Headshell

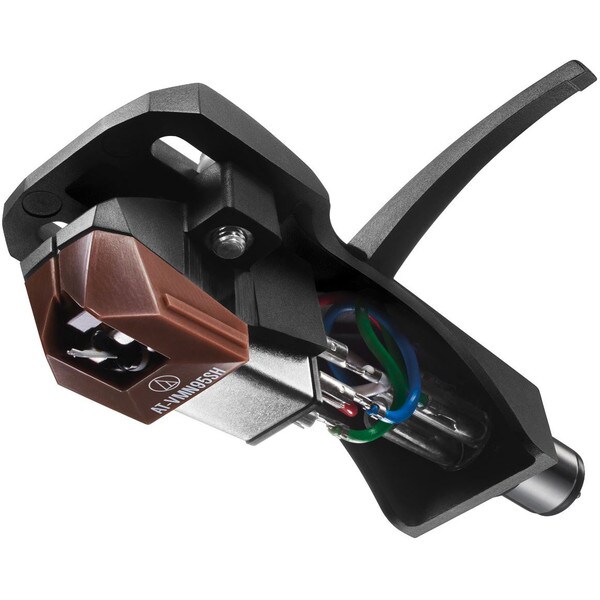

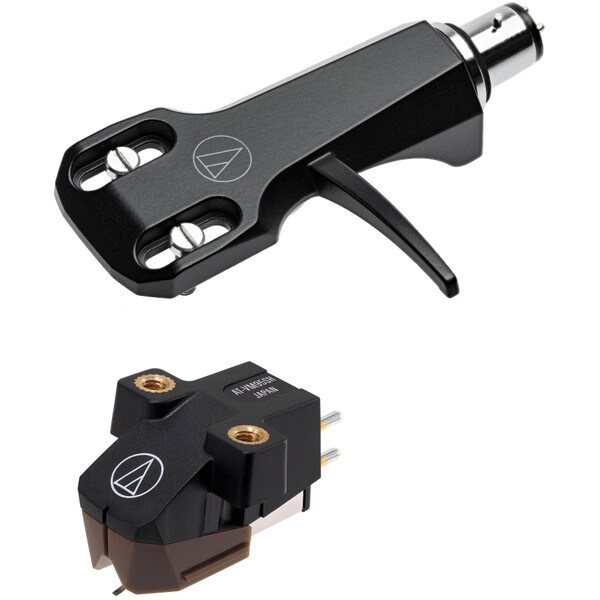

The AT-VM95SH/H combo kit includes the AT-VM95SH dual moving magnet cartridge premounted on the AT-HS6BK headshell.

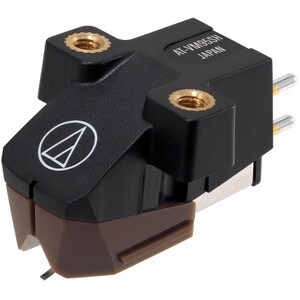

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws, no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

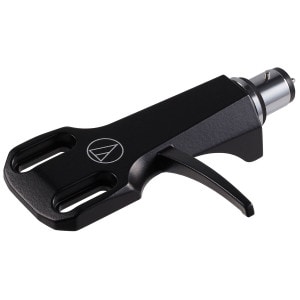

The AT-HS6 is a universal 1/2"-mount headshell for 4-pin turntable cartridges. It features an ultra-lightweight (9 g) aluminum die-cast body to keep vibration to a minimum for accurate playback both for DJs and causal listeners. A finger lift enables simple, precise stylus placement. The headshell is also equipped with gold-plated lead wires for lossless signal transmission and comes with mounting screws for connecting the headshell to a cartridge.

Specifications:


•Frequency response: 20-25,000 Hz
•Channel Separation: 23 (dB at 1 kHz)
•Vertical tracking angle: 23°
•Vertical tracking force: 1.8-2.2 g (2.0 g standard)
•Stylus construction: Nude square shank
•Recommended load impedance: 47 kohms
•Coil impedance: 3.3 k ohms (1 kHz)
•DC resistance: 485 ohms
•Coil inductance: 550 mH (1 kHz)
•Load capacitance: 100 to 200 pF
•Output: 3.5 mV (1 kHz, 5 cm/sec.)
•Channel balance: 1.5 dB (1 kHz)

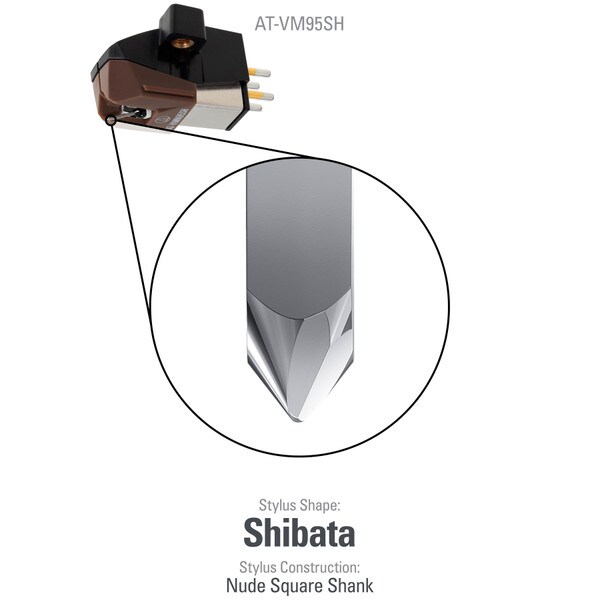

•Stylus shape: 2.7 x 0.26 mil Shibata
•Cantilever: Aluminum pipe
•Mount: Half-inch
•Replacement stylus: AT-VMN95SH
•Accessories included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
•Dimensions:21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
•Weight: 15.5 g (0.55 oz)
