Audio-Technica AT-VM95SH Dual Moving Magnet Cartridge 2.7 x 0.26 mil

Audio-Technica
Part #240-5647

Audio-Technica AT-VM95SH Dual Moving Magnet Cartridge 2.7 x 0.26 mil

Audio-Technica
Part #240-5647
Model: AT-VM95SH
The Audio-Technica VM95SH dual moving magnet cartridge with a Shibata stylus delivers a powerful 3.5 mV output with excellent channel separation and low distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws with no nuts required.
Key Features
  • VM95 Series dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus
  • Aluminum cantilever
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws, no nuts required
  • Compatible with any AT-VMN95 replacement stylus
Your Price: $199.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 13 hr 21 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Audio-Technica AT-VM95SH Dual Moving Magnet Cartridge 2.7 x 0.26 mil

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws, no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications:


Frequency response: 20-25,000 Hz
Channel Separation: 23 (dB at 1 kHz)
Vertical tracking angle: 23°
Vertical tracking force: 1.8-2.2 g (2.0 g standard)

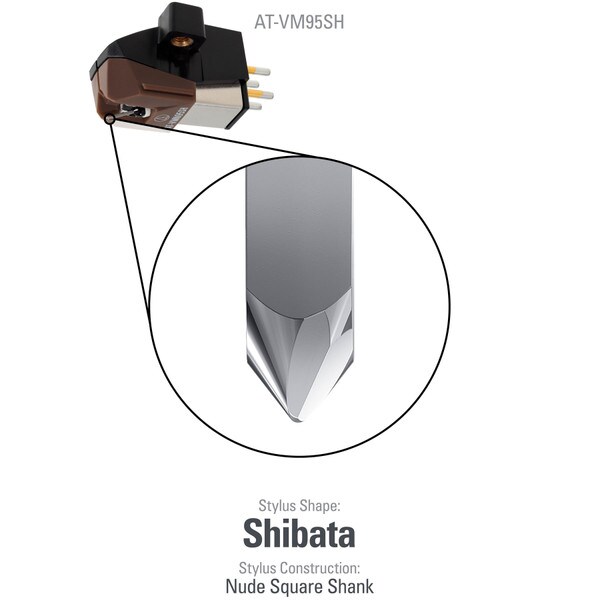

Stylus construction: Nude square shank
Recommended load impedance: 47 kohms
Coil impedance: 3.3 k ohms (1 kHz)
DC resistance: 485 ohms
Coil inductance: 550 mH (1 kHz)
Load capacitance: 100 to 200 pF
Output: 3.5 mV (1 kHz, 5 cm/sec.)
Channel balance: 1.5 dB (1 kHz)
Stylus shape: 2.7 x 0.26 mil Shibata
Cantilever: Aluminum pipe
Mount: Half-inch
Replacement stylus: AT-VMN95SH

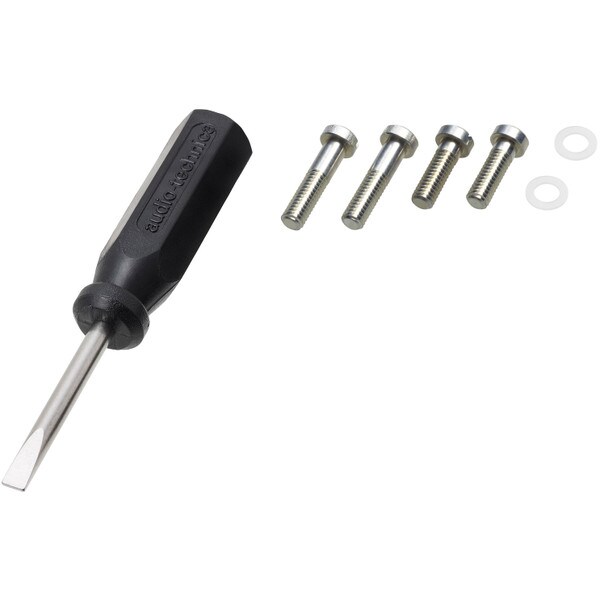

Accessories included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Dimensions:17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
Weight: 6.1 g (0.22 oz)
