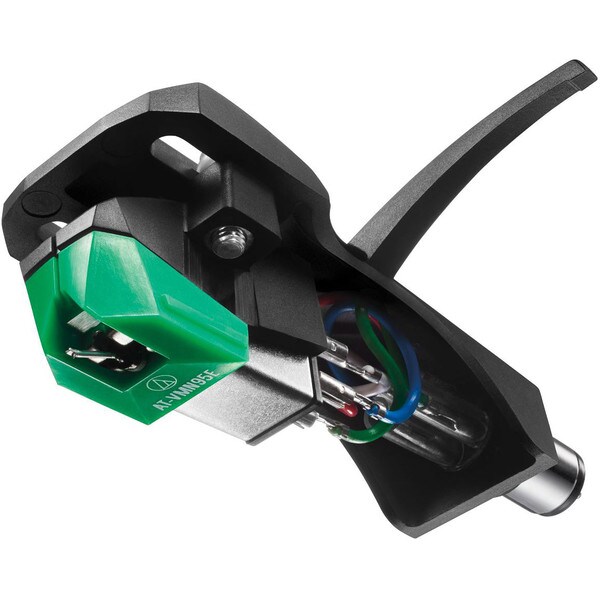

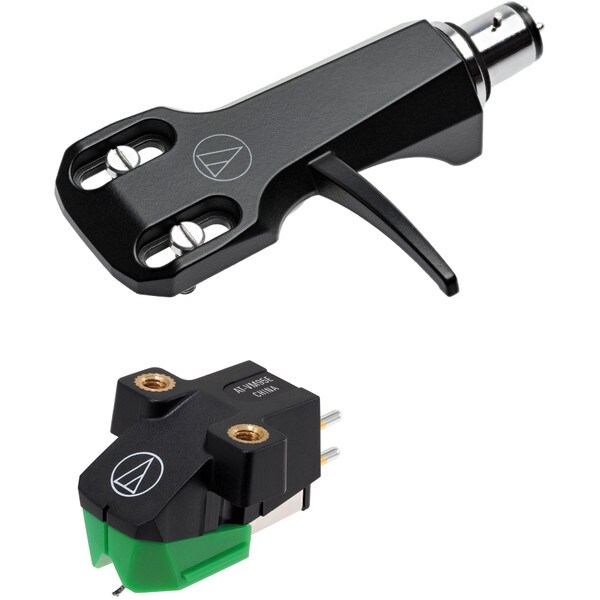

Audio-Technica AT-VM95E/H Dual Moving Magnet Cartridge with Premounted HeadshellThe AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell.
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge's special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws — no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli. Manufactured to Audio-Technica's renowned quality standards, each cartridge is meticulously assembled with remarkably tight tolerances.
The AT-HS6 is a universal 1/2"-mount headshell for 4-pin turntable cartridges. It features an ultra-lightweight (9 g) aluminum die-cast body to keep vibration to a minimum for accurate playback both for DJs and causal listeners. A finger lift enables simple, precise stylus placement. The headshell is also equipped with gold-plated lead wires for lossless signal transmission and comes with mounting screws for connecting the headshell to a cartridge.
Specifications:
•
Frequency response: 20-22,000 Hz
•
Channel separation: 20 (dB at 1 kHz)
•
Vertical tracking angle: 23°
•
Vertical tracking force: 1.8-2.2 g (2.0 g standard)
•
Stylus construction: Bonded round shank
•
Recommended load impedance: 47,000 ohms
•
Coil impedance: 3.3 k ohms (1 kHz)
•
DC resistance: 485 ohms
•
Coil inductance: 550 mH (1 kHz)
•
Load capacitance: 100 to 200 pF
•
Output: 4.0 mV (1 kHz, 5 cm/sec.)
•
Channel balance: 2.0 dB (1 kHz)
•

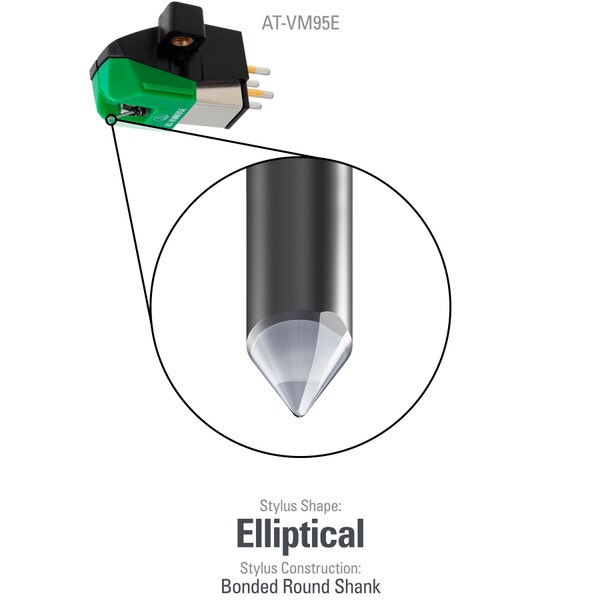

Stylus shape: 0.3 x 0.7 mil elliptical
•
Cantilever: Aluminum pipe
•
Mount: Half-inch
•
Replacement stylus: AT-VMN95C
•
Accessories included: Two 11 mm installation screws, two 8 mm installation screws, two washers
•
Dimensions: 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
•
Weight: 15.5 g (0.55 oz)
