ART DJ PRE II Phono Preamp with RIAA Equalization

ART
Part #245-876

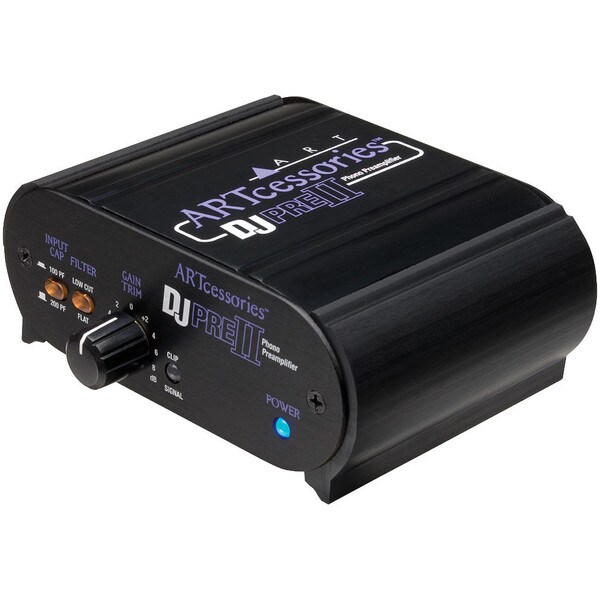

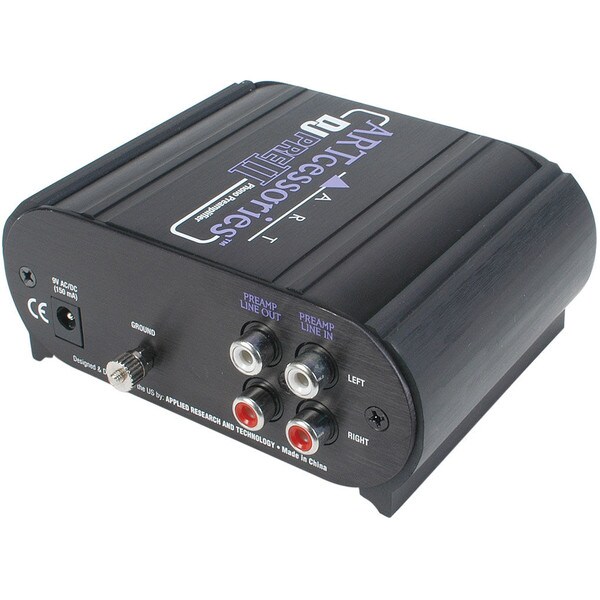

ART DJ PRE II Phono Preamp with RIAA Equalization

ART
Part #245-876
Model: DJ PRE II
If you need to amplify and EQ your vinyl records to interface with your audio workstation, sound card, home stereo system or playback monitor system, the DeeJayPRE II gives you flawless audio reproduction in a rugged and reliable package.
Key Features
  • Connects a turntable to any receiver, mixer, or soundcard
  • RIAA equalization
  • Selectable input capacitance for optimum cartridge performance
  • Dual RCA-type inputs and outputs
  • Ground terminal
  • Switchable low-cut (rumble) filter
  • Power supply included
Similar items that may interest you:
See all items in Phono Preamps
Your Price: $65.99
MSRP: $79.99
Save $14.00 (18%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ART DJ PRE II Phono Preamp with RIAA Equalization

The DJ PRE II (formerly named the "Phono MicroPRE") acts as an interface between your turntable and your audio recording / playback system. The analog input capacitance can be switched between 100pF and 200pF to optimize your phono cartridge response. A switchable low cut filter removes turntable rumble while leaving the audio pristine. The front gain trim control and signal/clip LED allow you to optimize the preamp’s gain for a wide range of input sources. The built-in low noise phono preamp circuitry is highly accurate and precisely conforms to the RIAA standard. The line output jacks are low impedance and can be used with any sound card.

Housed in an all aluminum black anodized case, the DJ PRE II can be powered by a wide variety of external supplies. If you need to amplify and EQ your vinyl records to interface with your audio workstation, sound card, home stereo system or main monitor system, the DJ PRE II gives you flawless audio reproduction in a rugged and reliable package.

Specifications: • Frequency response: 10 Hz -50 kHz, +/-0.5 dB • THD: 0.01% Typical @ 1 kHz • Hum and noise: >90 dB below clipping • Input impedance: 47k ohms in parallel with either 100pF or 200pF • Maximum input level: 40m Vrms @1 kHz • Maximum gain: 45 dB @ 1 kHz • Input/Output connections: RCA • Maximum output level: +6 dBu (1.4Vrms) • Filter type/response: Switchable, low cut, -3 dB @ 22 Hz • Power requirements: 7-12VDC or 9-12VAC @ 150mA • Dimensions: 1.75" H x 4.2" W x 3.5" D • Weight: 1.25 lbs.

Product Details

BrandART
ModelDJ PRE II
Part Number245-876
UPC840402016472
Unit of MeasureEach
Weight1.7
