Adire Audio ADKO12D4 Koda 12" Subwoofer

8 Questions, 8 Answers or
Adire Audio
Part #294-150

Adire Audio ADKO12D4 Koda 12" Subwoofer

Adire Audio
Part #294-150
Model: ADKO12D4
8 Questions, 8 Answers or

Adire Audio introduces the Koda subwoofers, bringing XBL2 technology to the masses. The Koda series of subwoofers offer unparalleled displacement for the dollar, using XBL2 motor technology. This allows for a much more linear Bl field throughout the cone travel which results in lower distortion and higher excursion.

Key Features
  • XBL2 technology for increased excursion and lower distortion
  • Y35 grade magnets for better efficiency
  • Progressive roll spiders for better linearity in all enclosure types
  • Non-pressed cone for added stiffness and lighter weight
  • Carbon fiber dust cap for rugged appearance and added stiffness
  • 15mm Xmax and 250 watt power handling for excellent output capability for the price
Your Price: $299.99
+ FREE SHIPPING
MSRP: $349.99
Save $50.00 (14%)
Bulk Pricing

Out of Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

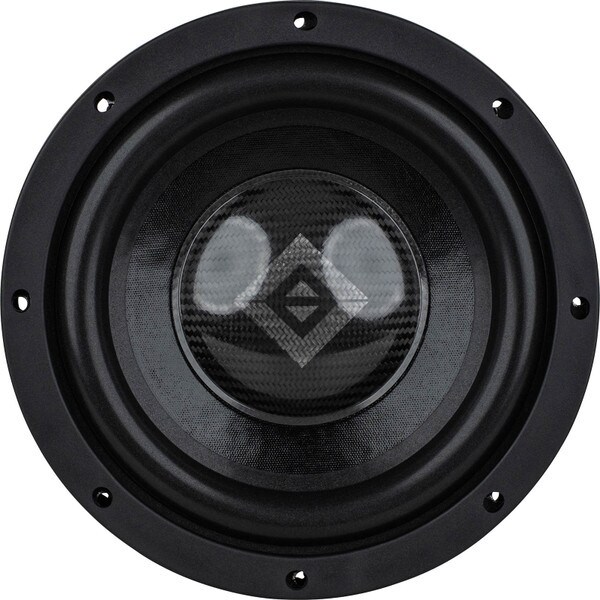

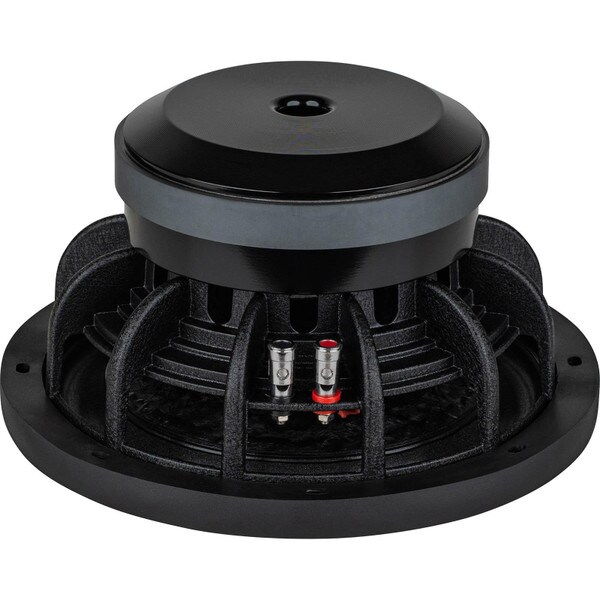

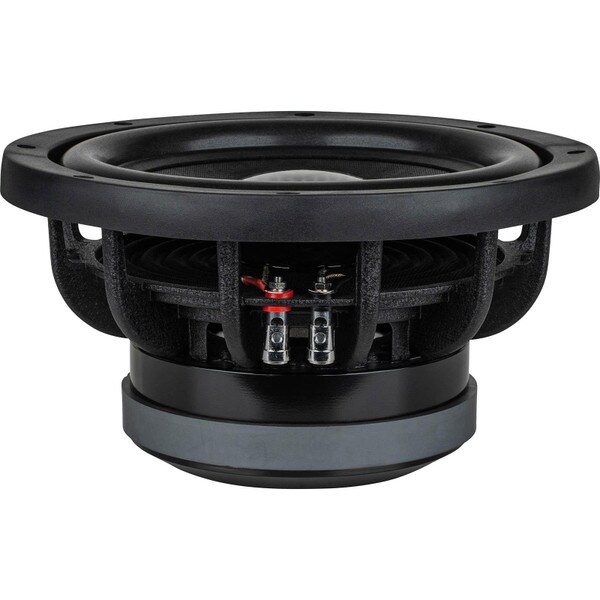

Adire Audio ADKO12D4 Koda 12" Subwoofer

Adire Audio ADKO12D4 Koda 12" XBL2 Subwoofer

Unmatched linearity and low distortion and at unbelievable price

The Koda series is back and better than ever for 2023! Adire Audio spent a great deal of time in the design of experiments to further develop our XBL2 enabled woofers bringing what we have learned along the way into our entire flagship XBL2 lineup.

 After countless hours and prototypes we have successfully updated the Koda series which now includes a 250 watt RMS power rating, an in-gap aluminum inductance ring, 2” flat wire copper voice coils, progressive roll spiders and stitched tinsel leads to prevent mechanical noise.

The 2023 Koda features 8awg push pin terminals for easy wiring, non pressed kraft pulp hybrid fiber blend cone body, a multi-layer foam surround and carbon fiber dust cap that keeps the 2023 Koda as rugged as possible for your musical enjoyment for many years to come.

 The addition of the in gap aluminum inductance ring allows the all new 2023 Koda series to dig deep and extend cleaner up into the upper end of the spectrum while not sacrificing any bottom end output.

The utilization of high the grade Y35 magnet keeps motor strength strong and still keeps the 2023 Koda tonally balanced throughout the sonic realm.

The utilization of high the grade Y35 magnet keeps motor strength strong and still keeps the 2023 Koda tonally balanced throughout the sonic realm. The 2023 Koda is definitely an excellent entry for the aspiring audiophile who’s looking to have solid clean output without breaking the bank!

Product Details

BrandAdire Audio
ModelADKO12D4
Part Number294-150
UPC753459716922
Unit of MeasureEach
Weight21.95

Product Specifications

Nominal Diameter12"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Sensitivity86.64dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)29.74Hz
DC Resistance (Re)7.63Ω
Mechanical Q (Qms)4.78
Electromagnetic Q (Qes)0.64
Total Q (Qts)0.57
Compliance Equivalent Volume (Vas)84.16ft³
Mechanical Compliance of Suspension (Cms)0.23mm/N
BL Product (BL)16.81T·m
Diaphragm Mass Inc. Airload (Mms)132.85g
Maximum Linear Excursion (Xmax)15mm
Surface Area of Cone (Sd)506.7cm²

Materials of Construction

Cone MaterialPaper / Glass Fiber
Voice Coil Wire MaterialCopper
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.5"
Baffle Cutout Diameter11.125"
Depth5.625"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F344Hz
Vented Volume3ft³
Vented F327.7Hz
