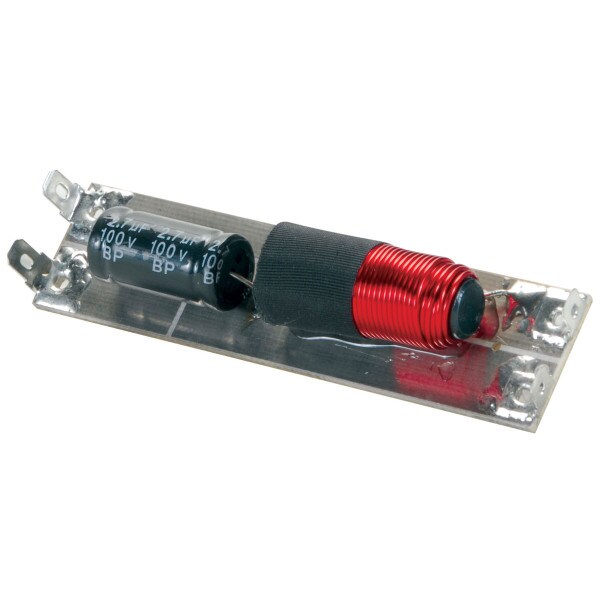

5 kHz High Pass 8 Ohm Crossover
Parts Express
Part #266-474
5 kHz High Pass 8 Ohm Crossover
Parts Express
Part #266-474
Convenient crossovers that work great in any application requiring economical, flexible filtering.
Overview
5 kHz High Pass 8 Ohm Crossover
Convenient crossovers that work great in any application requiring economical, flexible filtering. Also for use in car stereo installations with component speaker systems. Low pass, band pass, and high pass models complement woofers, midranges, and tweeters. Designed to be wired in-line between amp and speaker by using .205" disconnect terminals or soldering. The crossovers' compact size facilitates mounting virtually anywhere you desire.
Specifications: • Approximately 250 watts RMS • Type: High pass • Driver impedance: 8 ohm • Crossover frequency: 5 kHz • Roll off: 12 dB.
Product Details | |
|---|---|
| Brand | Parts Express |
| Part Number | 266-474 |
| UPC | 844632075018 |
| Unit of Measure | Each |
| Weight | 0.2 |
Product Specifications | |
|---|---|
| Configuration | Assembled Board Only |
| Crossover Type | High Pass |
Specifications
Q&A
Reviews
Manuals & Resources
