  • Parts Express 3PDT Stomp Box Foot Switch 9 Pins Latching 4A 125V

Parts Express 3PDT Stomp Box Foot Switch 9 Pins Latching 4A 125V

Parts Express
Part #060-078

Parts Express 3PDT Stomp Box Foot Switch 9 Pins Latching 4A 125V

Parts Express
Part #060-078

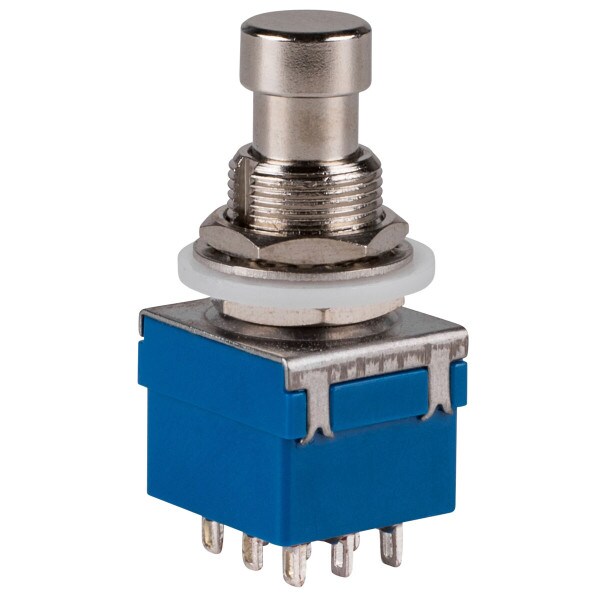

Parts Express 3PDT stomp box foot switch, 9 pins latching type, is an economical solution for all your projects and experiments.
Key Features
  • Heavy duty metal button for durability
Your Price: $3.49
MSRP: $5.99
Save $2.50 (42%)
Bulk Pricing
Quantity:Qty: 1-9 $3.49/ea
Quantity:Qty: 10+$3.09/ea
Order in the next 4 hr 8 min to ship today. Details

3In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Parts Express 3PDT Stomp Box Foot Switch 9 Pins Latching 4A 125V

This triple pole double throw true bypass latching switch can be used for guitar effects pedals, guitar amps and other projects that require a footswitch.

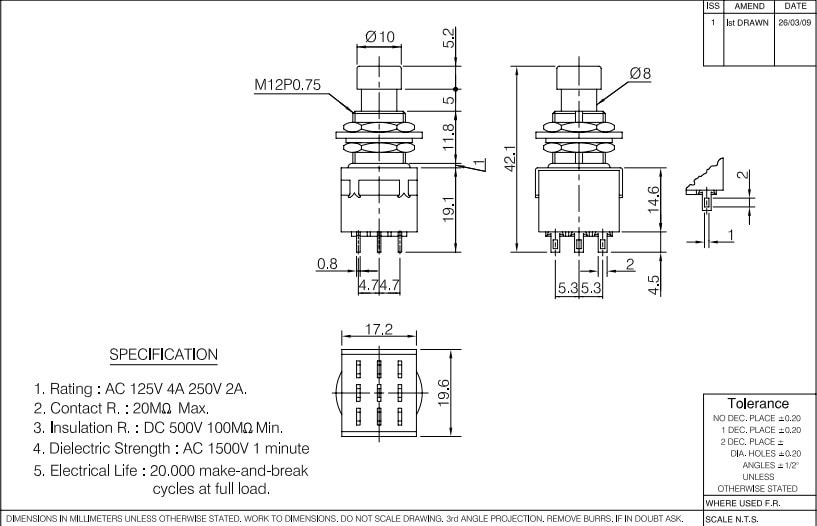

Specification:• Rating: 125 VAC 4A, 250 VAC 2A • Body dimensions: 19.6 mm W x 17.2 mm D x 14.6 mm H • Shaft size: 11.8 mm H x 12 mm D • Terminal size: 2 mm W x 0.8 mm D x 3 mm H.

Product Details

BrandParts Express
Part Number060-078
UPC848864026091
Unit of MeasureEach
Weight0.05

Product Specifications

Circuit3PDT
Contact Rating @ Voltage4A 125 VAC
IlluminationNon-Illuminated
