BUYOUT 2x50W Class D Stereo Amplifier Board with Volume Control

Factory Buyouts
Part #329-699
2 Questions, 3 Answers or

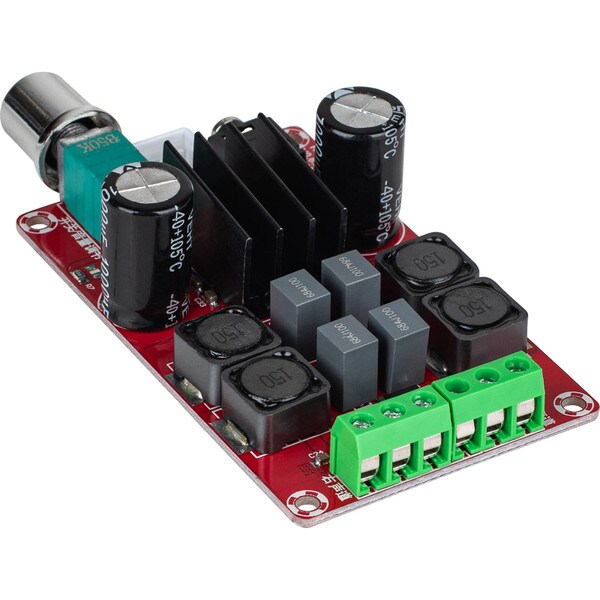

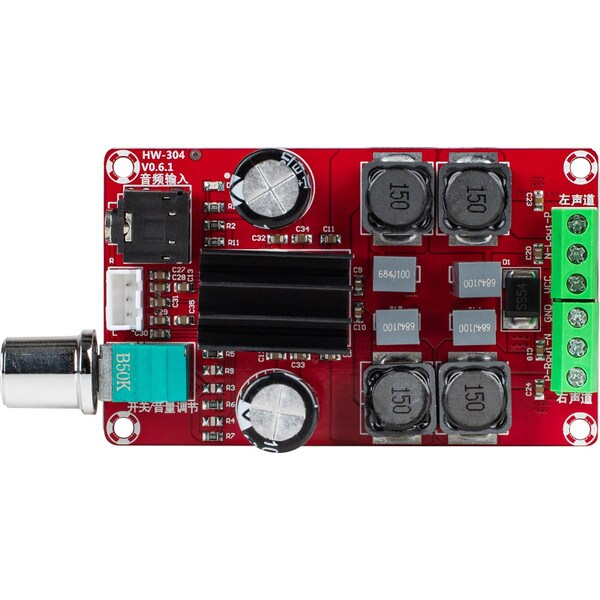

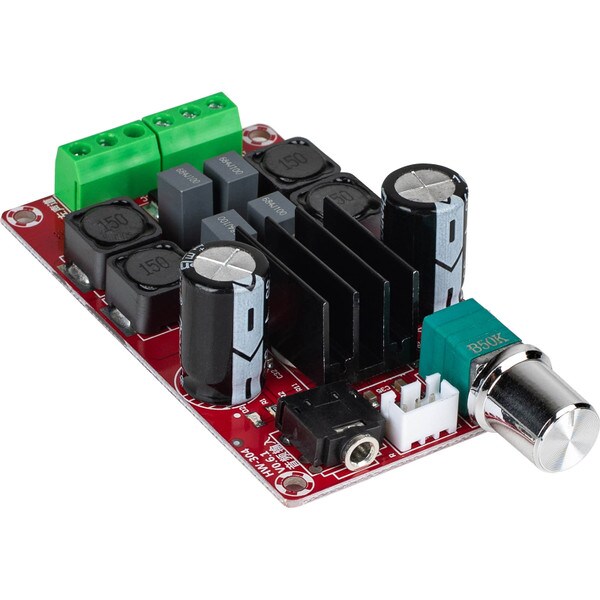

The SC9930E 2 x 50W Class-D stereo audio amplifier features high-quality sound reproduction and volume control with anti-pop on/off switch.

Key Features
  • 3.5 mm audio input jack or 3-pin socket with cable for versatility
  • Wide input voltage from DC 9V to 16V
  • Built-in reverse power supply protection and speaker output short-circuit protection

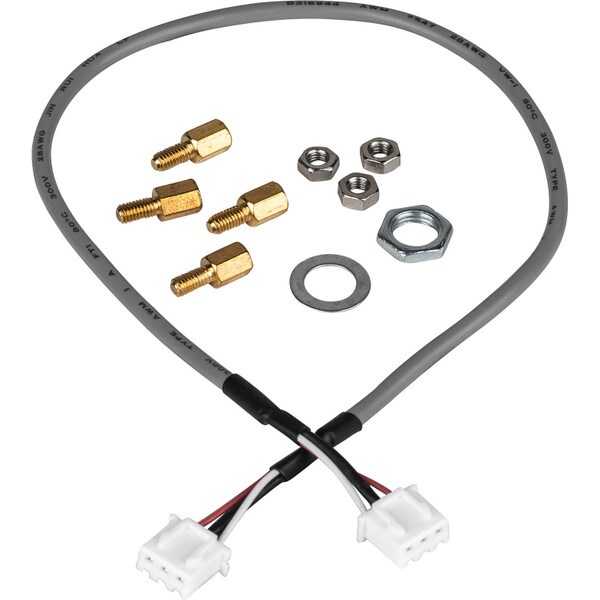

  • Includes shaft nut, washer, four 0.2" (4 mm) standoffs, and knob for a professional looking finish
  • Power and speaker phoenix jacks for quick installation
  • Up to 100W of power for stereo speakers in one small amp board
BUYOUT $9.97
MSRP: $19.99
Save $10.02 (50%)
Bulk Pricing
Quantity:Qty: 1-1 $9.97/ea
Quantity:Qty: 2+$8.97/ea
Order in the next 7 hr 34 min to ship today. Details

15In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

2x50W Class D Stereo Amplifier Board with Volume Control

<p>The board's design, with the high output SC9930E chip, delivers Class D efficiency and high-quality clean sound reproduction. Pause the music and notice no hiss or hum. Turn the amp board on/off, with the included volume control, and observe no popping noise. This board delivers quality sounding music when it's playing, and is quiet as a mouse when the music stops.</p>
<p>Make your own power amp or amplified speaker with this two-channel 100W amplifier board. The board features over-current, thermal, and short circuit protection making it perfect for audio projects. Its compact size makes it ideal for inclusion in OEM products or store displays.</p>

<p><strong>Specifications:</strong> • Input voltage: 9-16 VDC (12-15 VDC for best results) • Chip: SC9930E • Audio Type: Class D • Channel type: Two-channel stereo • Max output power: 2 x 50W @ 4 ohms • Recommended impedance: 4-8 ohms • Inputs: 3.5 mm stereo jack or 3-pin socket • Included input cable: 12" (30 cm) 3-pin female to female • Frequency response: 20 to 20,000 Hz • SNR: 86 dB • PCB size: 3.31" D x 2" W x 0.95" H (84 x 51 x 24 mm) • Shaft size: 0.55" L x 0.24" Dia. (14 x 6 mm) includes 0.11" (3 mm) mounting thread • Mounting hole spacing to center: 3" and 1.72" (76 and 43.5 mm) • Mounting hole Dia.: 0.125" (3.1 mm)</p>

Product Details

BrandParts Express
Part Number329-699
UPC848864075020
Unit of MeasureEach
Weight0.2

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
Special FeaturesVolume / Tone Control
